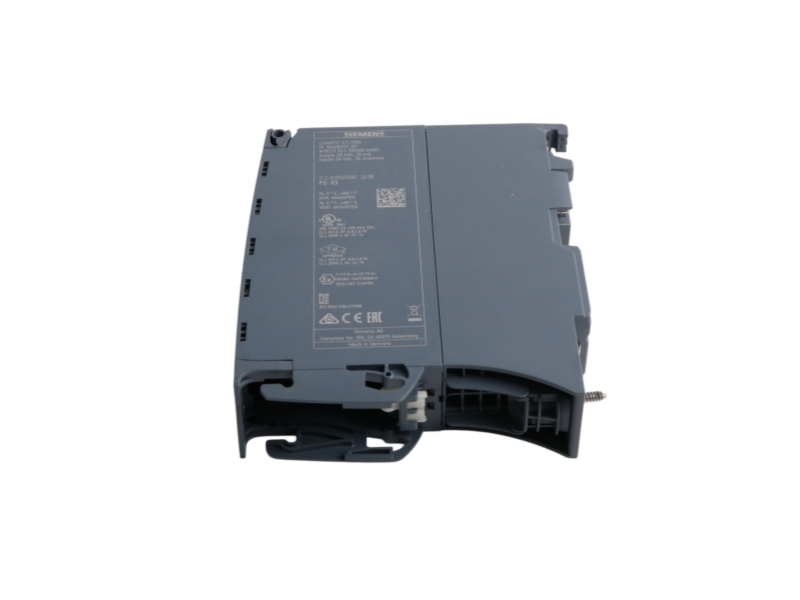

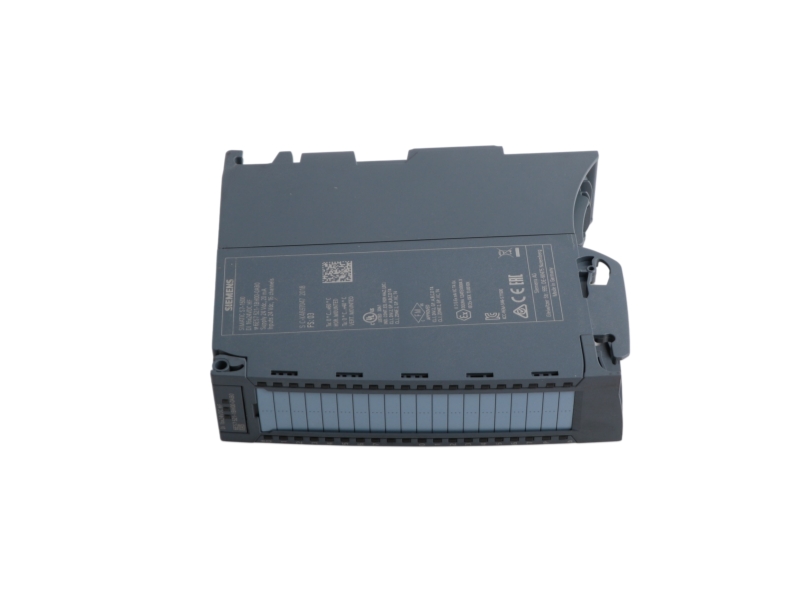

Name: Siemens 6ES7521-1BH00-0AB0 SIMATIC S7-1500 SM 521
Availability: InStock

Siemens 6ES7521-1BH00-0AB0 SIMATIC S7-1500 SM 521

SIEMENSSIMATIC S7-1500 SM 521

6ES7521-1BH00-0AB0

DIGITAL INPUT MODULE

6ES7521-1BH00-0AB0

Siemens 6ES7521-1BH00-0AB0 is an SM 521 high-feature digital input module for fast 24 V DC signal acquisition in SIMATIC S7-1500 systems.

16 DI2 counters0.05 ms

SYSTEM FITHIGH-SPEED DIGITAL INPUT

CHANNELS16 DI

COUNTERS2 counters

ORDER CHECKS7-1500 digital input acquisition

Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Product information

Electrical specifications

Official values for selection and installation

ManufacturerSiemens

Catalog number6ES7521-1BH00-0AB0

Product familySIMATIC S7-1500 SM 521

Input type16 × 24 V DC digital inputs

Input groupingOne group of 16 channels

Input delay0.05–20 ms configurable

Counter channels2

Diagnostic functionsDiagnostics and hardware interrupts

Input characteristicIEC 61131 Type 3

Backplane power1.1 W

Typical power loss4.2 W

Dimensions / weight35 × 147 × 129 mm; 0.277 kg

Firmware versionV2.2.0

Firmware updatePossible

I&M dataI&M0 to I&M3

Isochronous modeYes

Prioritized startupYes

TIA Portal versionV13 SP1 / –

Digital inputs parameterizableYes

Reverse-polarity protectionYes

Applications & integration

Where the configuration delivers value

01 / MACHINE INPUTS

Fast sensor capture

Use 24 V DC channels for fast machine-state acquisition.

02 / COUNTER TASKS

Pulse counting

Apply the counter functions to pulse and frequency monitoring.

03 / DIAGNOSTICS

Service-ready I/O

Review wiring and diagnostic behavior before S7-1500 integration.

Frequently asked questions

Model-specific answers for engineers and buyers

How should 6ES7521-1BH00-0AB0 channels be wired?

The module provides one group of 16 24 V DC inputs; wire each field signal to the assigned channel and its reference.

What makes 6ES7521-1BH00-0AB0 suitable for fast signals?

Its configurable 0.05–20 ms input delay and two counter channels support time-critical acquisition.

Which controller family accepts 6ES7521-1BH00-0AB0?

It is an SM 521 digital input module for SIMATIC S7-1500 stations, including the stated HF configuration.

Can 6ES7521-1BH00-0AB0 report field faults?

Yes. Siemens lists diagnostic functions and hardware interrupts for the input module.

What must be checked before replacing 6ES7521-1BH00-0AB0?

Confirm the S7-1500 station layout, 24 V DC wiring, channel assignment and required delay setting.

What should accompany a 6ES7521-1BH00-0AB0 quotation request?

Send the nameplate, station CPU, quantity, required delivery country and any existing wiring or diagnostics notes.
