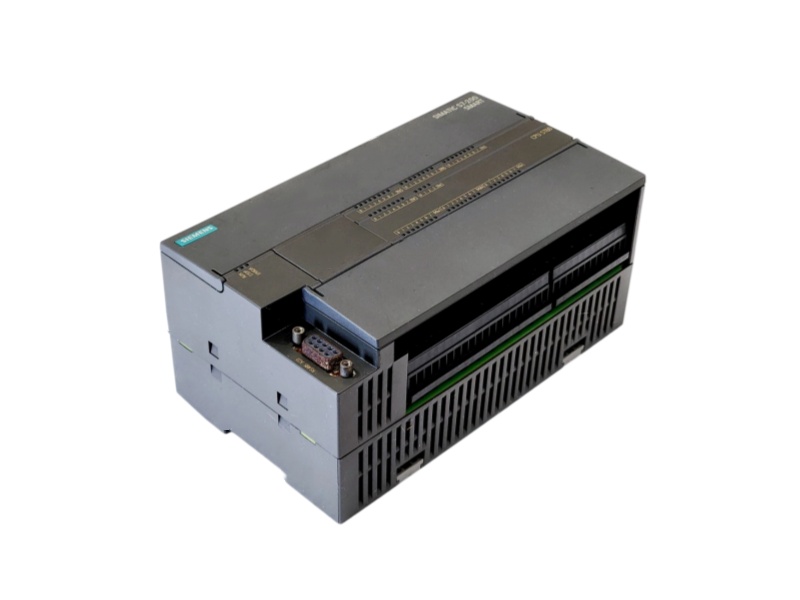

6ES7288-1ST60-0AA0 front view

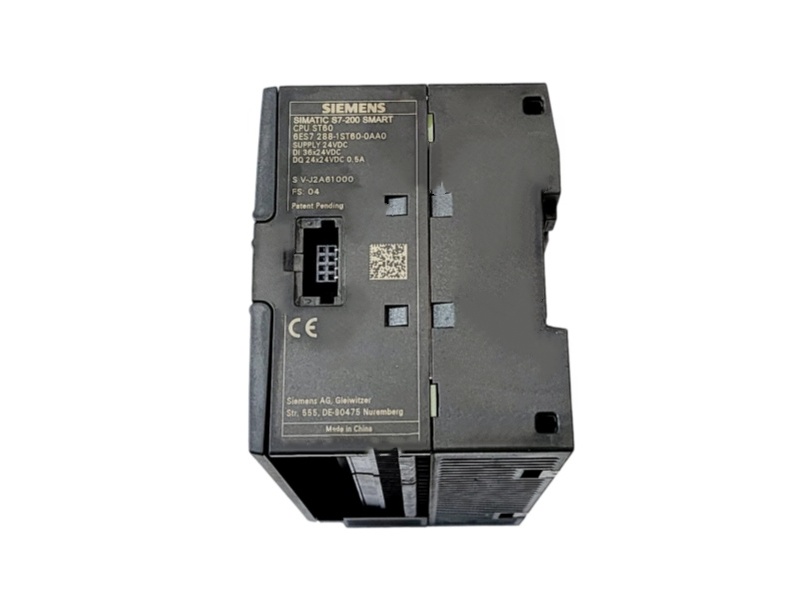

6ES7288-1ST60-0AA0 side view
6ES7288-1ST60-0AA0 product detail

Siemens 6ES7288-1ST60-0AA0 SIMATIC S7-200 SMART CPU ST60

SIEMENS / CPU MODULEOFFICIAL DATA

6ES7288-1ST60-0AA0

Siemens 6ES7288-1ST60-0AA0 integrates DC I/O, Ethernet, RS-485 communication, and high-speed pulse control for compact automation.

✓Brand New Original
✓Fast Delivery
PRODUCT ENQUIRYInquire Now↗
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6ES7288-1ST60-0AA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL CPU DATA

Controller, I/O & communication profile

Siemens catalog values organized for power, memory, onboard signals, networking and installation review.

CPU designationCPU ST60 DC/DC/DC
Rated supply24 VDC
Permissible supply range20.4 to 28.8 VDC
Maximum input current710 mA at 24 VDC
Maximum inrush current11.5 A at 28.8 V
Maximum power loss20 W
Program memory30 KB
User data memory20 KB
Optional memory cardmicroSDHC
Bit operation time150 ns typical
Word operation time1.2 µs typical
Floating-point operation time3.6 µs typical
Integrated digital inputs36
Technological inputs6 high-speed counter inputs
Standard input filter0.2 to 12.8 ms, configurable
Integrated digital outputs24 transistor outputs
High-speed pulse outputs3 at 100 kHz
Rated output current0.5 A per channel
Industrial Ethernet ports1
Ethernet transmission10/100 Mbit/s with autonegotiation
Serial interfaces1 RS-485
PROFINET device capacityUp to 8 IO devices
PROFINET update time4 ms minimum
PROFINET input area128 bytes per device
RTC backup time7 days
Degree of protectionIP20
Operating temperature0 to 55°C horizontal; 0 to 45°C vertical
Storage and transport temperature-40 to 70°C
Operating humidityUp to 95%, non-condensing
Installation altitude-1000 to 2000 m
Memory typeDDR with Flash and RAM
Shielded input cable lengthMaximum 500 m; 50 m for HSC
Unshielded input cable lengthMaximum 300 m
Product dimensions175 x 100 x 81 mm
Approximate weight528.2 g
Engineering softwareSTEP 7 Micro/WIN SMART
02
FROM LOGIC TO MACHINE

Control resources & production roles

Integrated logic, motion-oriented signals, networking and expansion planning.

A

Execute

Run cyclic PLC logic and deterministic machine sequences.

B

Count

Capture fast events and encoder-related pulse trains.

C

Position

Generate high-speed transistor pulse commands for suitable axes.

D

Connect

Link engineering, PROFINET devices and serial equipment.

03
PURCHASING CLARITY

6ES7288-1ST60-0AA0 FAQ

Decision-ready guidance for CPU matching, commissioning and replacement planning.

Q01

What must match before replacing Siemens 6ES7288-1ST60-0AA0?

Compare the Micro/WIN SMART release, firmware, symbol allocation, onboard I/O addresses, expansion layout and communications configuration before migration.

Q02

When is fast control useful with Siemens 6ES7288-1ST60-0AA0?

Choose this CPU when the application needs onboard event counting or pulse-based positioning rather than only standard cyclic digital control.

Q03

How should availability for Siemens 6ES7288-1ST60-0AA0 be verified?

Request confirmation of condition, firmware, manufacturing label, available quantity and dispatch date because a catalog record is not a stock commitment.

Q04

Why do the outputs of Siemens 6ES7288-1ST60-0AA0 need protection?

The transistor channels require a field-protection and suppression plan appropriate to the connected loads; the CPU order number alone does not validate the circuit.

Q05

Which manuals should be used for Siemens 6ES7288-1ST60-0AA0?

Use the Siemens product data and the applicable S7-200 SMART system manual, then match the instructions to the installed firmware and expansion hardware.

Q06

What details support a quotation for Siemens 6ES7288-1ST60-0AA0?

Send clear front and side nameplate photos, firmware information, the I/O expansion list, required condition, quantity, destination and shutdown deadline.
