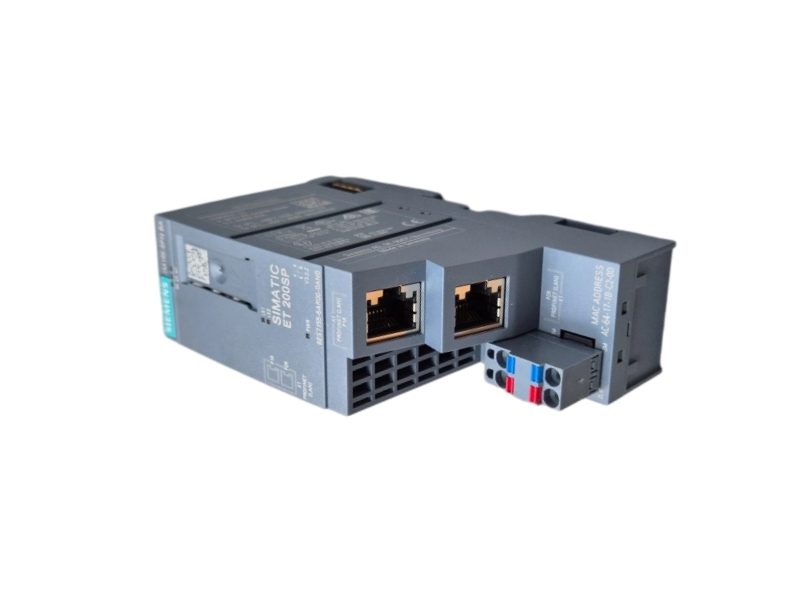

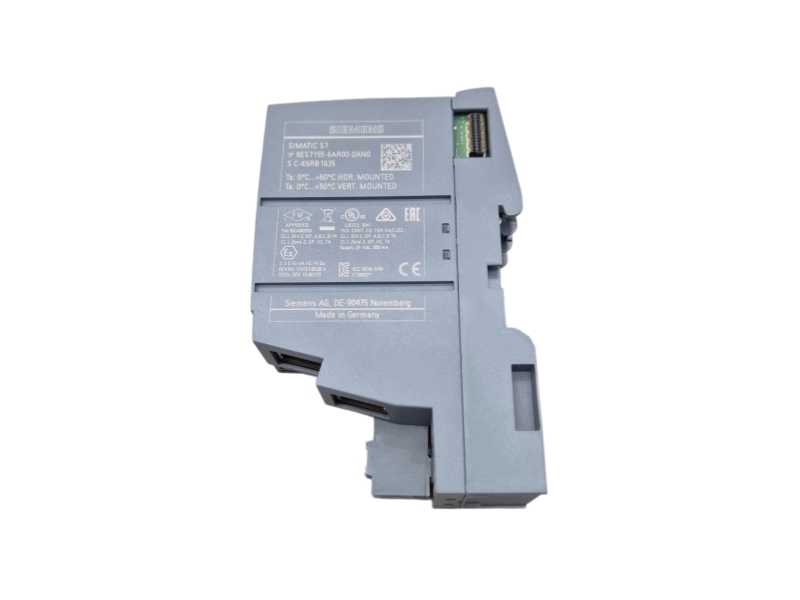

Name: Siemens 6ES7155-6AR00-0AN0 SIMATIC ET 200SP Interface Module
Availability: InStock

Siemens 6ES7155-6AR00-0AN0 SIMATIC ET 200SP Interface Module

SIEMENS ET 200SP NETWORKOFFICIAL DATA

6ES7155-6AR00-0AN0

Siemens 6ES7155-6AR00-0AN0 is the SIMATIC ET 200SP IM 155-6 PN Basic interface module for up to twelve I/O modules, with two integrated RJ45 PROFINET ports and server module.

Brand New Original One Year Warranty Fast Delivery

PROFINET / BASIC

Compact distributed I/O station interface

12I/O MODULES

2RJ45 PORTS

32 byteSTATION I/O

24 VDCSUPPLY

OFFICIAL SUCCESSOR6ES7155-6AR01-0AN0

PRODUCT ENQUIRYInquire Nowab@mooreplc.com

OFFICIAL SIEMENS DATA

PROFINET, engineering & station limits

Verified Siemens supply, communication, configuration, environmental, mechanical and lifecycle data.

Product designationIM 155-6 PN BA

ET 200SP modulesMaximum 12

PROFINET interfaces1 interface; 2-port integrated switch

Connector2 × RJ45

Station address space32 bytes input and 32 bytes output

Module address spaceMaximum 32 bytes per input/output

TIA Portal integrationSTEP 7 V13 SP1 or later

Classic STEP 7 integrationV5.5 SP4 or later

GSDML revisionV2.31 in current data sheet

Nominal supply24 VDC

Permissible supply range19.2 to 28.8 VDC

Maximum current consumption300 mA

Voltage-failure ride-through5 ms

Typical power loss1.8 W

Firmware updateSupported

Identification dataI&M0 to I&M3

Isochronous operationNot supported

Hot swappingOne module at a time

Dimensions35 × 117 × 74 mm

Net weight0.156 kg

Horizontal operating temperature-30 to 60°C

Vertical operating temperature-30 to 50°C

Maximum installation altitude5000 m; restrictions above 2000 m

Commodity code85176200

Official dimensions and weight are shown only where the reviewed manufacturer material explicitly states them.

STATION ARCHITECTURE

PROFINET remote-I/O integration

A station-level view of network entry, module addressing, engineering configuration and lifecycle migration.

ET 200SP DATA ROUTE

STAGE 01

Connect PROFINET

Use the two-port interface to place the station in the planned industrial Ethernet topology.

STAGE 02

Assemble station

Arrange supported ET 200SP modules and finish the rack with the included server module.

STAGE 03

Configure device

Create the station in STEP 7 or import the matching GSDML definition.

STAGE 04

Commission diagnostics

Assign the device, check module status and validate PLC input/output exchange.

SYSTEM USES

Compact machine I/O

Concentrate a limited number of ET 200SP modules near sensors and actuators.

PROFINET field station

Connect distributed signals to a Siemens or compatible PROFINET controller.

Brownfield maintenance

Keep an existing Basic station operational while planning migration to the official successor.

MIGRATION CHECKPOINTS

MODULE COUNT

Keep the legacy station within its twelve-module limit during like-for-like maintenance.

SOFTWARE

Open the project in an engineering version that supports the installed interface firmware.

SUCCESSOR

Review security class, firmware and module-count differences before using AR01.

TOPOLOGY

Preserve device name, IP plan, port connections and diagnostic expectations.

BUYER DECISION SUPPORT

Common Questions About 6ES7155-6AR00-0AN0

Answers for station capacity, engineering tools, live maintenance, lifecycle transition, successor fit and official records.

How large may an ET 200SP station be when headed by Siemens 6ES7155-6AR00-0AN0?

Siemens limits this Basic interface to twelve operable ET 200SP I/O modules; ET 200AL expansion is not supported by this article.

Which engineering paths recognize Siemens 6ES7155-6AR00-0AN0 in an existing project?

The official documentation lists STEP 7 TIA Portal V13 SP1 or later, classic STEP 7 V5.5 SP4 or later, and a matching PROFINET GSDML route.

Can a technician exchange several I/O modules live behind Siemens 6ES7155-6AR00-0AN0?

The technical data allows single hot swapping, not multiple simultaneous module replacement. Follow the ET 200SP service procedure and project diagnostics.

What lifecycle message does Siemens publish for Siemens 6ES7155-6AR00-0AN0?

Siemens marks the article PM400 with phase-out announced from 1 March 2025 and lists a successor product. Confirm remaining supply and repair options when quoting.

Is Siemens 6ES7155-6AR01-0AN0 a no-review swap for Siemens 6ES7155-6AR00-0AN0?

It is the official successor, but the newer article supports a different maximum module count and current PROFINET security behavior. Check project compatibility, firmware and station acceptance before replacement.

Which Siemens records should be bundled with a Siemens 6ES7155-6AR00-0AN0 sourcing request?

Include the station module list, hardware functional status, firmware, STEP 7 version, topology, server-module requirement, quantity and destination, and request the Siemens data sheet and interface manual.
