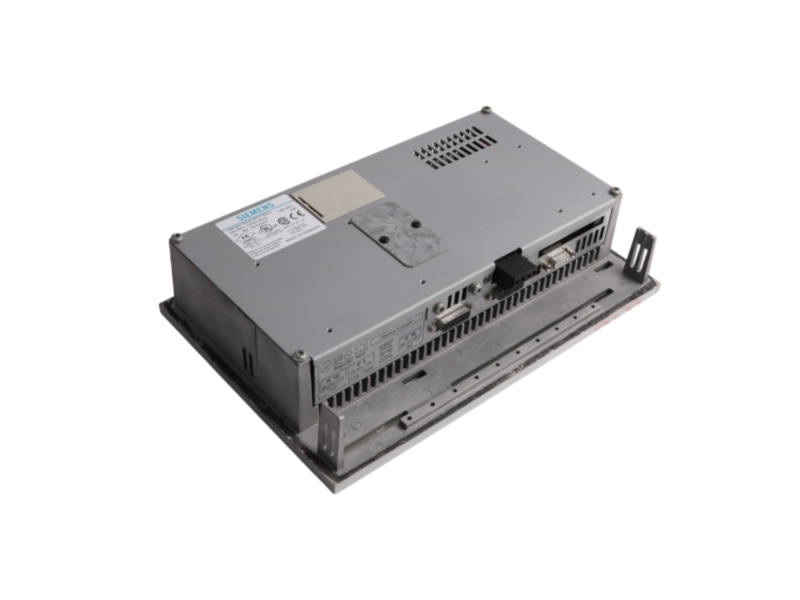

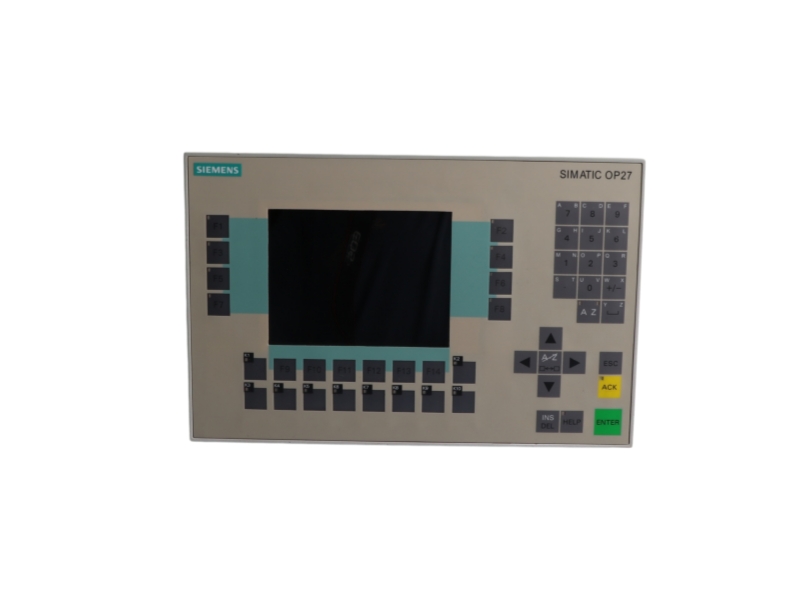

Name: Siemens 6AV3627-1JK00-0AX0 SIMATIC HMI OP27 Operator Panel
Availability: InStock

VERIFIED PRODUCT DATA

Product specifications

Official Siemens OP27 display, keypad, memory, power, environmental and lifecycle data for 6AV3627-1JK00-0AX0.

PARAMETEROFFICIAL VALUEPARAMETEROFFICIAL VALUE

Product designationSIMATIC HMI OP27Battery-backed SRAM128 kB

Display technologySTN monochrome LCDRated supply24 VDC

Display gray levels8Permissible supply range18 to 30 VDC

Screen diagonal5.7 inTypical current at 24 VApprox. 0.3 A

Display resolution320 x 240 pixelsFront protectionIP65

Active display area115 x 86 mmRear protectionIP20

Control methodMembrane keypadHousing size212 x 156 x 69 mm

System keys24 system keysMounting depth65 mm

Configurable function keys24 configurable keysPanel cutout203 +1 x 147 +1 mm

Function keys with LEDs18Operating temperature0 to 50°C vertical

Softkeys14Storage / transport temperature-20 to 60°C

Touch screenNoOperating humidityUp to 95%, non-condensing

Processor class80486Net weight1.888 kg

Processor clock33 MHzCommodity code85371099

Flash memory1 MBCountry of originGermany

DRAM2 MBLifecycleDeleted without replacement

Siemens lists a net weight of 1.888 kg for the order number; the OP27 manual describes 212 x 156 x 69 mm housing dimensions for this device class.

02FUNCTION
& APPLICATION

Legacy HMI retention and migration

Protect the ProTool source, communication path, mechanical fit and operator workflow before replacing the panel.

01 / BACKUP

Secure the engineering project

Locate the original ProTool source and document passwords, drivers, PLC addresses, recipes and operator-language requirements before removing the panel.

02 / CONNECTION

Trace every interface

Record serial or fieldbus wiring, printer links and transfer method so a repaired or replacement panel can communicate with the installed controller.

03 / MODERNIZE

Rebuild the operator workflow

For migration, recreate screens, messages and key actions on a supported HMI while preserving the cabinet cutout and machine validation plan.

PROJECT PLANNING CHECKPOINTS

PROJECT

Confirm that an editable ProTool source exists; an uploaded runtime may not be recoverable.

PROTOCOL

Identify the exact PLC driver, network address and interface mode.

MECHANICAL

Measure cutout, depth, gasket and connector clearance before selecting a new panel.

OPERATION

Document every hard-key function and alarm acknowledgement sequence for migration testing.

OBSOLESCENCE NOTE

Siemens states that this OP27 article was deleted without replacement; repair or engineered migration must be evaluated per machine.

TECHNICAL & ORDER SUPPORT

Product FAQ & Buying Guide

Find practical answers for purchasing, compatibility, documentation and replacement planning.

Is Siemens 6AV3627-1JK00-0AX0 a touch panel or a key-operated HMI?

It is the monochrome OP27 operator panel with membrane system and function keys; Siemens does not designate this order number as a touch-screen model.

Which project asset is most important before changing Siemens 6AV3627-1JK00-0AX0?

The editable ProTool engineering project is critical because it contains the screen objects, PLC tags, messages, recipes, languages and communication settings needed for recovery or migration.

How was Siemens 6AV3627-1JK00-0AX0 used on legacy production equipment?

It provided local process visualization, alarms, setpoint entry and physical-key control while communicating with the configured PLC through the supported OP27 interface drivers.

What does the Siemens lifecycle record mean for Siemens 6AV3627-1JK00-0AX0 procurement?

The article was deleted without an OEM replacement, so sourcing is typically limited to verified spares, repair services or an engineered HMI modernization.

What must an HMI migration retain when replacing Siemens 6AV3627-1JK00-0AX0?

Preserve tag addressing, alarm logic, recipes, key behavior, user permissions, languages, communications, cabinet fit and the machine's operational acceptance criteria.

Which evidence helps price Siemens 6AV3627-1JK00-0AX0 accurately?

Send front and rear nameplate photos, firmware or startup screen, interface connectors, project availability, failure description, required condition, quantity and destination.
