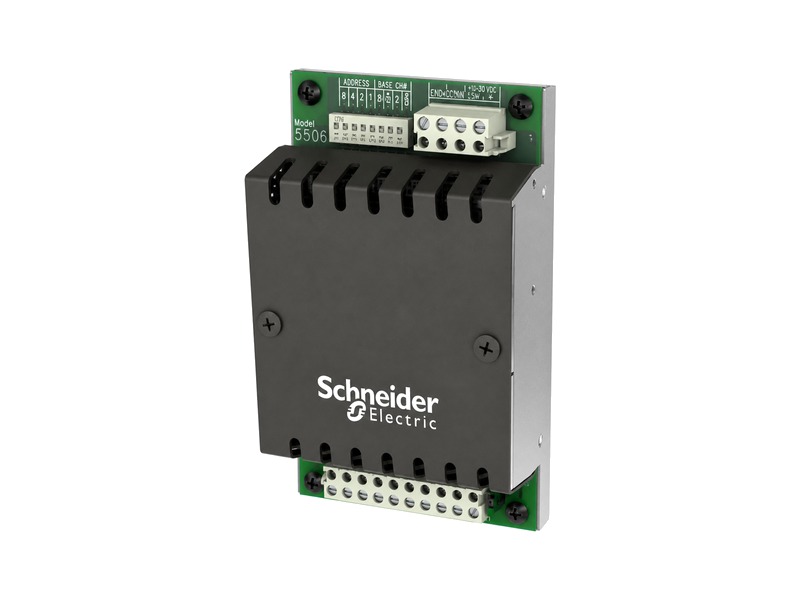

Schneider Electric SCADAPack 5506 TBUX297319 Analog Input Module front view

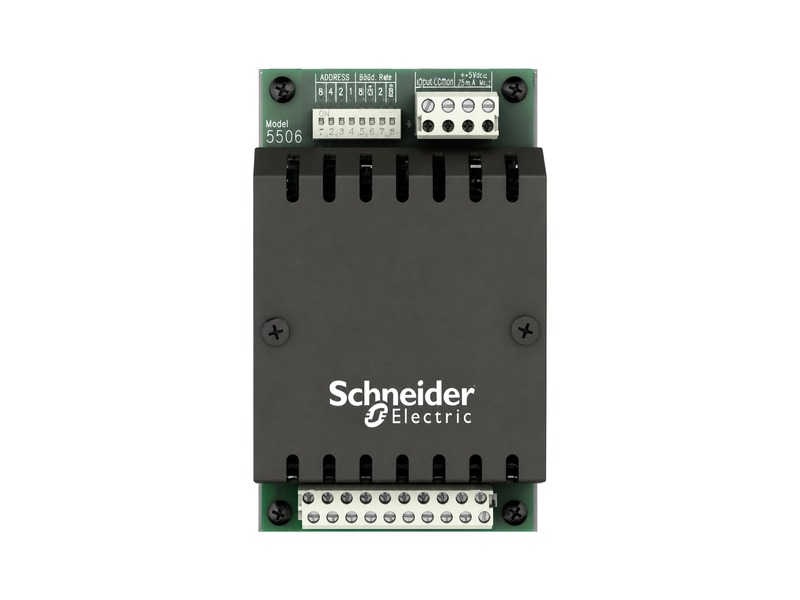

Schneider Electric SCADAPack 5506 TBUX297319 Analog Input Module side view

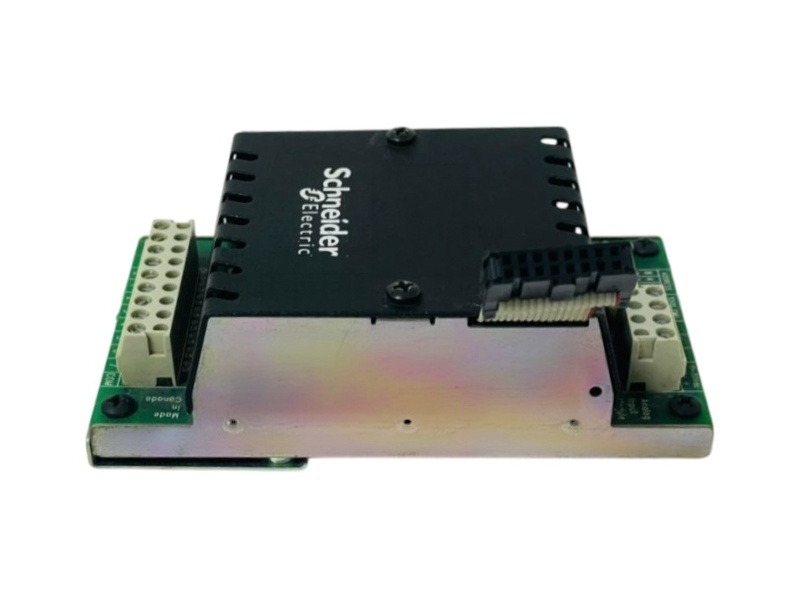

Schneider Electric SCADAPack 5506 TBUX297319 Analog Input Module detail view

Schneider Electric SCADAPack 5506 TBUX297319 Analog Input Module

Application: Eight-channel analog-input expansion module for the matching SCADAPack 5000-Series I/O bus.

Product familySCADAPack 5000-Series I/O
Minimum order1 Piece
Applicable ratings0-20 mA, 4-20 mA, 0-5 V and 1-5 V
LifecycleLifecycle not stated in the cited Schneider Electric documentation
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Schneider Electric
Item number TBUX297319
Country of Origin Confirm from supplied item label
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
TBUX297319
8-CHANNEL ANALOG INPUT

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

TBUX297319 Technical Data

Exact item scope
Input architecture8 single-ended analog inputs
Selectable ranges0-20 mA, 4-20 mA, 0-5 V and 1-5 V
Input resistance250 Ω in current configuration; 66 kΩ in voltage configuration
Conversion resolution15 bits across the 0-5 V and 0-20 mA measurement range
Measurement accuracy±0.1% of full scale at 25 °C; ±0.2% over the temperature range
Isolation500 VAC between inputs and logic supply/chassis
Mechanical envelope74 mm wide × 124 mm high × 45 mm deep
Operating environment-40 to 70 °C; 5% to 95% RH, non-condensing
Model-specific application profile

SCADAPack analog expansion profile

The 5506 expands a compatible SCADAPack station with field analog measurement. Selection depends on the programmed current-or-voltage mode, offset choice and I/O-bus address of the installed module.

Field roleAccepts transmitter and voltage signals for remote monitoring and telemetry
Configuration checkMatch the DIP-switch range, offset and voltage/current mode before replacement
Legacy modeThe hardware can be configured to emulate a 5501 module where the existing design requires it

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise
