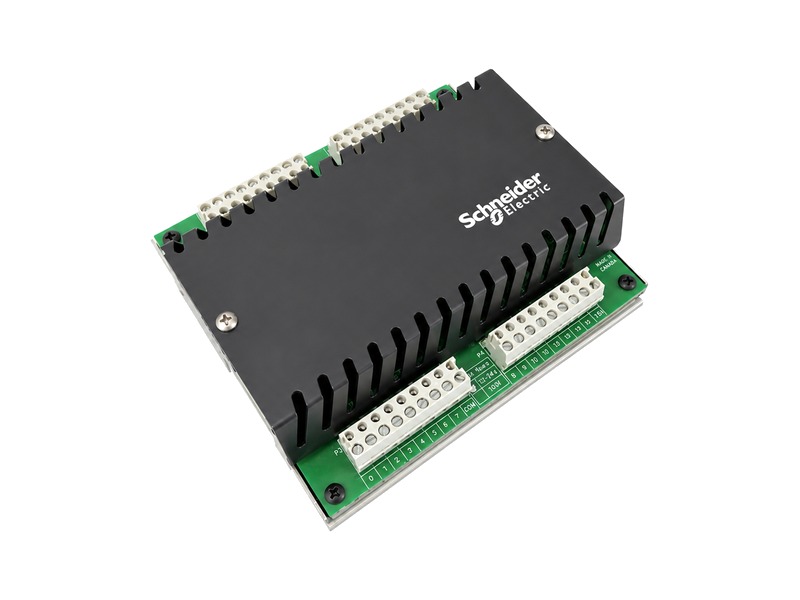

Schneider Electric SCADAPack 5405-24 TBUX297247 Digital Input Module front view

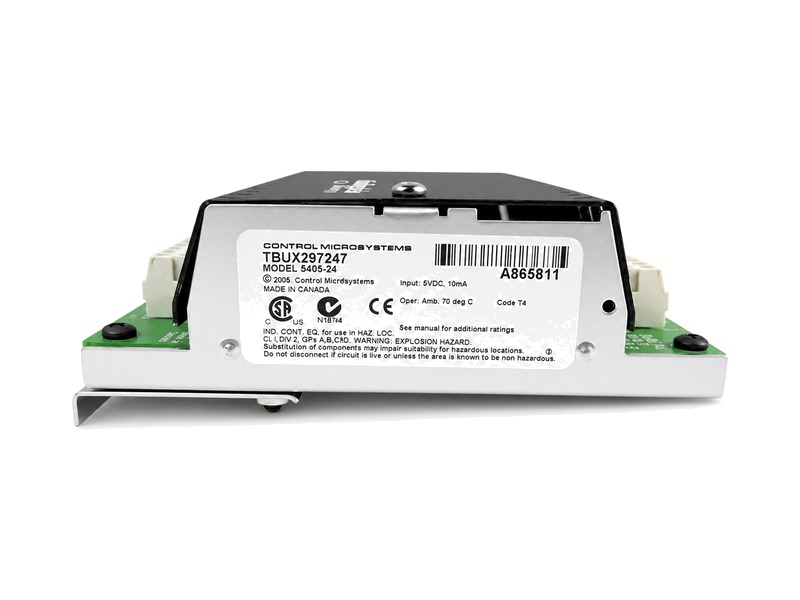

Schneider Electric SCADAPack 5405-24 TBUX297247 Digital Input Module side view
Schneider Electric SCADAPack 5405-24 TBUX297247 Digital Input Module detail view

Schneider Electric SCADAPack 5405-24 TBUX297247 Digital Input Module

Application: Model 5405-24 digital-input expansion identified by Schneider Electric reference TBUX297247.

Product familySCADAPack 5000-Series I/O
Minimum order1 Piece
Applicable ratings32 inputs; 12-24 VDC variant
LifecycleLifecycle not stated in the cited Schneider Electric documentation
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Schneider Electric
Item number TBUX297247
Country of Origin Confirm from supplied item label
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
TBUX297247
32-POINT DIGITAL INPUT

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

TBUX297247 Technical Data

Exact item scope
Exact variant5405-24, Schneider Electric reference TBUX297247
Input capacity32 discrete input points
Published input range12-24 VDC for the TBUX297247 model code
Channel groupingFour isolated groups of eight inputs
Typical input current6.0 mA at 24 VDC on the 24 V range
Logic-to-field isolation500 VAC/DC from chassis and logic ground
Mechanical envelope144 mm wide × 127 mm high × 45 mm deep
Operating environment-40 to 70 °C; 5% to 95% RH, non-condensing
Model-specific application profile

Twenty-four-volt discrete input profile

TBUX297247 is the 5405-24 member of the 5000-Series expansion range. It is selected for low-voltage field-state monitoring, not for the separate 5405-120 ordering variant.

Signal roleMonitors dry-contact or powered discrete field states through the applicable cabinet wiring design
Variant boundaryKeep the -24 designation and full TBUX reference tied to the installed voltage scheme
Address controlConfirm the four address switches and I/O-bus position before exchanging the module

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
