Name: Schneider Electric ASILUFC51 TeSys Ultra AS-i Communication Module
Availability: InStock

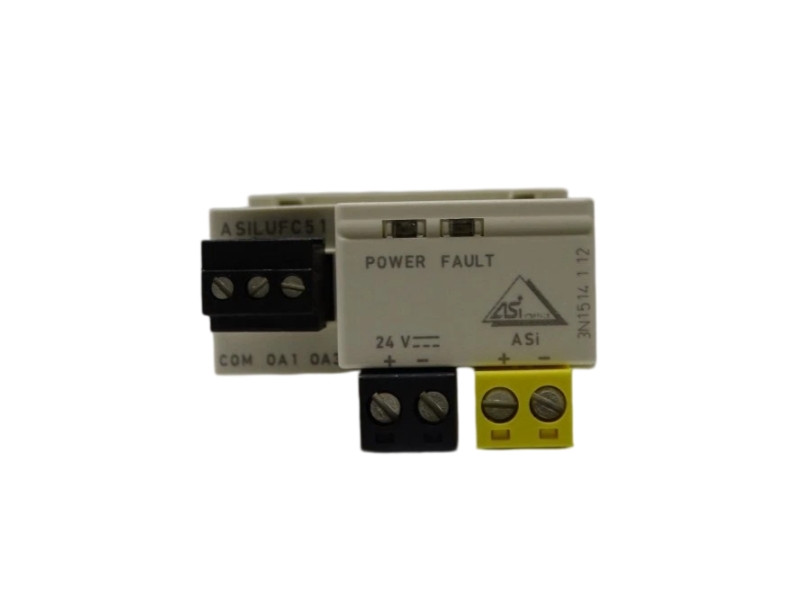

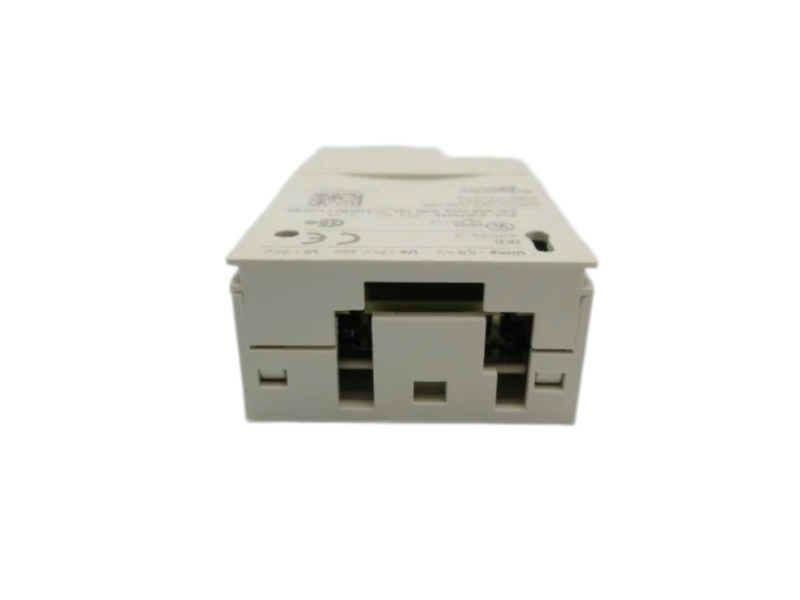

Schneider Electric ASILUFC51 TeSys Ultra AS-i Communication Module

SCHNEIDER TESYS ULTRA / AS-iASILUFC51

EXTENDED COMMUNICATION MODULE

Schneider Electric ASILUFC51 is an AS-Interface communication module linking TeSys Ultra starter-controllers for command exchange, status monitoring, and remote or local motor diagnostics.

AS-iNETWORK

24 VDCAUXILIARY

IP20PROTECTION

● Integrity Supply● One Year Warranty● Fast Delivery

PRODUCT ENQUIRYMatch the base, control unit and AS-i wiring.

Inquire Now →WhatsApp +86 18106909650

LEAD TIME2-3 DAYS

OFFICIAL MODULE DATA

AS-i power, terminal & installation data

Official Schneider AS-Interface electrical limits, connections and TeSys Ultra compatibility requirements.

Product referenceASILUFC51

Auxiliary current limit500 mA, load-dependent

Auxiliary connectorBlack 24 VDC connector

Product rangeTeSys Ultra

Relay output rating0.5 A at 24 V

AS-i / auxiliary conductor range0.2 to 1.5 mm², one rigid or flexible conductor

Module functionExtended AS-i communication module

Output protectionShort-circuit and overload protected

Control / monitor conductor range0.14 to 1.0 mm², one rigid or flexible conductor

Control roleDirect or remote starter-controller control

Protection classIP20

Two-pin connector pitch5.08 mm

Compatible power basesLUB•• and LU2B••

Fast-transient immunity2 kV, IEC/EN 61000-4-4 level 4

Three-pin connector pitch3.81 mm

Required control-unit familyLUC••BL, 24 VDC

Front indicatorsPWR and FAULT LEDs

Terminal tightening torque0.5 to 0.6 N·m

AS-i supply range26.5 to 31.6 V

Module supervisionContinuous self-tests

LUB output cableLU9BN11C

AS-i current, normal25 mA

Remote diagnosticsVia AS-i V2 functions

LU2B output cableLU9MR1C

AS-i current, maximum30 mA

Local diagnosticsASITERV2 or XZMC11 addressing terminal

Auxiliary supply24 VDC ±30%

STACK

Install the communication module in the approved power base before fitting the matching control unit.

ASSEMBLY

SUPPLY

Connect the AS-i network and the separate auxiliary source through their dedicated color-coded paths.

POWER PATH

ADDRESS

Assign and verify the node with the approved addressing terminal and check the network master.

BUS SETUP

DIAGNOSE

Interpret the power and fault indicators together with remote diagnostic information.

STATUS

PROCUREMENT DECISIONS

ASILUFC51 buyer questions

Which TeSys Ultra assemblies are compatible with Schneider Electric ASILUFC51?

Install it in an approved LUB or LU2B power base and use the specified 24 VDC LUC••BL control-unit family; verify the complete starter assembly.

Why does Schneider Electric ASILUFC51 require a separate auxiliary supply?

The AS-i bus and the starter-control output have distinct power requirements, so the module must receive the documented auxiliary 24 VDC source.

How are addressing and status checked on Schneider Electric ASILUFC51?

Use an approved AS-i addressing terminal for node setup and interpret the PWR and FAULT indicators together with network diagnostics.

Can Schneider Electric ASILUFC51 Run, Stop or Reverse data be used as an emergency function?

No. Schneider states that communication data is for non-critical control and monitoring; emergency or safety functions require a separate compliant circuit.

Which connection accessories may be needed for Schneider Electric ASILUFC51?

Use approved AS-i and auxiliary connectors, then select the output-control cable for the installed LUB or LU2B base, or apply the documented direct-wiring method.

What should be confirmed when requesting Schneider Electric ASILUFC51 supply and documentation?

Send the module label, power-base and control-unit references, AS-i architecture, quantity, condition, destination and delivery date, and request user guide 1639093EN.
