Name: B&R X20SO2530 Safe Relay Output Module
Availability: InStock

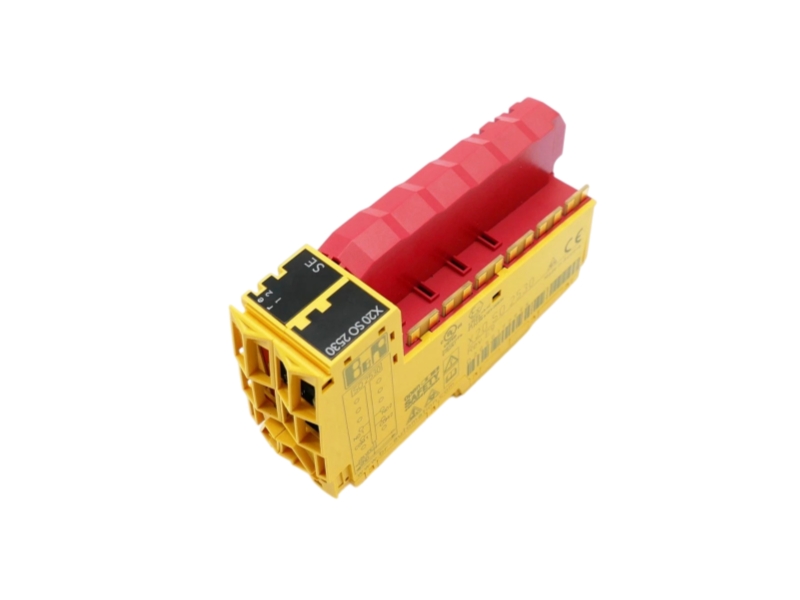

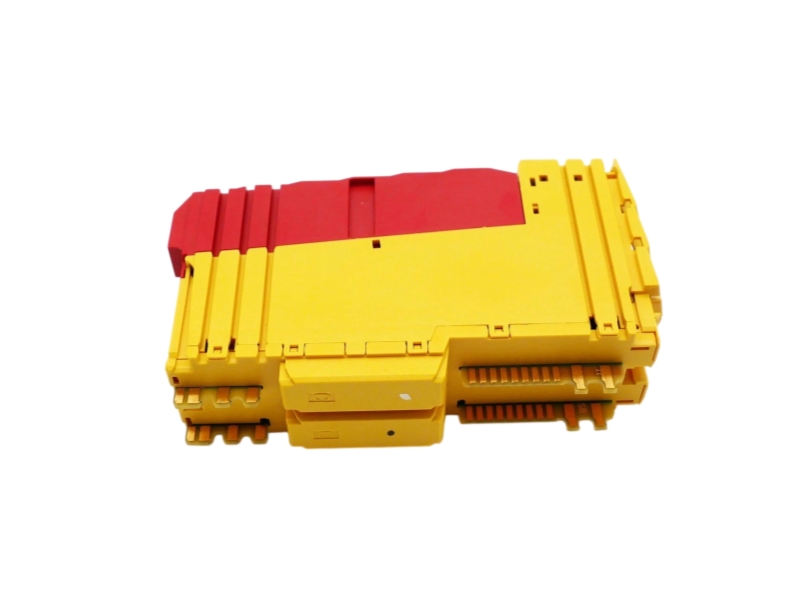

B&R X20SO2530 Safe Relay Output Module

B&R / X20 SAFETYSAFE RELAY OUTPUT

2 ISOLATED NO CONTACTS

X20SO2530

B&R X20SO2530 is a SafeIO relay module with two isolated normally open outputs for 230 VAC or 24 VDC loads in applications up to PL e or SIL 3.

ORDERING NOTEUse the safety-keyed X20TB72 terminal and X20BM33 or X20BM36 bus module; validate output load, external fuse, supply wiring, firmware, response time and project CRC before commissioning.

Brand New Original Fast Delivery Worldwide Shipping

INQUIRE NOW

OFFICIAL SAFEIO DATA

X20SO2530 relay, protection and safety profile

Official B&R output and safety characteristics organized for load, protection, accessory and validation review.

SAFE RELAY OUTPUTS

SAFETY & INSTALLATION

Output quantity2

Functional safetyIEC 61508 / IEC 62061 up to SIL 3

Output technologyRelay, normally open contact

Performance levelISO 13849-1 up to Category 4 / PL e

Channel architectureSingle-channel isolated outputs

Channel-to-bus isolationSafe disconnection of 300 VAC per EN 50178

Switching voltage5 to 24 VDC or 5 to 230 VAC

Channel-to-channel test1350 VAC

Nominal output current5 mA to 6 A

I/O supply24 VDC, -15% / +20%

Switch-on delayLess than 50 ms

Supply protectionIntegrated reverse-polarity protection

Switch-off delayLess than 50 ms at transition 1 to 0

Bus power consumption0.26 W

Maximum inrush current30 A for 20 ms

Internal I/O consumption1.15 W

Contact resistance20 mΩ without terminal block

B&R ID code0xD205

Diagnostic feedbackContact position via positively driven contacts

Module pitch25 +0.2 mm

External protection6 A gL/gG fuse or 1.6 A type-C circuit breaker

Operating temperature0 to 60°C horizontal; 0 to 50°C vertical

Short-circuit withstand1000 A with specified protection

Required terminalX20TB72, 12-pin safety-keyed, 240 VAC, red

USE 01

Switch isolated actuators

Two normally open relay outputs control floating loads without sharing output potential.

USE 02

Supervise contact state

Positively driven feedback contacts let the module evaluate the actual relay position.

USE 03

Meet high safety targets

The module is specified for applications up to SIL 3 and Category 4 / PL e when correctly engineered.

USE 04

Prevent automatic restart

Safe output behavior protects against unintended restart after defined network error conditions.

USE 05

Expose channel diagnostics

LED and software status indicate module operation and the function of each output channel.

USE 06

Integrate keyed hardware

The red safety terminal and matching SafeIO bus base enforce the documented X20 safety assembly.

SAFE OUTPUT VALIDATION

B&R X20SO2530 safety relay FAQ

Practical decision support for responsible SafeLOGIC relay integration planning.

What loads can B&R X20SO2530 switch?

The two normally open relay channels cover 5 to 24 VDC or 5 to 230 VAC loads with a nominal current range from 5 mA to 6 A, subject to the required external protection.

Which keyed accessories are mandatory for B&R X20SO2530?

B&R specifies the red 12-pin X20TB72 safety terminal and either X20BM33 or X20BM36 SafeIO bus module, selected to match the node-number requirement.

Where is B&R X20SO2530 applied in a safety circuit?

It controls floating actuators through isolated relay contacts in engineered safety functions up to PL e or SIL 3.

How is B&R X20SO2530 availability assessed for a safety spare?

The current official page and Safety+ hardware upgrades identify the module, while the quotation verifies hardware/firmware revision, condition and accessory set.

What must be revalidated after replacing B&R X20SO2530?

Validate the safety project and CRC, bus base, red terminal, load voltage/current, fuse, response time, wiring separation, firmware and restart behavior before operation.

Which official resources and order data are needed for B&R X20SO2530?

Request the X20SO2530 data sheet, X20 Safety Release Notes and X20 System User's Manual, then provide module/accessory labels, firmware, project version, load, quantity and destination.
