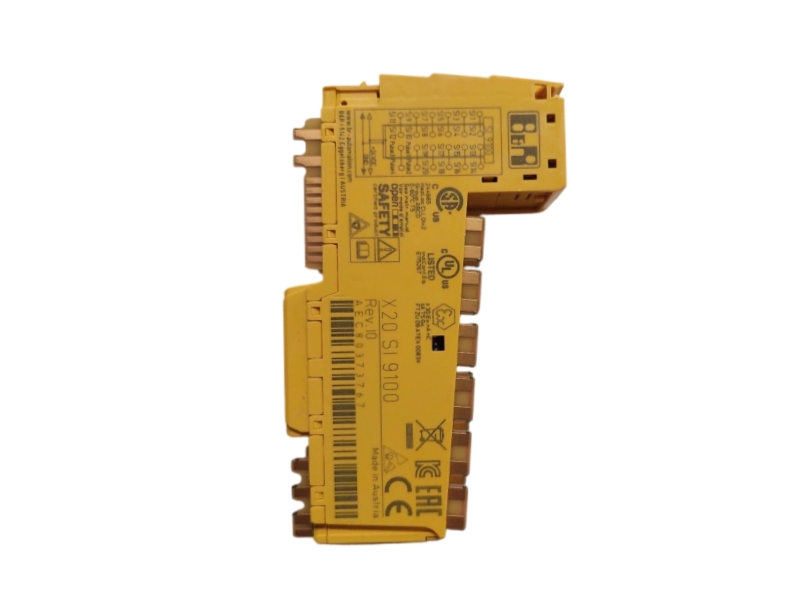

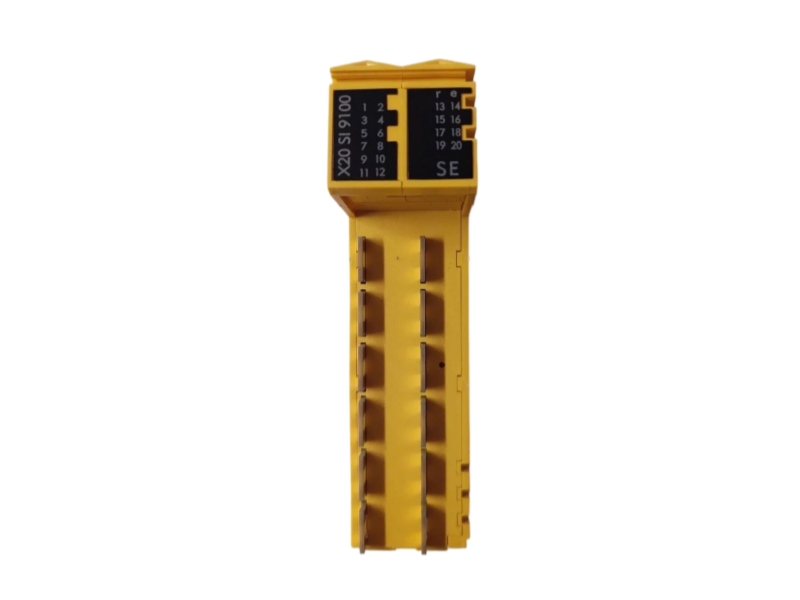

Name: B&R X20SI9100 X20 Safe 20-Channel Digital Input Module
Availability: InStock

B&R X20SI9100 X20 Safe 20-Channel Digital Input Module

B&R / X20 SAFETY

SAFE SENSOR ACQUISITION

PL e / SIL 3

SAFE DIGITAL INPUT / LINE DIAGNOSTICS

X20SI9100

B&R X20SI9100 is a SafeIO module for monitored digital safety sensors, with configurable filtering and pulse-line diagnostics.

MATCH BEFORE ORDERING Order two X20TB52 terminal blocks and an X20BM33 or X20BM36 safety bus module; validate firmware, safety response time, sensor architecture and project CRC.

SAFE INPUTS 20 Type A channels

TEST OUTPUTS 4 pulse channels

SAFETY LEVEL Up to PL e / SIL 3

Brand New Original One Year Warranty Rapid response

INQUIRE NOW

OFFICIAL SAFEIO DATA

X20SI9100 input, diagnostic and safety-integration profile

B&R SafeIO channel architecture, power, isolation and mandatory hardware for safety-project engineering.

SAFE CHANNELSA / 10

01B&R ID code0xAEC8

02Safe digital inputs20 Type A channels

03Pulse outputs4 channels

04Nominal input voltage24 VDC

05Input circuitSink circuit

06Switch-on filteringPer-channel software setting for the ON transition

07Switch-off filteringPer-channel software setting for the OFF transition

08Sensor-line diagnosticsPulse-signal evaluation

09Performance levelUp to PL e per ISO 13849-1

10Safety integrityUp to SIL 3 per IEC 61508 / 62061 / 61511

SYSTEM & INSTALLATIONB / 10

11Bus power consumption0.4 W

12Internal I/O consumption1.6 W

13Channel-to-bus isolationYes

14Channel-to-channel isolationNo

15Standalone operationNot supported

16Required terminal blockTwo X20TB52 safety-keyed blocks

17Compatible safety bus basesX20BM33 or X20BM36

18Horizontal operation0 to 60°C

19Vertical operation0 to 50°C

20Module pitch25 +0.2 mm

FROM SAFETY SENSOR TO SAFE DATA

How X20SI9100 validates discrete safety signals

The signal chain connects sensor wiring, test pulses, channel filtering and certified safety logic.

01SAFETY SENSOR

02TEST-PULSE CHECK

03SAFE INPUT DATA

04SAFETY FUNCTION

FUNCTION 01

Acquire protected switch states

The module receives discrete signals from suitable emergency-stop, guard and other safety devices.

FUNCTION 02

Inject diagnostic pulse patterns

Test outputs support line monitoring when the connected sensor circuit and safety design permit pulse evaluation.

FUNCTION 03

Filter contact transitions

Separate on-delay and off-delay behavior can be tuned to the dynamics of each channel.

FUNCTION 04

Detect wiring discrepancies

The safety firmware evaluates channel timing and pulse behavior to reveal selected circuit faults.

FUNCTION 05

Transfer validated safe data

Accepted channel states are delivered through the SafeIO system to the configured safety application.

FUNCTION 06

Support documented response-time design

Engineering parameters contribute to the complete safety-response calculation and validation record.

BUYER REFERENCE

B&R X20SI9100 buyer FAQ

Practical guidance for confident selection, replacement and purchasing decisions.

Which sensor-circuit architecture should be selected for B&R X20SI9100?

Choose single-channel or paired evaluation according to the machine risk assessment, sensor documentation and SafeDESIGNER configuration, then validate discrepancy behavior.

Which keyed station components are mandatory for B&R X20SI9100?

Use the safety-keyed terminal and bus-module types listed by B&R; standard non-safety X20 bases and terminals are not equivalent substitutes.

Which machine functions can B&R X20SI9100 supervise?

It can acquire compatible emergency-stop contacts, guard switches, light-protection outputs and other discrete safety signals defined by the validated safety design.

Is B&R X20SI9100 discontinued or available for a safety spare inquiry?

B&R maintains current SafeIO data sheets, certificates and hardware packages without a discontinuation notice. Exact hardware and firmware availability are checked during quotation.

Why must firmware and the safety project be checked when replacing B&R X20SI9100?

B&R upgrade notes include filter, pulse-output and mapp Safety changes; the installed release, project CRC, response-time calculation and validation must remain controlled.

What information is required for a B&R X20SI9100 manual and quotation request?

Provide the full nameplate, hardware and firmware revisions, SafeDESIGNER or mapp Safety version, terminal and bus bases, sensor topology, quantity and destination.
