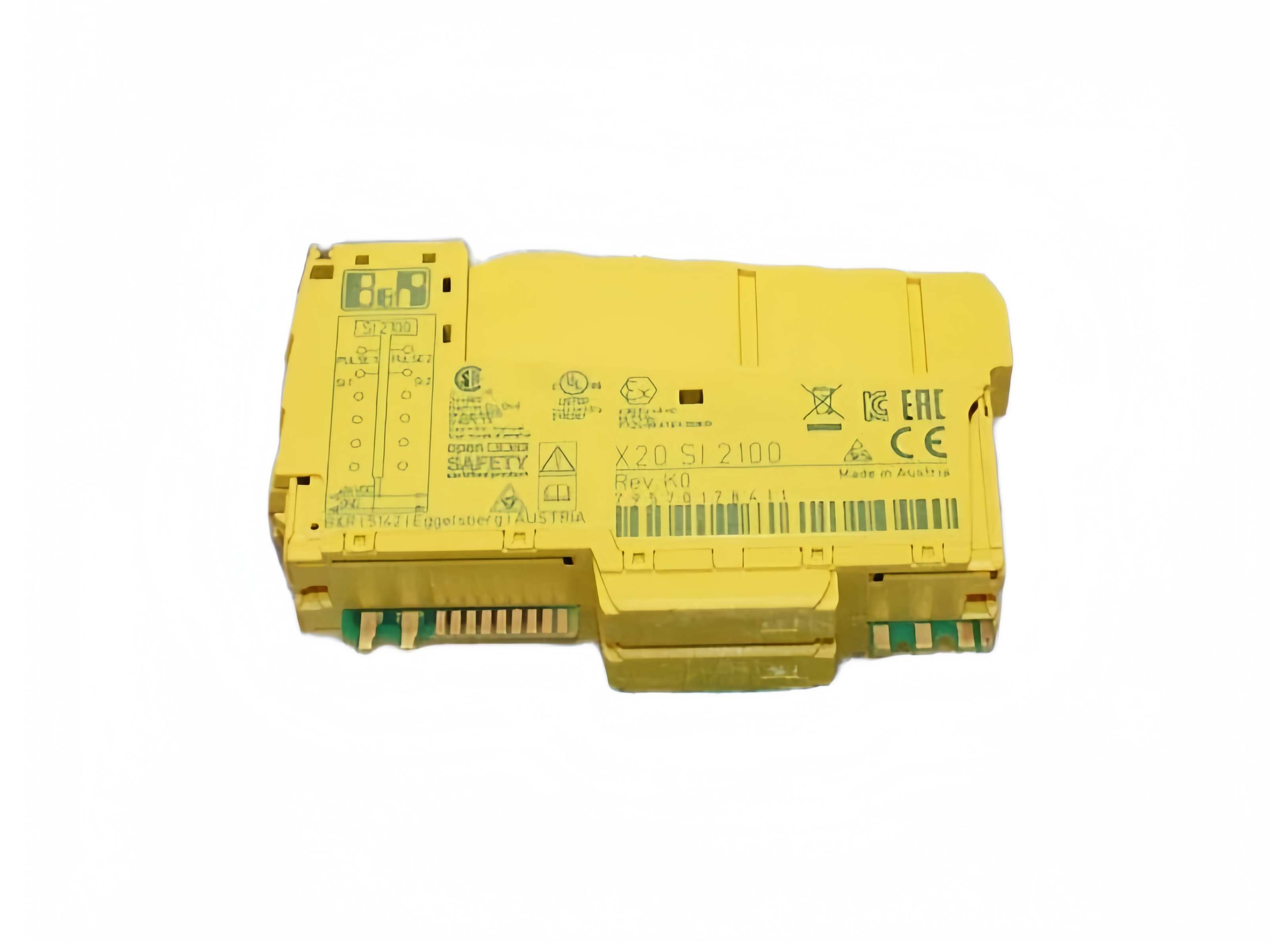

B&R X20SI2100 safe digital input module view 1

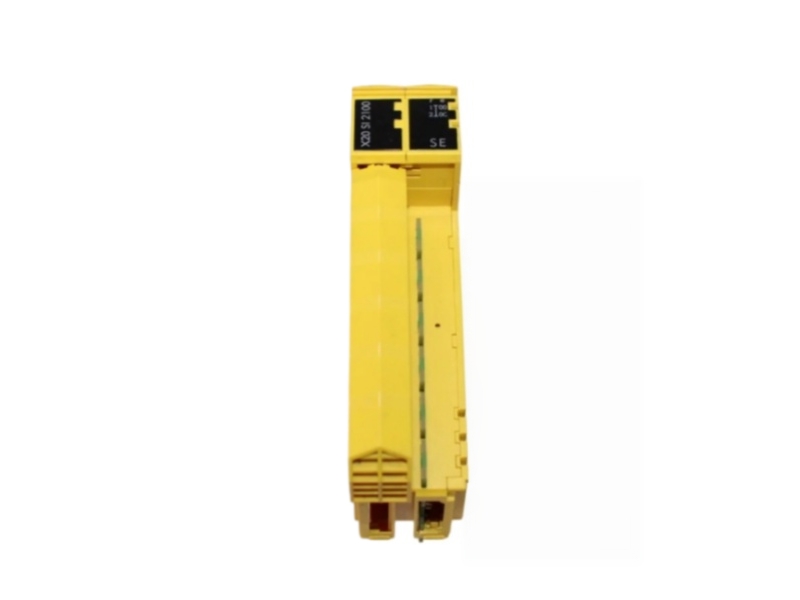

B&R X20SI2100 safe digital input module view 2
B&R X20SI2100 safe digital input module view 3

B&R X20SI2100 X20 Safe Digital Input Module



B&R · X20 SAFE I/O
ENGINEERING PROFILE / 2100SAFE DIGITAL INPUT
TWO-CHANNEL ACQUISITION

X20SI2100

B&R X20SI2100 is a 24 VDC X20 SafeIO module with two Type A safety inputs, two diagnostic pulse outputs and configurable channel filtering for safety functions up to PL e or SIL 3.

2 × TYPE A24 VDCPL e / SIL 3
SIGNAL NOTESafe input monitoring with diagnostic pulses
SENSORPULSE TESTSAFE I/O
MATCH BEFORE ORDERX20BM33 / X20BM36 · X20TB52
Brand New OriginalOne Year WarrantyFast DeliveryINQUIRE NOW
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20SI2100
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
ENGINEERING DOSSIER

Electrical and installation data

Official B&R values grouped for selection, installation and safety validation.

SIGNAL & DIAGNOSTIC DATA
B&R ID code0x1F15
Safe digital inputs2 Type A channels
Pulse outputs2 push-pull diagnostic outputs
Nominal I/O voltage24 VDC
Permitted supply range24 VDC -15% / +20%
Input circuitSink, EN 61131-2 Type 1
Hardware input filter≤150 µs
Software input filter0 to 500 ms, channel configurable
Low switching threshold<5 VDC
High switching threshold>15 VDC
Error detection time100 ms
Channel-to-bus insulation500 Veff
INSTALLATION & ENVIRONMENT
Unshielded signal line60 m maximum
Shielded signal line400 m maximum
Bus power consumption0.25 W
Internal I/O consumption1 W
Operating temperature0 to 60°C horizontal; 0 to 50°C vertical
Storage / transport-40 to 85°C
Relative humidity5 to 95%, non-condensing
Installation elevation0 to 2000 m without limitation
Degree of protectionIP20 per EN 60529
Module pitch25 +0.2 mm
Required bus moduleX20BM33 or X20BM36
Required terminal blockX20TB52, 12-pin safety-keyed
02
FUNCTION MAP

How signals become a validated safety response

From field devices to filtered acquisition and the verified safety project.

FIELD → MODULE → LOGICX20SI2100Filter inputs
send test pulses
report channel status
1Emergency-stop circuits

Read dual-channel stop devices through a validated safety architecture.

2Guard monitoring

Acquire door and cover switch states for machine access protection.

3Light protective devices

Integrate compatible 24 VDC safety sensor signals with line diagnostics.

4Two-hand control

Process the required input behavior inside the documented safety application.

5Sensor-line testing

Use assigned pulse outputs to help expose wiring faults in the field circuit.

6Service replacement

Restore an existing SafeIO position while preserving accessories and validation.

03
BUYER QUESTIONS

FAQ for X20SI2100 selection and replacement

Make confident purchasing decisions with clear, product-focused answers.

01
What safety level can B&R X20SI2100 support in a correctly engineered application?

B&R specifies X20SI2100 for reading safety-related digital signals in applications up to EN ISO 13849-1 Category 4 / PL e and IEC 61508 or EN 62061 SIL 3. The complete safety function, wiring, validation and controller project must meet the required standard.

02
Which bus module and terminal block are required for B&R X20SI2100?

Use one safety-keyed X20BM33 or X20BM36 bus module and one X20TB52 12-pin safety-keyed terminal block. B&R lists these items as mandatory accessories, so they should be checked separately when preparing an order.

03
How do the pulse outputs on B&R X20SI2100 help diagnose a sensor circuit?

The two push-pull pulse outputs provide test pulses that can be evaluated through the safe inputs to help detect sensor-line faults. Circuit design, pulse assignment and channel configuration must follow the integrated safety documentation.

04
Is B&R X20SI2100 discontinued or still supported by current official resources?

B&R maintains the active X20SI2100 product record together with current Automation Studio hardware upgrades, certificates and safety documentation, and the page contains no discontinuation notice. Actual stock and dispatch timing are confirmed during quotation.

05
Is there an official drop-in replacement for B&R X20SI2100?

B&R does not identify a universal direct replacement on the product page. Any replacement review must compare the required safety level, input type, pulse-test concept, hardware revision, bus module, terminal block, wiring and validated application software.

06
What details should be provided for a B&R X20SI2100 manual or quotation request?

Send the complete module label and hardware revision, SafeLOGIC or controller type, Automation Studio version, input-device and wiring details, required quantity, accessory needs, condition requirement and delivery destination for an accurate review.
