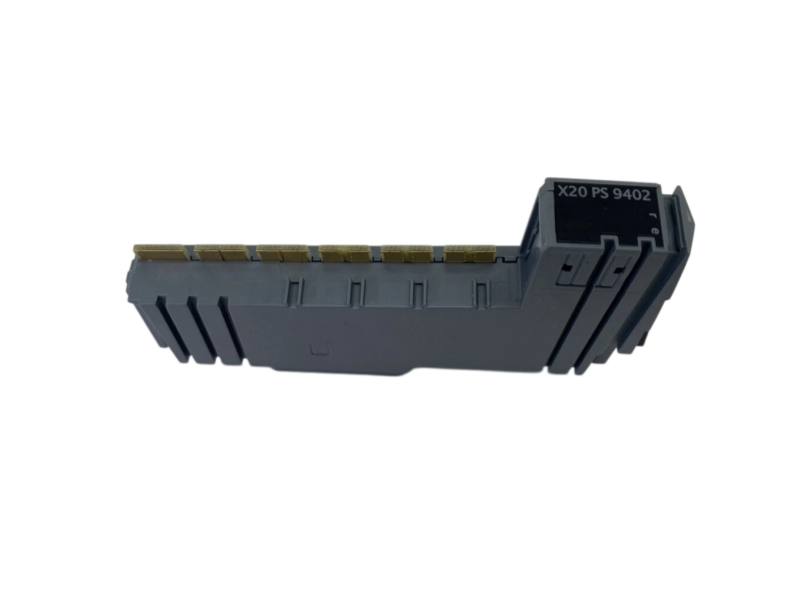

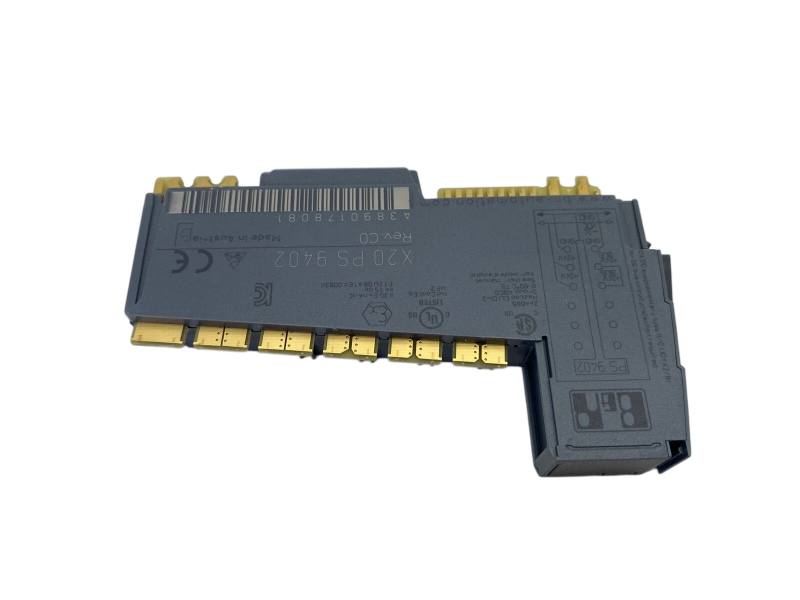

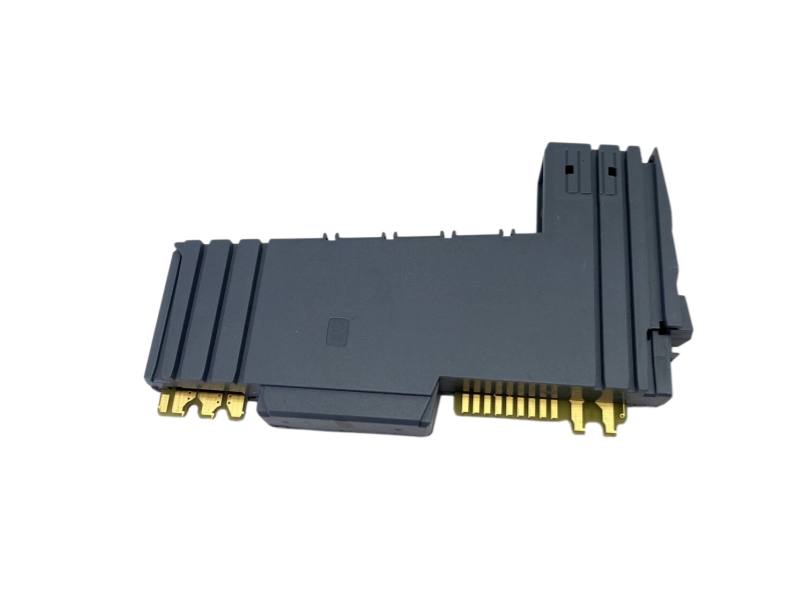

Name: B&R X20PS9402 X20 Power Supply Module
Availability: InStock

OFFICIAL SUPPLY DATA

Compact X20 station-supply specifications

OFFICIAL DATA COVERAGEInput, output, thermal, diagnostic and mandatory-accessory data from B&R.

Material numberX20PS9402

Module functionBus controller, X2X Link and internal I/O supply

Nominal supply24 VDC

Input range24 VDC -15% / +20%

Maximum input current0.7 A

Input fuseIntegrated, not replaceable

Reverse-polarity protectionYes

Electrical isolationInput and BC/X2X output not isolated

Horizontal output power7 W at 45 deg C; 5 W at 55 deg C

Vertical output power7 W at 40 deg C; 5 W at 50 deg C

Parallel connectionNot supported

Redundant operationUnavailable for this module

Overload behaviorShort-circuit proof; temporary overload

Internal I/O consumption0.6 W

X2X supply consumption1.64 W

B&R ID code0xA389

DiagnosticsRun/error and overload via LED and software

Status indicatorsOperating state and module status

Horizontal operation-25 to 60 deg C

Vertical operation-25 to 50 deg C

Storage temperature-40 to 85 deg C

Relative humidity5 to 95%, non-condensing

Degree of protectionIP20

Module pitch12.5 +0.2 mm

Terminal blockX20TB12, ordered separately

Compatible bus basesX20BB80, X20BB81 or X20BB82

I/O supply input range24 VDC -15% / +20% for the I/O path

Required I/O line fuseMaximum 10 A, slow-blow

I/O reverse-polarity protectionNo protection on the I/O feed

I/O nominal output voltage24 VDC field output

Permissible I/O contact load10 A

Horizontal mountingSupported horizontally

Vertical mountingSupported vertically

Installation elevation0 to 2000 m without limitation

Altitude deratingReduce ambient limit by 0.5 deg C per 100 m above 2000 m

Transport temperature-40 to 85 deg C during transport

Storage humidity5 to 95%, non-condensing in storage

Transport humidity5 to 95%, non-condensing in transport

CE certificationYes, CE conformity

UL certificationcULus E115267

Hazardous-location certificationcCSAus 244665, Class I Division 2 Groups ABCD T5

DNV environmental classTemperature B, humidity B, vibration B and EMC B

FUNCTION PATH

How X20PS9402 powers a compact station

A simple supply path from the 24 VDC feed to controller-network power, internal I/O and diagnostics.

Feed

Apply the protected 24 VDC supply through the keyed X20 terminal block.

POWER ENTRY

Supply

Deliver power to the bus controller, X2X Link and the internal I/O domain.

DISTRIBUTION

Limit

Hold the station within the orientation- and temperature-dependent output budget.

POWER BUDGET

Diagnose

Report operating state and overload through LEDs and controller software.

STATUS

APPLICATION 01

Small X20 controllers

For compact X20 nodes that fit the documented single-supply power budget.

APPLICATION 02

Potential-group formation

For stations that require potential groups without a redundant X2X supply architecture.

APPLICATION 03

Cost-focused machine nodes

For standard control cabinets where isolation and bus-transmitter expansion are not required.

BUYER GUIDANCE

X20PS9402 questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

Is the bus-controller supply in B&R X20PS9402 galvanically isolated?

No. B&R states that the feed and the bus-controller/X2X Link supply are not electrically isolated, which distinguishes this compact module from isolated alternatives.

Can B&R X20PS9402 modules be connected in parallel for redundancy?

No. Parallel connection and redundant operation are not supported for the bus-controller and X2X supply output.

What expansion limits apply to a station using B&R X20PS9402?

The station cannot be expanded with a bus transmitter, and X2X redundancy or expansion with X20PS3300 or X20PS3310 is not permitted.

Which mechanical parts are mandatory for B&R X20PS9402?

Order one X20TB12 terminal block and the X20BB80, X20BB81 or X20BB82 bus base appropriate to the bus-controller and expansion-slot arrangement.

How does B&R X20PS9402 report an overload?

The module provides overload and run/error diagnostics through local LED status indication and software status information.

What station data should be sent with a B&R X20PS9402 inquiry?

Provide the bus-controller type, complete X20 module list, mounting orientation, ambient temperature, selected bus base, terminal-block need, quantity and destination.
