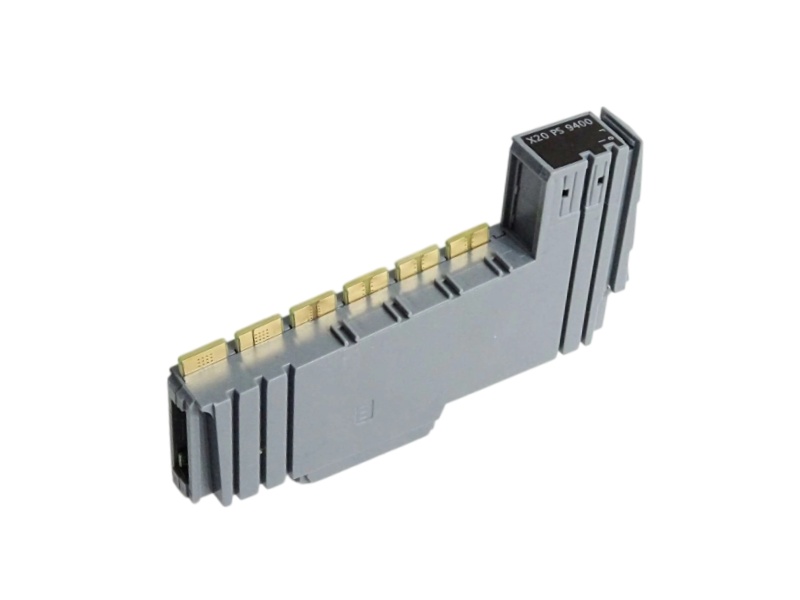

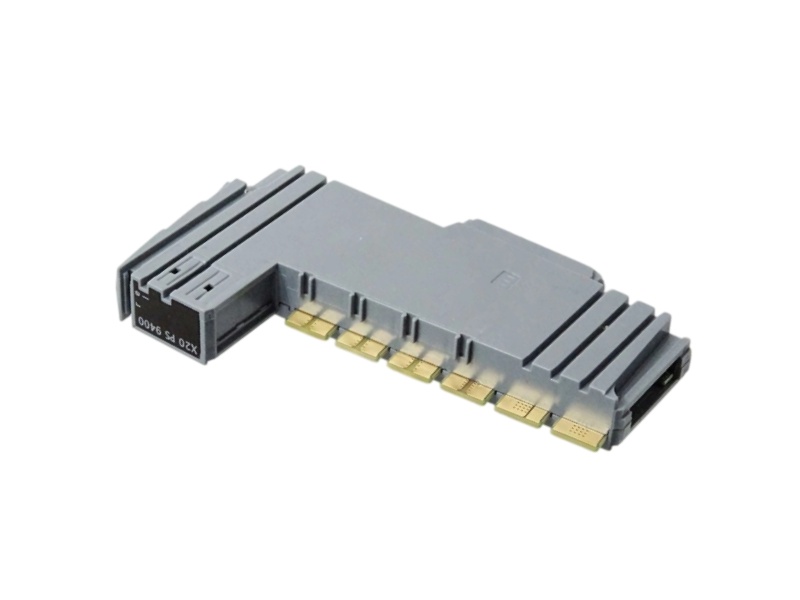

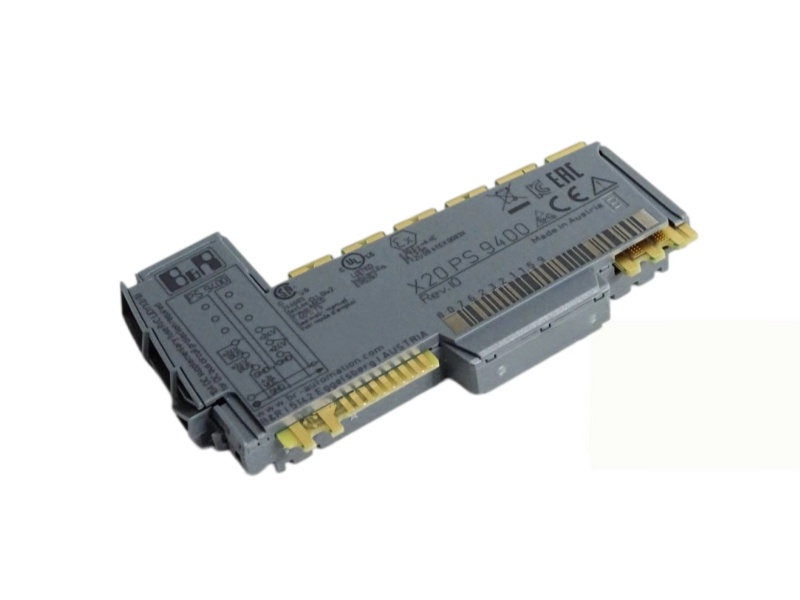

Name: B&R X20PS9400 X20 Power Supply Module
Availability: InStock

OFFICIAL POWER DATA

Isolated X20 station-supply specifications

OFFICIAL DATA COVERAGEPower paths • redundancy • RS232 service • installation limits

Material numberX20PS9400

Product familyB&R X20 System

Module functionSupply for bus controller, X2X Link and internal I/O

Nominal supply voltage24 VDC

Service interface1× RS232 via X20TB12

Maximum RS232 transfer rate115.2 kbit/s

B&R ID code0x1F8C

Internal I/O power consumption0.6 W

X2X Link supply power consumption1.42 W

BC/X2X input range24 VDC -15% / +20%

BC/X2X maximum input current0.7 A

BC/X2X input fuseIntegrated, nonreplaceable

BC/X2X reverse-polarity protectionYes

BC/X2X nominal output power7 W

Parallel connectionSupported

Redundant operationSupported

BC/X2X overload behaviorShort-circuit proof; temporary overload permitted

I/O supply input range24 VDC -15% / +20%

Required I/O line fuseMaximum 10 A, slow-blow

I/O reverse-polarity protectionNo

I/O nominal output voltage24 VDC

Permissible I/O contact load10 A

Electrical isolationBC/X2X output isolated from input; I/O path not isolated

Status indicationOverload, operating state, module state and RS232 activity

Horizontal operating temperature-25 to 60°C

Vertical operating temperature-25 to 50°C

Storage temperature-40 to 85°C

Transport temperature-40 to 85°C

Relative humidity5 to 95%, non-condensing

Degree of protectionIP20 per EN 60529

Mounting orientationHorizontal or vertical

Installation elevation0 to 2000 m without limitation

Altitude deratingReduce ambient limit by 0.5°C per 100 m above 2000 m

Required terminal blockX20TB12, ordered separately

Compatible bus baseX20BB80, X20BB81 or X20BB82 as applicable

Module pitch12.5 +0.2 mm

POWER FLOW

From incoming supply to a supervised X20 station

A functional view of how the module separates, shares and monitors station power.

Feed

Bring the controller-network feed and I/O feed into the station as two clearly identified power paths.

POWER ENTRY

Isolate

Keep the bus-controller and X2X supply electrically separated from its incoming source for cleaner system segmentation.

DOMAIN BOUNDARY

Plan the controller-network path for parallel or redundant operation when machine availability calls for an alternate feed.

CONTINUITY

Distribute

Route the I/O supply through the externally protected load path and verify the downstream contact demand.

FIELD POWER

APPLICATION 01

Controller power segmentation

For X20 stations that need the controller network separated from the field-side I/O feed.

APPLICATION 02

Redundancy-ready stations

For machine architectures that use documented parallel or redundant controller-network wiring.

APPLICATION 03

Commissioning access

For maintenance teams that need a local RS232 service connection and visible diagnostic feedback.

BUYER GUIDANCE

X20PS9400 questions answered

Selection guidance shaped around real integration and replacement decisions.

Why does B&R X20PS9400 use separate bus-controller/X2X and I/O power paths?

The separated paths let the controller-network supply remain electrically isolated from its input while field I/O power passes through a separately protected, non-isolated circuit.

Can two B&R X20PS9400 modules be planned for a redundant X2X supply?

Yes. B&R documents parallel connection and redundant operation for the bus-controller and X2X output. The station load, wiring and fault behavior still require an engineering check.

Which installation parts must be ordered with B&R X20PS9400?

Use an X20TB12 terminal block and the X20BB80, X20BB81 or X20BB82 bus base that matches the station arrangement. These parts are ordered separately.

Is B&R X20PS9402 a direct substitute for B&R X20PS9400?

No automatic substitution should be assumed. The official X20PS9402 data differs in galvanic isolation, parallel and redundant operation, and service-interface provision, so the full station design must be reviewed.

How is the B&R X20PS9400 RS232 service connection commissioned?

Connect the interface through X20TB12, verify the terminal assignment and transfer settings, and account for the fact that the RS232 path is not isolated from the bus.

What should be included in a B&R X20PS9400 inquiry when current supply is required?

Send the label photo, hardware revision, quantity, condition, bus base and terminal requirements, destination and required date. Request the current datasheet and a dated availability confirmation with the quotation.
