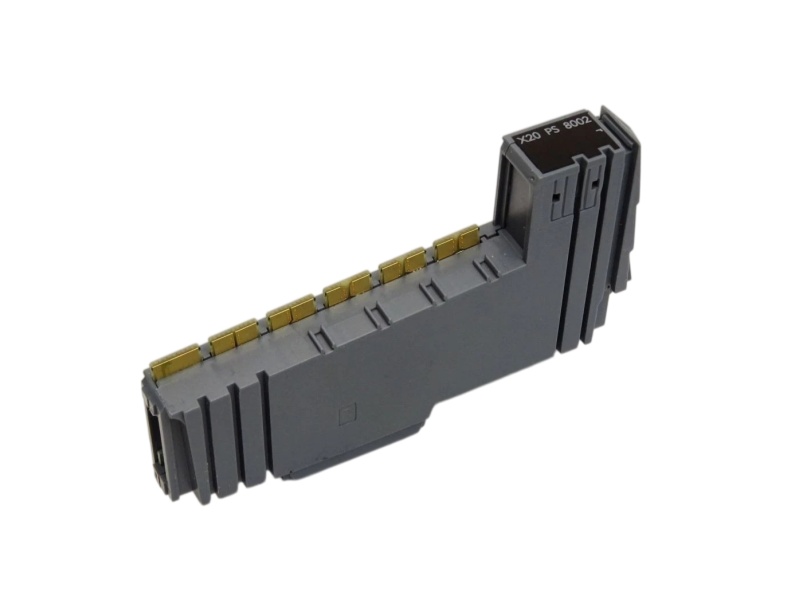

B&R X20PS8002 power supply module front view

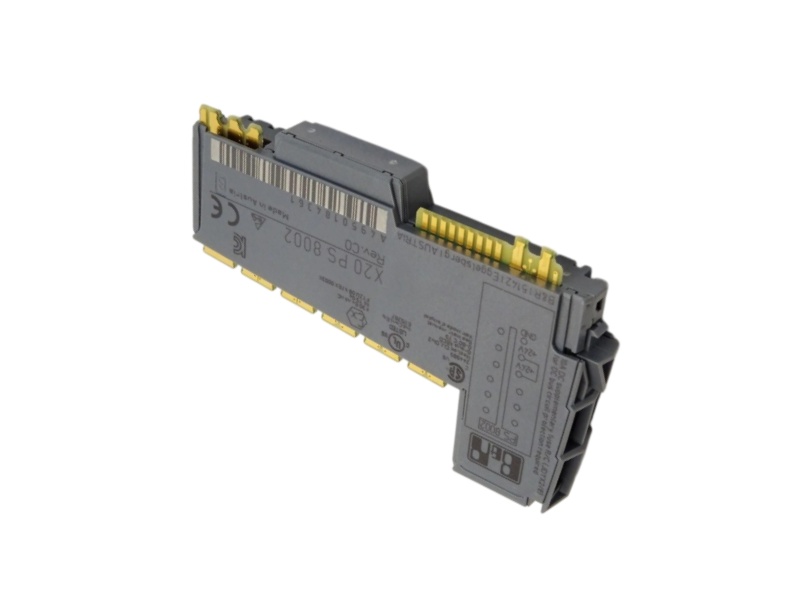

B&R X20PS8002 terminal and housing detail
B&R X20PS8002 X20 module product image

B&R X20PS8002 X20 24 VDC Power Supply Module

B&R X20 SYSTEM POWER

X20PS8002

B&R X20PS8002 supplies protected 24 VDC power to standalone X20 devices, including X20 hub and link-selector installations, with overload monitoring and module-level status diagnostics.

24 VDCNominal input
7 WPeak output
IP20Protection
12.5 mmModule pitch
+Integrity Supply+One Year Warranty+Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20PS8002
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL POWER MODULE DATA

Standalone X20 power and derating specifications

Verified B&R electrical data.

Module functionPower module for standalone X20 devices
Nominal input voltage24 VDC
Permitted input range-15% / +20%
Maximum input current0.7 A
Power consumption1.34 W
Input protectionIntegrated non-replaceable fuse
Reverse-polarity protectionYes
Output at 45°C, horizontal7 W
Output at 55°C, horizontal5 W
Output at 40°C, vertical7 W
Output at 50°C, vertical5 W
Short-circuit protectionYes
Temperature-overload protectionYes
Electrical isolationNone between I/O supply and device power
Status indicationModule run/error and overload
Mounting orientationHorizontal or vertical
Horizontal operating range-25 to 60°C
Vertical operating range-25 to 50°C
Storage temperature-40 to 85°C
Transport temperature-40 to 85°C
Relative humidity5 to 95%, non-condensing
Degree of protectionIP20
Terminal blockX20TB12 required
Module pitch12.5 +0.2 mm
02
DISTRIBUTED POWER ROLE

Power path for standalone X20 stations

Reliable hub-station integration.

01

Feed

Bring protected field supply into the dedicated power module at a standalone X20 location.

02

Protect

Use the integrated input and overload safeguards to limit damage from wiring or load faults.

03

Distribute

Provide device power to the approved hub or link-selector arrangement at the remote station.

04

Diagnose

Read module and overload indications during commissioning and maintenance.



Standalone hub supply

Power support for approved X20 hub installations away from the main station.



Link selector stations

Dedicated supply for supported X20 link-selector applications.



Remote machine I/O

Compact power distribution where a standalone X20 device must be energized locally.

03
PRODUCT-SPECIFIC GUIDE

X20PS8002 questions answered

Reliable station-power guidance.

Q

Why is B&R X20PS8002 selected for a standalone X20 station?

It is designed to feed supported standalone X20 devices such as the X20HB8884 link selector and X20HB8880 hub rather than serve as a general-purpose cabinet supply.

Q

What does the isolation design of B&R X20PS8002 mean for wiring?

The I/O supply and device-power paths are not electrically isolated inside the module, so the station grounding and protective concept must account for their common relationship.

Q

How does mounting direction affect B&R X20PS8002 capacity?

Available output is temperature-dependent and the vertical arrangement reaches its derating boundary earlier; apply the official curve to the actual cabinet orientation.

Q

Which terminal block is mandatory for B&R X20PS8002?

B&R specifies X20TB12 for the module; include the correct terminal and verify conductor preparation before installation.

Q

How are overload conditions identified on B&R X20PS8002?

The module provides local run/error and overload indication that can be used with system diagnostics to isolate supply or load faults.

Q

What should be sent when requesting B&R X20PS8002 documentation and pricing?

Provide the full model, connected standalone device, mounting direction, load estimate, terminal requirement, desired condition and shipping destination.
