Name: B&R X20PD0012 12-Channel Potential Distributor Module
Availability: InStock

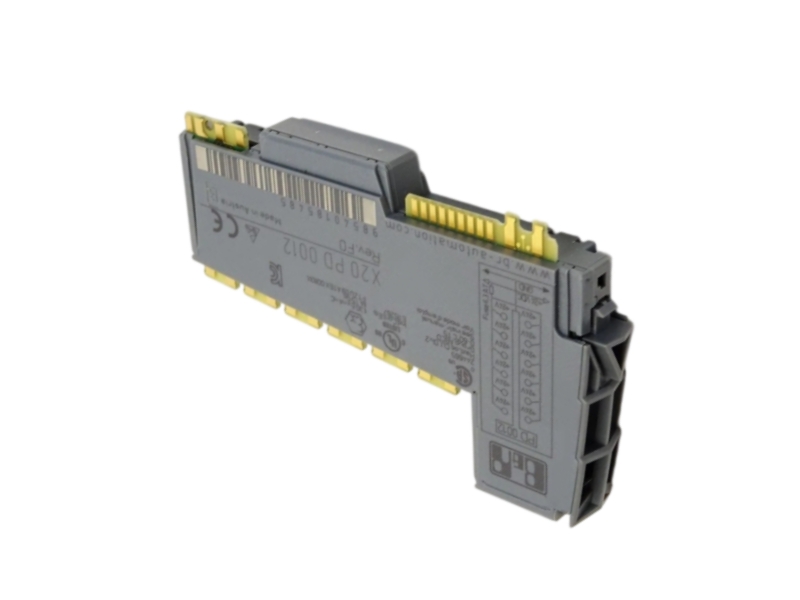

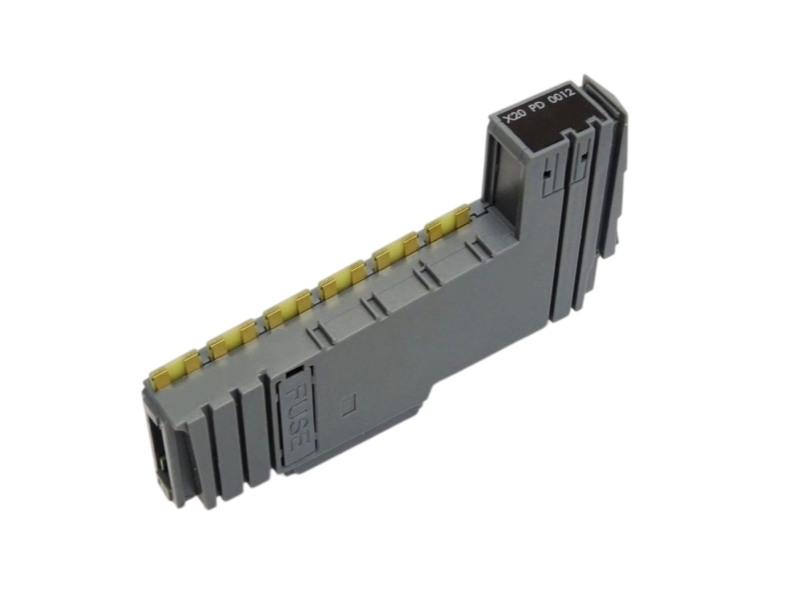

B&R X20PD0012 12-Channel Potential Distributor Module

B&R X20 POWER ROUTINGOFFICIAL DATA

X20PD0012

B&R X20PD0012 distributes the internal 24 VDC I/O supply to twelve terminals through a replaceable monitored 6.3 A slow-blow fuse.

Brand New OriginalOne Year WarrantyFast Delivery

24 V DISTRIBUTION / 12 WAY

Protected field potential in one X20 slice

12TERMINALS

24 VDCOUTPUT

6.3 AFUSE

10 ACONTACT LOAD

REQUIRED BASEX20BM11 / X20BM15 + X20TB12

PRODUCT ENQUIRYInquire Nowab@mooreplc.com

OFFICIAL POWER DATA

Distribution, protection & environment

Verified B&R output, fuse, diagnostics, power, installation and environmental data.

Distributed outputs12 × 24 VDC at terminals

Nominal output voltage24 VDC from internal I/O supply

FuseIntegrated 6.3 A slow-blow; replaceable

Short-circuit behaviorIntegrated fuse

Permissible contact load10 A

Fuse monitoringLED status indicator and software

Module diagnosticsLED status indicator and software

Bus power consumption0.12 W

Internal I/O power consumption1 W

B&R ID code0x267E

Degree of protectionIP20

Mounting orientationHorizontal or vertical

Horizontal operating temperature-25 to 60°C

Vertical operating temperature-25 to 50°C

Storage / transport temperature-40 to 85°C

Relative humidity5 to 95%, non-condensing

Installation altitude0 to 2000 m without limitation

Module pitch12.5 +0.2 mm

Official dimensions and weight are shown only where the reviewed manufacturer material explicitly states them.

POWER DISTRIBUTION MAP

Protected 24 V field supply

A load-centered view of source potential, fuse supervision, terminal routing and field-device use.

POTENTIAL FLOW

STAGE 01

Receive supply

Take the protected source from the X20 station internal I/O power supply.

STAGE 02

Fuse the branch

Route the shared potential through the replaceable monitored fuse.

STAGE 03

Distribute terminals

Present the fused supply at twelve field wiring points.

STAGE 04

Report condition

Expose module and fuse state through local indication and software diagnostics.

FIELD USES

Sensor auxiliaries

Provide a tidy shared 24 V potential for multiple nearby sensor circuits.

Actuator supply routing

Distribute protected field power inside an X20 station where the total load is suitable.

Serviceable branch protection

Place a replaceable, monitored fuse at the distribution point for faster fault localization.

LOAD PLANNING CHECKS

TOTAL LOAD

Add the expected field current before selecting connected circuits.

FUSE

Use the specified fuse type and investigate the cause before replacement.

BASE

Include the required X20 bus module and terminal block in the bill of materials.

DIAGNOSTICS

Map fuse and module state into the maintenance strategy.

BUYER DECISION SUPPORT

Common Questions From Sellers About X20PD0012

Practical answers for protected potential routing, station hardware, service, alternatives and purchasing.

What advantage does the monitored fuse give B&R X20PD0012 during field troubleshooting?

The module reports fuse condition by LED and software, allowing maintenance staff to distinguish a distribution fault from a general station problem before replacing the fuse.

Which X20 building blocks have to accompany B&R X20PD0012 in the station?

B&R lists X20BM11 or X20BM15 bus modules and the X20TB12 terminal block as mandatory; the product note instructs users to order X20BM11 and X20TB12 separately.

Where does B&R X20PD0012 obtain the potential that appears on its field terminals?

The official data states that the nominal output comes from the internal I/O power supply, so the station supply design and downstream field load form one planning boundary.

Is B&R X20PD0012 intended to switch individual loads like a digital output module?

No. It is a potential distributor, not a channel-by-channel control output. Use it to route protected supply potential and use suitable output modules for load switching.

What must remain equivalent if B&R X20PD0012 is replaced by another distribution solution?

Preserve the source potential, terminal count, branch protection, permissible load, fuse supervision, base and terminal arrangement, wiring allocation and project diagnostics.

How can a purchaser document an accurate B&R X20PD0012 request?

Attach the station layout, required base and terminal modules, connected load estimate, fuse requirement, quantity and destination, and request the official X20PD0012 data sheet with the quote.
