Name: B&R X20IF10E3-1 PROFINET IO Device Interface Module
Availability: InStock

B&R X20IF10E3-1 PROFINET IO Device Interface Module

B&R / X20 SYSTEMPROFINET INTERFACE

IO DEVICE / 2-PORT SWITCH

X20IF10E3-1

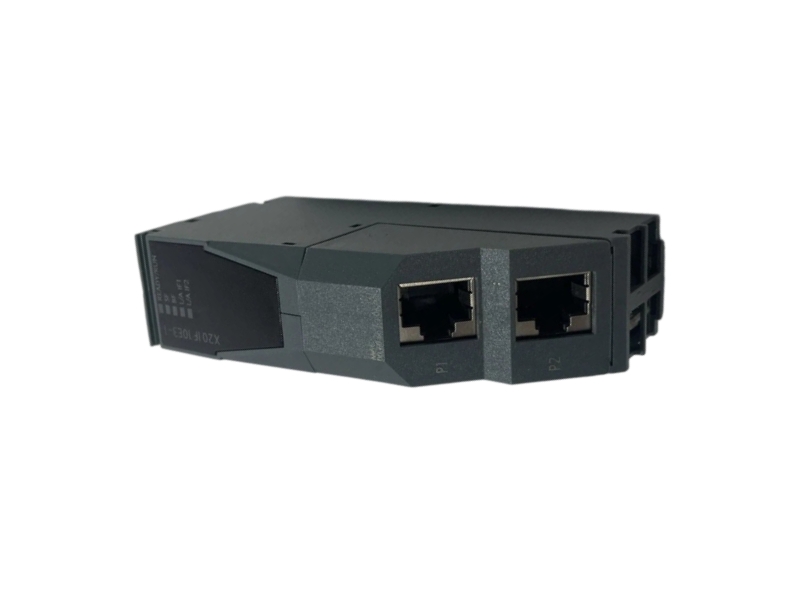

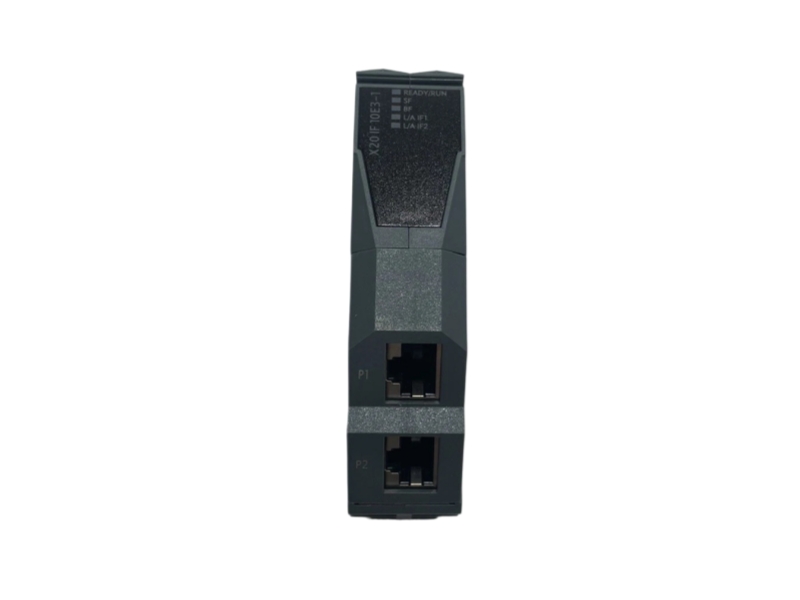

B&R X20IF10E3-1 is an X20 PROFINET IO device interface with two shielded RJ45 switch ports, Real-Time performance and network diagnostics.

ORDERING NOTEConfirm the X20 PLC or X20BC1083 host, GSDML device identity, PROFINET network name, IP plan, topology, firmware level, cable segments and project configuration.

Brand New Original Fast Delivery Worldwide Shipping

INQUIRE NOW

OFFICIAL PROFINET DATA

X20IF10E3-1 network, switch and operating profile

B&R fieldbus characteristics arranged for controller, topology, performance and cabinet validation.

PROFINET & SWITCH

DIAGNOSTICS & ENVIRONMENT

Fieldbus rolePROFINET IO device (slave)

Automatic link setupAutonegotiation and Auto-MDI/MDIX

Conformance classC

Network diagnosticsModule, network and data-transfer status

Performance classRT; integrated switch supports IRT

B&R ID code0xA71E

Netload classIII

Power consumption2 W

Physical layer100BASE-TX

Electrical isolationPLC isolated from PROFINET IO IF1 and IF2

Port execution2x shielded RJ45 switch ports

Host slotX20 PLC or expandable bus controller X20BC1083

Transfer rate100 Mbit/s

Mounting orientationHorizontal or vertical

Segment lengthMaximum 100 m between two stations

Degree of protectionIP20

Link modesHalf- and full-duplex

Horizontal operating range-25 to 60°C

Ethernet controllernetX100

Vertical operating range-25 to 50°C

USE 01

Expose an IO device

The module links an X20 control project to a PROFINET IO controller as the configured slave device.

USE 02

Build a line topology

Two RJ45 switch ports allow the network cable to continue through the station.

USE 03

Support deterministic traffic

Real-Time performance is specified, while the integrated switch supports IRT forwarding behavior.

USE 04

Automate Ethernet setup

Autonegotiation and Auto-MDI/MDIX simplify port speed and cable-pair handling.

USE 05

Show network condition

LED and software diagnostics expose module, network and data-transfer state during commissioning.

USE 06

Separate network potential

The PLC side is electrically isolated from both PROFINET interfaces.

PROFINET COMMISSIONING

B&R X20IF10E3-1 network integration FAQ

Practical decision support for reliable X20 PROFINET integration planning.

Which PROFINET performance does B&R X20IF10E3-1 support?

B&R classifies the module as conformance class C with Real-Time device performance; its integrated two-port switch supports IRT.

Where can B&R X20IF10E3-1 be installed in the X20 system?

The official slot specification places it in an X20 PLC or the expandable X20BC1083 bus controller.

How is B&R X20IF10E3-1 used in a line network?

The two shielded RJ45 switch ports pass the 100BASE-TX network through the station while the module operates as a PROFINET IO device.

What sourcing checks apply to B&R X20IF10E3-1?

Confirm the hardware and firmware revision, condition and delivery timing against the current B&R product record and the target Automation Studio project.

Which project data must move with a B&R X20IF10E3-1 replacement?

Preserve the PROFINET device name, IP settings, GSDML mapping, module configuration, firmware compatibility, port topology and controller project.

What should be included when requesting B&R X20IF10E3-1 documents and price?

Send the module and host labels, project version, network name, topology, firmware, quantity, condition and destination, and request the official product data and X20 system literature.
