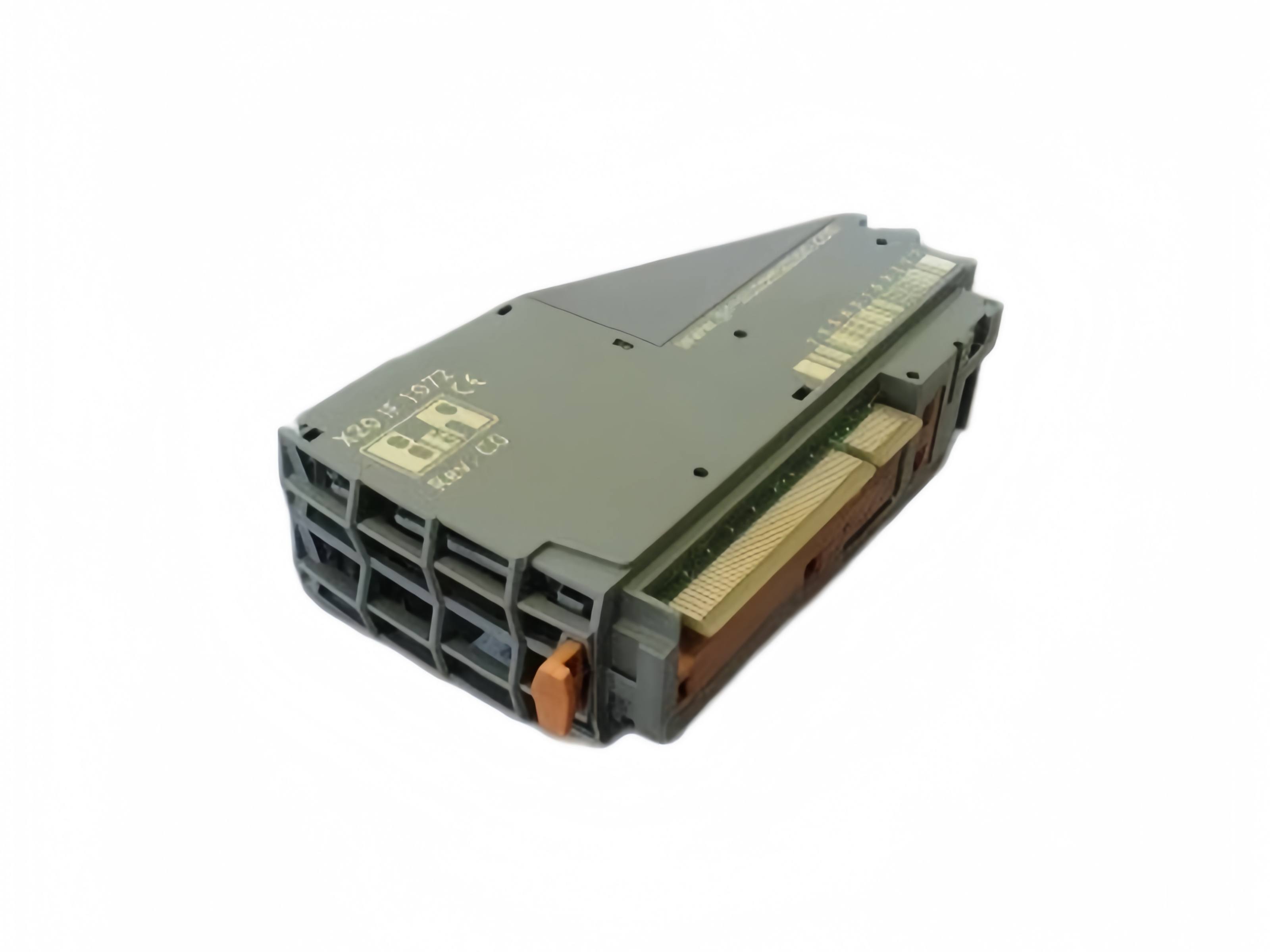

B&R X20IF1072 X20 CAN Bus Interface Module view 1
B&R X20IF1072 X20 CAN Bus Interface Module

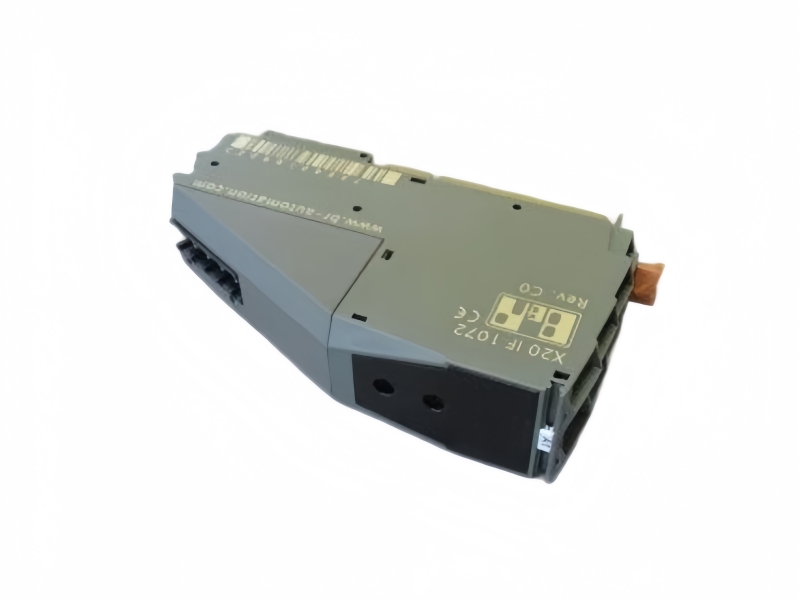

B&R X20IF1072 X20 CAN Bus Interface Module view 3

B&R X20IF1072 X20 CAN Bus Interface Module

B&R · X20 COMMUNICATION
CAN INTERFACE PROFILE / IF1072CAN BUS
APPLICATION-SPECIFIC EXPANSION

X20IF1072

B&R X20IF1072 is an X20 controller interface module with one galvanically isolated CAN port and an integrated terminating resistor for application-specific expansion.

1 × CAN1 MBIT/S1000 M
NETWORK NOTEController slot, line design and termination must agree
X20 PLCIF1072CAN DEVICES
VERIFY BEFORE ORDERConfirm controller slot, terminal block and CAN topology
Brand New OriginalOne Year WarrantyFast DeliveryINQUIRE NOW
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20IF1072
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
ENGINEERING DOSSIER

CAN interface and environmental data

Official B&R values grouped for network design, controller integration and replacement.

CAN INTERFACE & DIAGNOSTICS
Communication channels1 CAN bus
Interface connector5-pin male multipoint
Maximum distance1000 m
Maximum transfer rate1 Mbit/s
CAN controllerSJA1000
Terminating resistorIntegrated
Electrical isolationPLC isolated from CAN
B&R ID code0x1F20
Status indicatorsModule, transfer and termination
Power consumption0.79 W
Controller positionX20 PLC slot
INSTALLATION & ENVIRONMENT
Terminal block0TB2105.9110 or 0TB2105.9010
Mounting orientationHorizontal or vertical
Elevation to 2000 mNo limitation
Elevation above 2000 mAmbient derating 0.5°C per 100 m
Degree of protectionIP20
Horizontal operation-25 to 60°C
Vertical operation-25 to 50°C
Storage temperature-40 to 85°C
Operating humidity5 to 95%, non-condensing
ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
UL listingcULus E115267
02
FUNCTION MAP

How X20IF1072 expands an X20 controller with CAN

The controller slot, isolated interface and bus termination form one network endpoint.

CONTROLLER → INTERFACE → BUSX20IF1072Load the project
isolate the CAN path
exchange node data
1Application-specific CAN

Add the network interface required by a machine-specific X20 controller design.

2Distributed device control

Connect compatible CAN nodes located along the engineered fieldbus segment.

3Legacy network service

Restore a controller endpoint while retaining the established bitrate and object mapping.

4End-of-line termination

Use the onboard termination only when the module occupies the correct physical bus end.

5Commissioning diagnostics

Read the status indications to distinguish module, transfer and termination states.

6Controller expansion

Install the interface in the documented PLC slot and update the Automation Studio project.

03
BUYER QUESTIONS

FAQ for X20IF1072 selection and replacement

Make confident purchasing decisions with clear, product-focused answers.

01
Where must B&R X20IF1072 be installed in an X20 system?

B&R specifies X20IF1072 for installation in an X20 PLC slot as an application-specific controller expansion. It is not a standard remote I/O slice and must be supported by the selected X20 controller configuration.

02
Which terminal blocks are compatible with B&R X20IF1072?

B&R lists 0TB2105.9110, a five-pin push-in terminal, and 0TB2105.9010, a five-pin screw-clamp terminal, as mandatory accessory choices. Order and wiring should follow the installed cabinet standard.

03
How should the integrated terminating resistor on B&R X20IF1072 be used?

Enable the integrated resistor only when X20IF1072 is located at the physical end of the CAN segment. The opposite end also requires correct termination, while intermediate nodes must not create additional parallel terminators.

04
What applications suit B&R X20IF1072?

The module is used to add a CAN interface to an X20 controller for machine-specific communication with compatible CAN devices. The bus protocol profile and process objects remain defined by the application.

05
Is B&R X20IF1072 discontinued, and is there an official direct replacement?

B&R maintains the product page, current datasheet, hardware upgrades and certificates without a discontinuation notice. The page does not name a universal drop-in replacement, so controller support, firmware and CAN configuration must be compared.

06
What should be provided for a B&R X20IF1072 datasheet or quotation request?

Send the module label and hardware revision, X20 CPU type, Automation Studio version, terminal-block preference, CAN bitrate, cable length, node count, termination arrangement, required quantity and destination.
