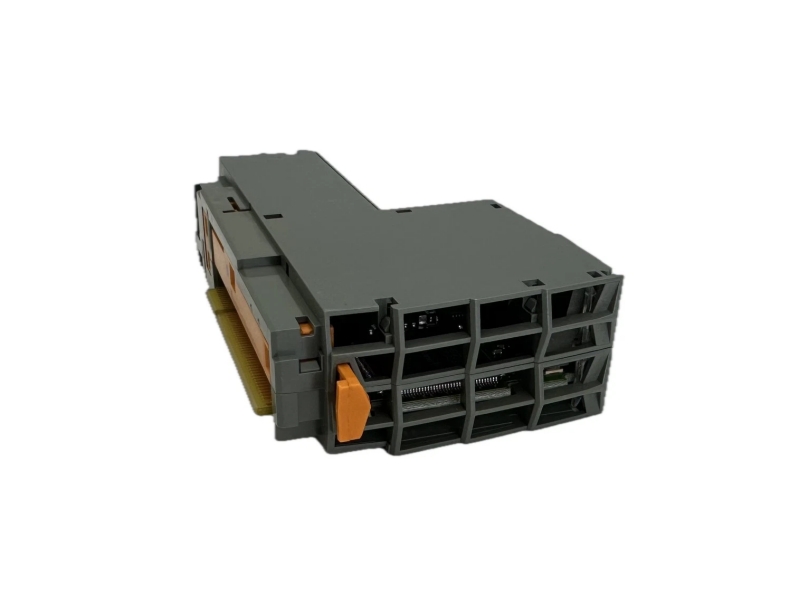

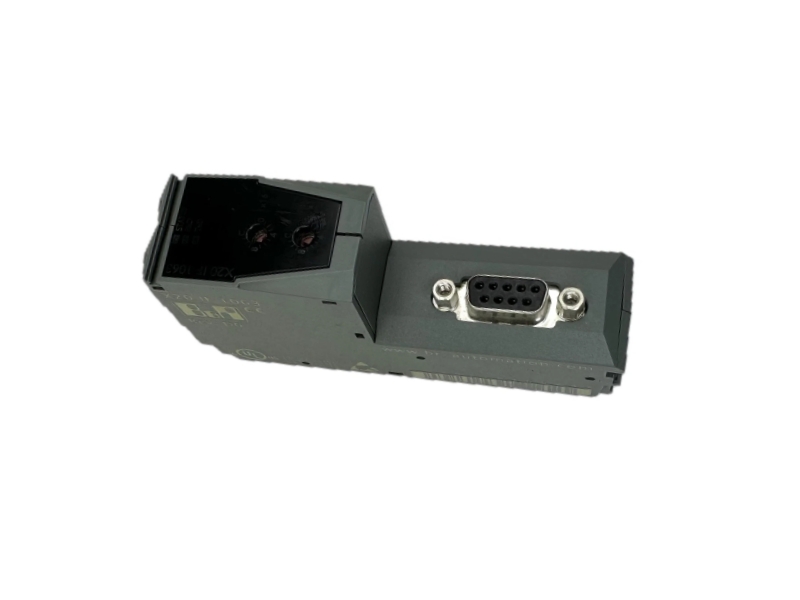

B&R X20IF1063 X20 PROFIBUS DP Interface Module
B&R X20IF1063 X20 PROFIBUS DP Interface Module
B&R X20IF1063 X20 PROFIBUS DP Interface Module

B&R X20IF1063 X20 PROFIBUS DP Interface Module

B&R · X20ACTIVE PRODUCT
PROFIBUS DP INTERFACE

X20IF1063

X20 PROFIBUS DP Interface Module

X20 PROFIBUS DP V0 slave interface with isolated 9-pin DSUB, 12 Mbit/s transfer and up to 1200 m distance.

PROFIBUS DP V012 MBIT/S1200 m MAX
REQUEST A QUOTEInquire NowShare the PROFIBUS master, cable distance, termination, quantity and destination for a focused review.ab@mooreplc.com ↗
Brand New Original
One Year Warranty
Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20IF1063
Country of Origin Austria
Lead Time 2–3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 / TECHNICAL PROFILE

PROFIBUS interface & network limits

Verified B&R values for protocol, connector, transfer distance, isolation and X20 installation.
Product typeX20 PROFIBUS DP interface module
ProtocolPROFIBUS DP V0 slave
B&R ID0x1F23
Power consumption0.87 W
Bus connector9-pin female DSUB
Maximum transfer rate12 Mbit/s
Maximum distance1200 m
TerminationExternal T-connector 0G1000.00-090
ControllerVPC3+C
Electrical isolationYes
Status indicationModule status and data-transfer LEDs
MountingX20 PLC slot
OrientationHorizontal or vertical
Elevation0–2000 m without limitation
Protection ratingIP20
Operating temperature horizontal−25 to 60 °C
Operating temperature vertical−25 to 50 °C
Storage temperature−40 to 85 °C
Humidity5–95%, non-condensing
ApprovalsCE, UKCA, ATEX and UL
02 / FUNCTION & APPLICATION

PROFIBUS connectivity for an X20 PLC

A practical view of bus addressing, termination and distributed-device integration.

What the interface does

The X20IF1063 adds one PROFIBUS DP V0 slave connection to an X20 PLC, presenting isolated bus electronics through a 9-pin female DSUB interface.

The VPC3+C controller and external termination arrangement support up to 12 Mbit/s and a maximum bus distance of 1200 m when the network is engineered correctly.

Protocol role
PROFIBUS DP V0 slave interface.
Network reach
Up to 1200 m and 12 Mbit/s.
Physical layer
9-pin female DSUB and external termination.
Service feedback
Module-status and transfer LEDs.

Selection notes

Confirm the PROFIBUS master, address, cable length, termination and slot temperature before commissioning.

Network design
Set the PROFIBUS address and master configuration before download.
Termination
Use the specified external T-connector and termination method.
Cabinet fit
Apply the horizontal or vertical temperature limit in the X20 slot.
03 / FAQ

Questions before ordering X20IF1063

Clear answers for engineering review, replacement planning and quotation.
What protocol role does B&R X20IF1063 perform?

B&R X20IF1063 operates as one PROFIBUS DP V0 slave interface in an X20 PLC system.

What connector and speed belong to B&R X20IF1063?

The module uses a 9-pin female DSUB interface and supports transfer rates up to 12 Mbit/s.

How far can the B&R X20IF1063 bus run?

The official maximum distance is 1200 m, subject to PROFIBUS cable, speed and termination rules.

Is B&R X20IF1063 electrically isolated?

Yes. The B&R data identifies the PROFIBUS interface as electrically isolated.

What should be checked before replacing B&R X20IF1063?

Match PROFIBUS slave behavior, address planning, DSUB wiring, termination, isolation and X20 slot conditions.

What supports a B&R X20IF1063 quotation?

Provide the PROFIBUS master, cable distance, termination method, X20 controller, quantity and destination.
