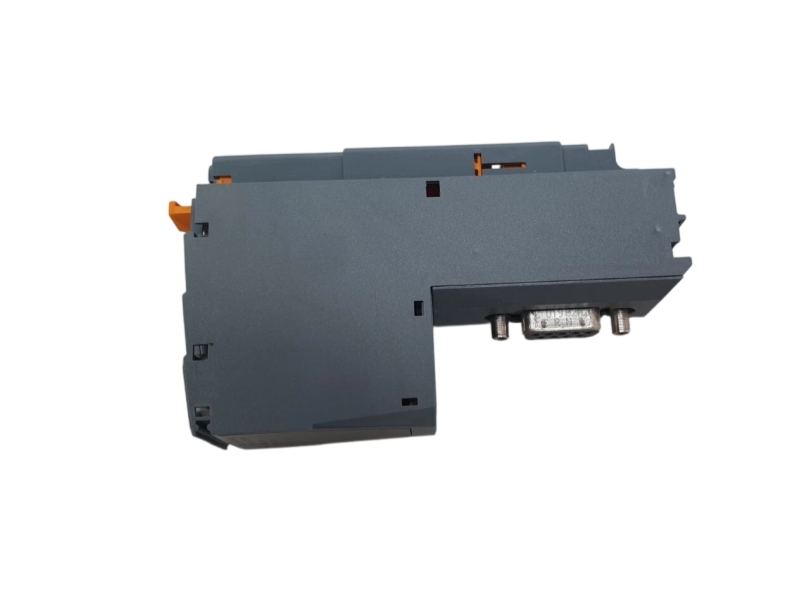

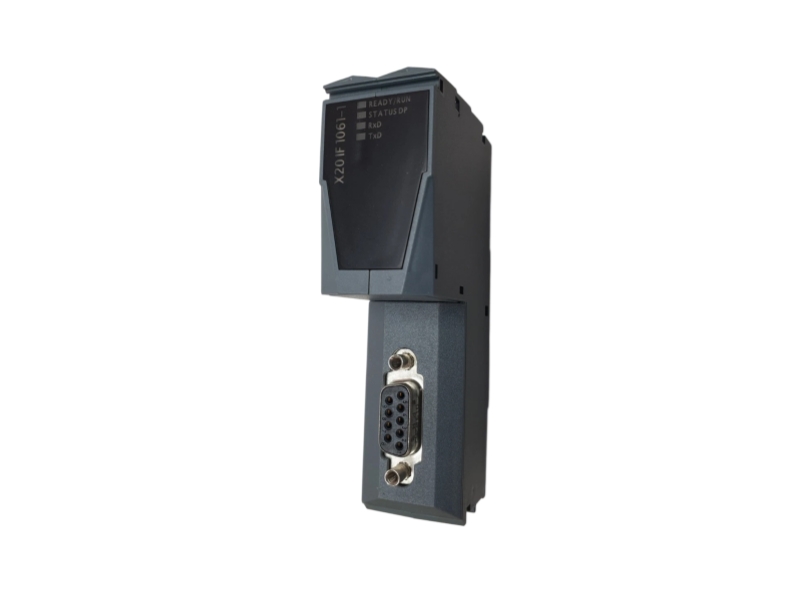

Name: B&R X20IF1061-1 X20 PROFIBUS DP interface module
Availability: InStock

B&R X20IF1061-1 X20 PROFIBUS DP interface module

B&RX20

X20IF1061-1

PROFIBUS DP INTERFACE

X20IF1061-1

B&R X20IF1061-1 is an X20 interface module with one PROFIBUS DP channel and DTM configuration support for modular automation systems.

1 DP CHANNELDTM CONFIGX20

NETWORK LINKPROFIBUS DP integration

NETWORKPROFIBUS DP

CONFIGURATIONDTM

ORDER CHECKDistributed I/O network

Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Electrical specifications

Official values for selection and installation

ManufacturerB&R

Catalog numberX20IF1061-1

Product familyX20 PROFIBUS DP interface module

Field busPROFIBUS DP

Channel count1 interface

ConfigurationDTM configuration

Hardware revisionV3.0 hardware upgrade

SystemX20 modular system

FunctionFieldbus integration

DocumentationPOWERLINK help reference

MountingModular X20 station

ApplicationDistributed I/O communication

Interface rolePROFIBUS DP V1 master

Maximum transfer rate12 Mbit/s

Maximum input data3.5 kB

Maximum output data3.5 kB

Electrical isolationYes

Bus connector0G1000.00-090 RS485 connector

Data sheetVersion 2.12 EN

PROFIBUS certificateVersion 1.00

Applications & integration

Practical decision lenses for system builders.

01 / DTM SETUP

Device description

Use DTM configuration for the interface module in engineering workflows.

02 / PROFIBUS SEGMENT

Single DP channel

Connect the station to a PROFIBUS DP segment after checking network address and cable requirements.

03 / X20 STATION

Modular integration

Install the interface module in the X20 station with the correct bus base and adjacent modules.

Frequently asked questions

Answers for selection, lifecycle and quotation checks.

Which fieldbus channel is built into X20IF1061-1?

B&R specifies one PROFIBUS DP channel for this interface module.

How is X20IF1061-1 configured in an engineering project?

The module is identified for DTM configuration, allowing device parameters to be handled through the engineering tool.

What hardware revision is identified for X20IF1061-1?

The B&R record identifies the V3.0 HW Upgrade revision.

Where does X20IF1061-1 fit in an X20 station?

It is an X20 interface module for fieldbus integration; confirm the bus base and adjacent module arrangement before installation.

Which documentation should accompany X20IF1061-1?

Use the B&R Powerlink help and model-specific station documentation, then confirm firmware and network settings for the installed system.

What information supports a quotation for X20IF1061-1?

Provide the exact model, PROFIBUS network details, X20 base and adjacent modules, quantity and destination.
