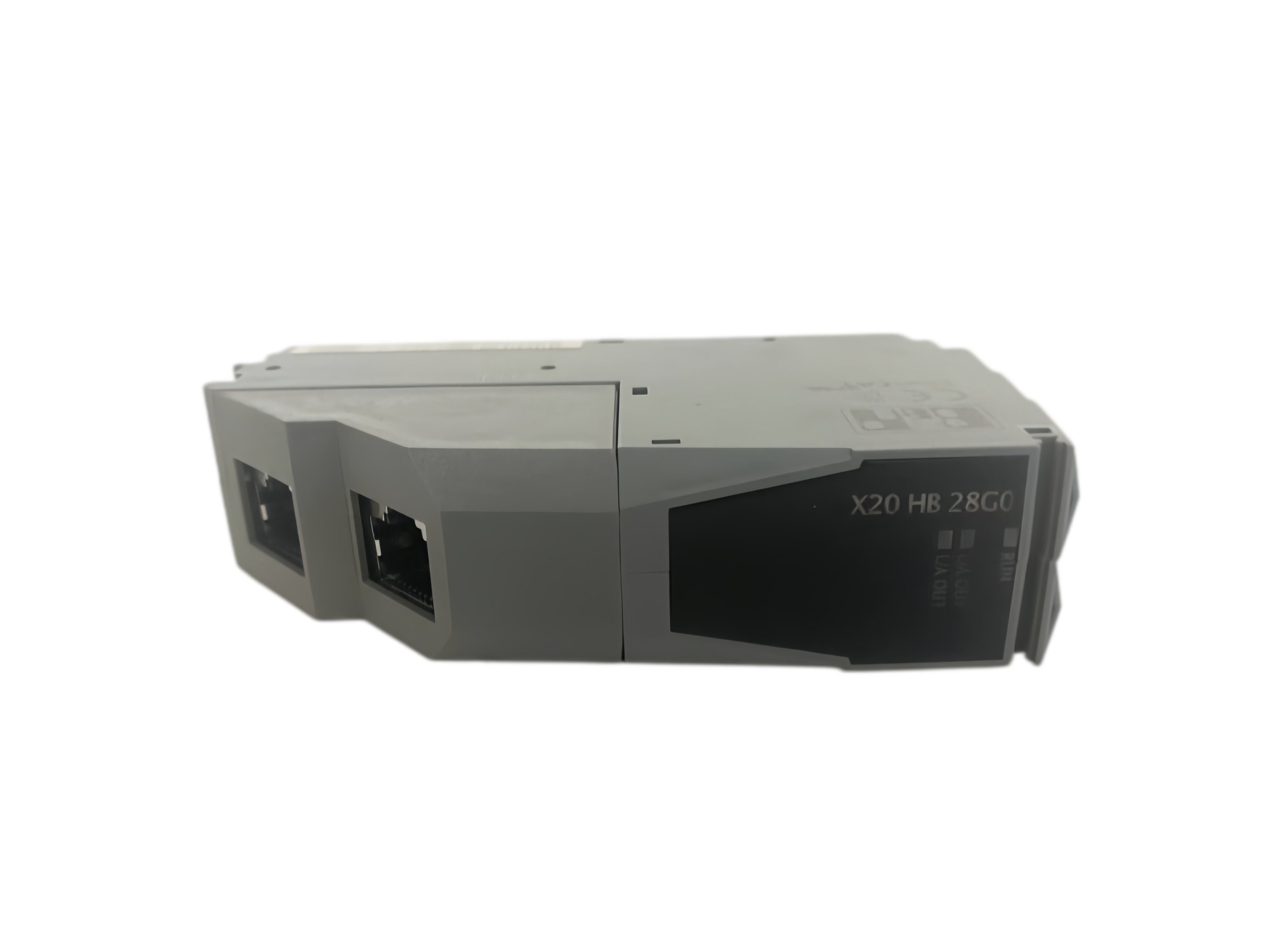

Name: B&R X20HB28G0 X20 2-Port EtherCAT Junction Module
Availability: InStock

B&R X20HB28G0 X20 2-Port EtherCAT Junction Module

B&R / X20 SYSTEM

ETHERCAT TOPOLOGY EXPANSION

2-PORT JUNCTION

INDUSTRIAL ETHERNET / BRANCH MODULE

X20HB28G0

B&R X20HB28G0 is a two-port X20 EtherCAT junction module that adds network branches to a supported expandable controller.

MATCH BEFORE ORDERING Confirm the expandable controller, X20BB81 base, EtherCAT topology, cable class, segment budget, firmware revision and Automation Studio hardware package before ordering.

NETWORK EtherCAT

JUNCTION Integrated 2-port branch

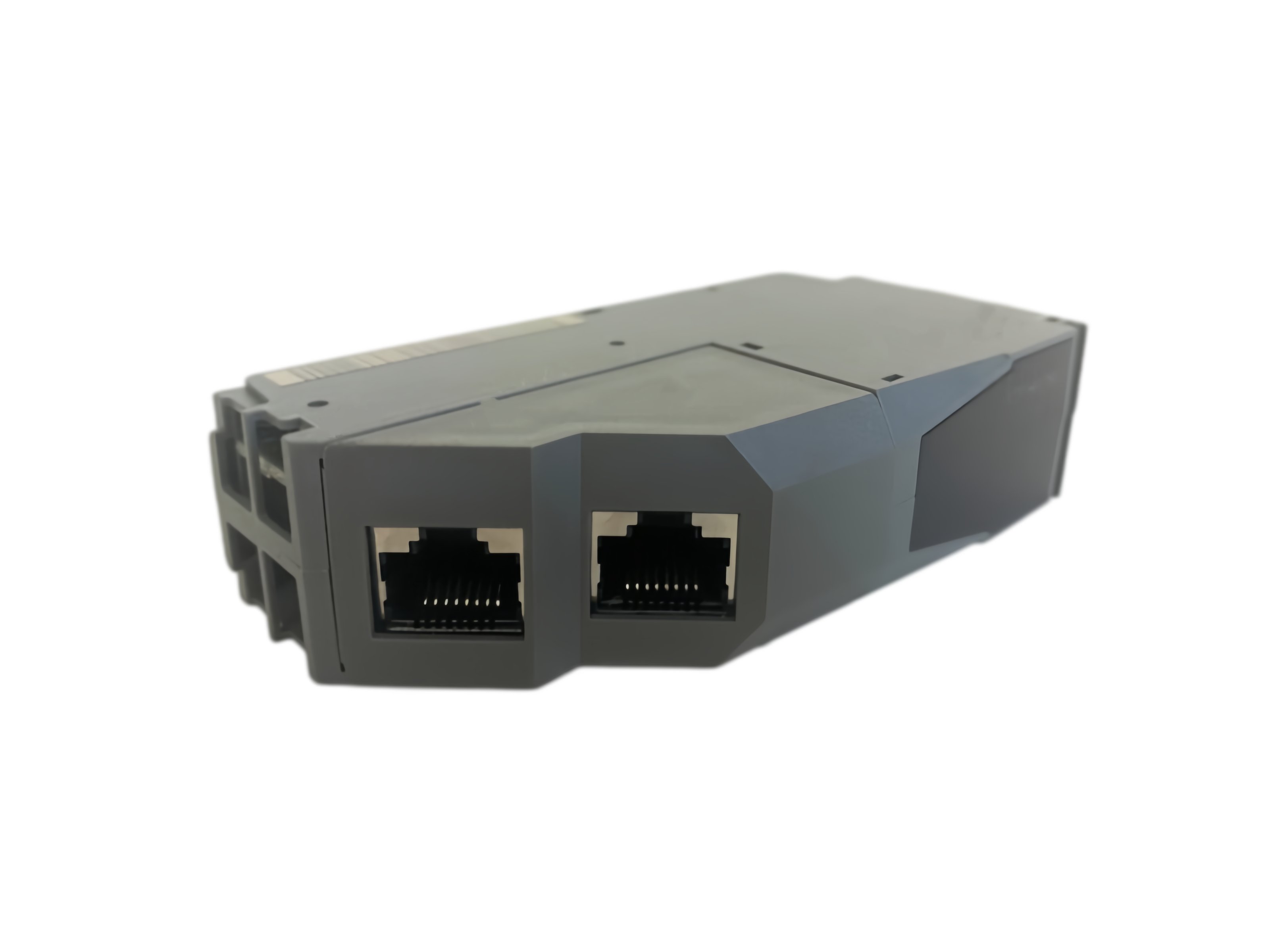

CONNECTORS 2 shielded RJ45

Brand New Original One Year Warranty Rapid response

INQUIRE NOW

OFFICIAL ETHERCAT DATA

X20HB28G0 junction, topology and host-integration profile

B&R EtherCAT manual data for the exact hub module, connection method and expandable-controller relationship.

JUNCTION INTERFACEA / 5

01Module categoryX20 EtherCAT junction module

02Junction implementationIntegrated 2-port EtherCAT branch

03Network connectorsTwo shielded RJ45 ports

04Network technologyEtherCAT

05Topology purposeBranch expansion in an X20 EtherCAT system

HOST & REVISIONB / 5

06Expandable controller referenceX20BC80G3

07Expansion base referenceX20BB81

08Base expansion capacityOne X20 add-on position for IF or HB module

09EtherCAT segment guidanceMaximum 100 m between stations

10Security-advisory scopeFirmware revisions up to 1.28 listed with maintenance discontinued

FROM MAIN LINE TO TWO BRANCHES

How X20HB28G0 extends an EtherCAT machine topology

The junction creates additional physical branches while EtherCAT telegrams continue through the configured network structure.

01ETHERCAT MASTER

02X20 CONTROLLER

03JUNCTION MODULE

04TWO BRANCHES

FUNCTION 01

Add branch points inside the station

The integrated junction creates additional cable directions from a compatible expandable X20 controller assembly.

FUNCTION 02

Keep deterministic telegram flow

EtherCAT frames continue through the physical branches under the timing and addressing of the network master.

FUNCTION 03

Reduce external switch hardware

Topology expansion is incorporated into the X20 module group instead of relying on a separate cabinet device.

FUNCTION 04

Support modular machine segments

Branches can separate physical machine zones while remaining part of one engineered EtherCAT network.

FUNCTION 05

Expose link condition at the cabinet

Port indications assist technicians during cable commissioning and fault isolation.

FUNCTION 06

Preserve topology documentation

The controller project and wiring drawing must reflect every branch so service work does not alter the validated network.

BUYER REFERENCE

B&R X20HB28G0 buyer FAQ

Practical guidance for confident selection, replacement and purchasing decisions.

Which controller arrangement is documented for B&R X20HB28G0?

The B&R EtherCAT manual shows the junction with the expandable X20BC80G3 arrangement and the X20BB81 base that provides an add-on position.

Which cabling check prevents B&R X20HB28G0 link problems?

Use industrial shielded Ethernet cabling, respect the allowed station-to-station segment length, terminate the RJ45 plugs correctly and document each branch path.

When is B&R X20HB28G0 useful in a machine design?

It is useful when an EtherCAT installation needs two physical downstream directions from the X20 controller area, such as separate machine sections or cabinet runs.

Does B&R X20HB28G0 have a current supply guarantee?

The official manual documents the module, but the reviewed material does not provide a manufacturer supply promise. Current stock, revision and condition are checked for each inquiry.

What revision issue must be considered before installing B&R X20HB28G0?

A B&R security advisory lists affected firmware through the stated revision with maintenance discontinued, so identify the installed firmware and evaluate network-security requirements before replacement.

Which manual and topology records should be sent for a B&R X20HB28G0 quote?

Provide the EtherCAT bus-controller manual reference, module and controller labels, base-module number, firmware, branch drawing, quantity and destination.
