Name: B&R X20HB2880 2-Port Fast Ethernet Hub Expansion Module
Availability: InStock

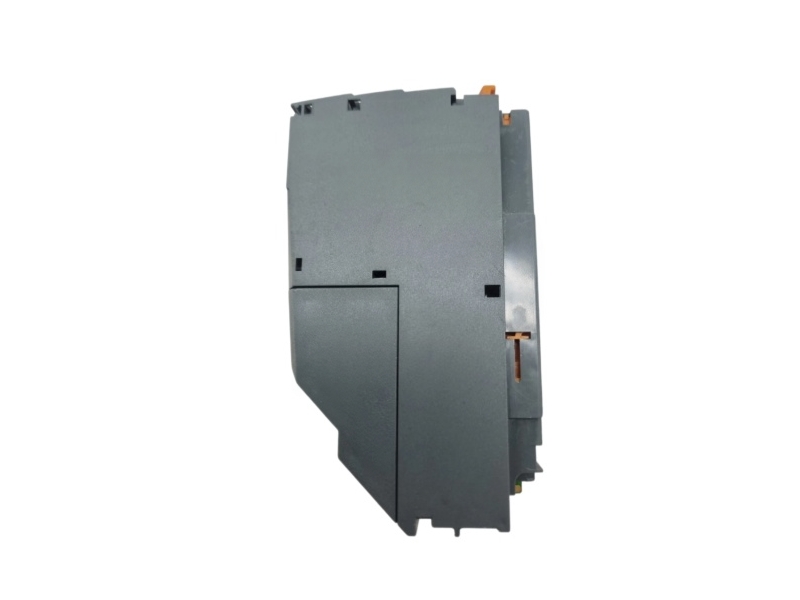

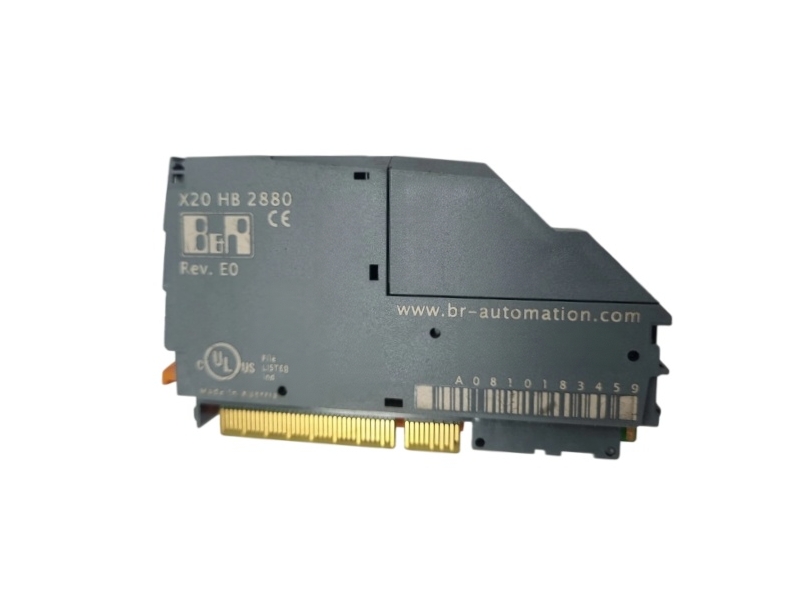

B&R X20HB2880 2-Port Fast Ethernet Hub Expansion Module

B&R / X20 SYSTEMHUB EXPANSION

FAST ETHERNET / 2-PORT BRANCH

X20HB2880

B&R X20HB2880 is a two-port 100BASE-TX hub expansion module for compatible X20 hub bases, adding two shielded RJ45 network connections with status indication.

ORDERING NOTEConfirm the X20BC8083 or X20HB8880 host slot, 100BASE-TX topology, cable segment lengths, RJ45 connector condition, hardware revision and controller arrangement before ordering the EtherCAT junction.

Brand New Original Fast Delivery Worldwide Shipping

INQUIRE NOW

OFFICIAL NETWORK DATA

X20HB2880 Ethernet, timing and operating profile

Official B&R hub characteristics arranged for topology, cabinet and environmental review.

NETWORK & INTERFACE

INSTALLATION & ENVIRONMENT

Module role2-port Fast Ethernet hub expansion

Network diagnosticsModule status and bus function via LEDs

Physical layer100BASE-TX

Electrical isolationPower supply isolated from Ethernet IF1 and IF2

Port execution2x shielded RJ45

Compatible hub slotExpansion for X20BC8083 and X20HB8880

Transfer rate100 Mbit/s

Mounting orientationHorizontal or vertical

Maximum segment length100 m between two stations

Installation altitude0 to 2000 m without limitation

Duplex behaviorHalf-duplex supported; full-duplex not supported

High-altitude deratingReduce ambient limit 0.5°C per 100 m above 2000 m

Link negotiationAutonegotiation enabled

Degree of protectionIP20 per EN 60529

Cable crossover handlingAuto-MDI/MDIX supported

Horizontal operating range-25 to 60°C

Hub propagation delay0.96 to 1 µs

Vertical operating range-25 to 50°C

Power consumption1.17 W

Storage and transport-40 to 85°C; 5 to 95% RH non-condensing

USE 01

Extend a POWERLINK hub

The module operates in the modular hub extension provided by the supported B&R bus controller or standalone hub.

USE 02

Create two cable branches

Two shielded RJ45 connections provide separate 100BASE-TX segments within the approved topology.

USE 03

Simplify patching

Auto-MDI/MDIX removes the need to select crossover wiring for the connected Ethernet segment.

USE 04

Expose network state

Front indicators show both module condition and bus activity for commissioning checks.

USE 05

Maintain segment isolation

The supply side is electrically isolated from both Ethernet interfaces.

USE 06

Fit standard X20 cabinets

Horizontal and vertical mounting are supported within their documented temperature limits.

TOPOLOGY BUYER QUESTIONS

B&R X20HB2880 hub expansion FAQ

Straightforward purchasing guidance for dependable X20 network expansion projects.

What network connection does B&R X20HB2880 add?

B&R X20HB2880 adds two shielded RJ45 100BASE-TX hub ports, each intended for a Fast Ethernet segment in the supported X20 hub topology.

Which B&R bases accept B&R X20HB2880?

The official mechanical slot specification names X20BC8083 and X20HB8880; B&R also describes the X20HB8815 gateway as part of the modular hub-extension concept.

Where is B&R X20HB2880 used in a machine network?

It is used where a compatible X20 POWERLINK hub assembly needs two additional branch connections and local LED visibility of module and bus state.

How is B&R X20HB2880 availability checked before purchase?

The current B&R page and data sheet identify the module, while actual stock, hardware version and condition are confirmed against the requested delivery schedule.

What must be compared when replacing B&R X20HB2880?

Compare the host base, occupied extension slot, two cable segments, network timing, connector condition, hardware revision and Automation Studio project before the swap.

Which information should be supplied for a B&R X20HB2880 quotation?

Send the module and host labels, topology sketch, cable lengths, revision, quantity, required condition and destination, and request the official X20(c)HB2880 data sheet.
