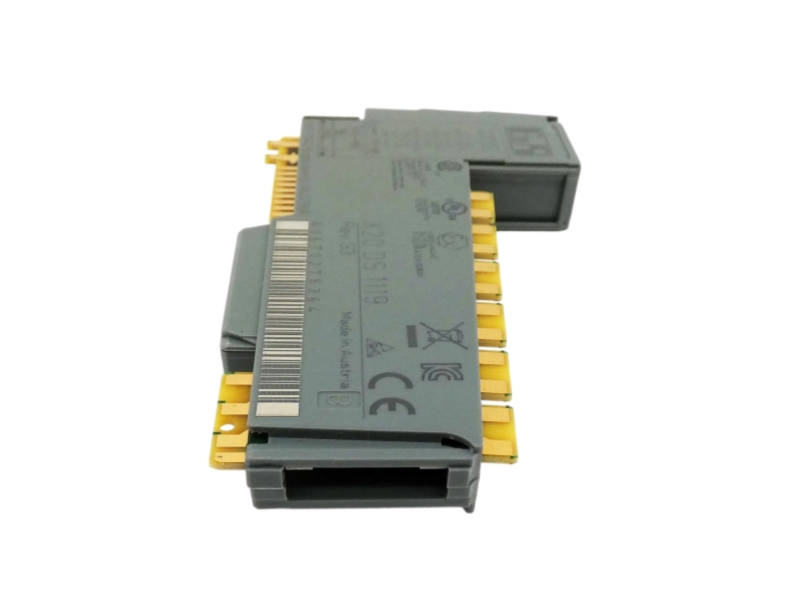

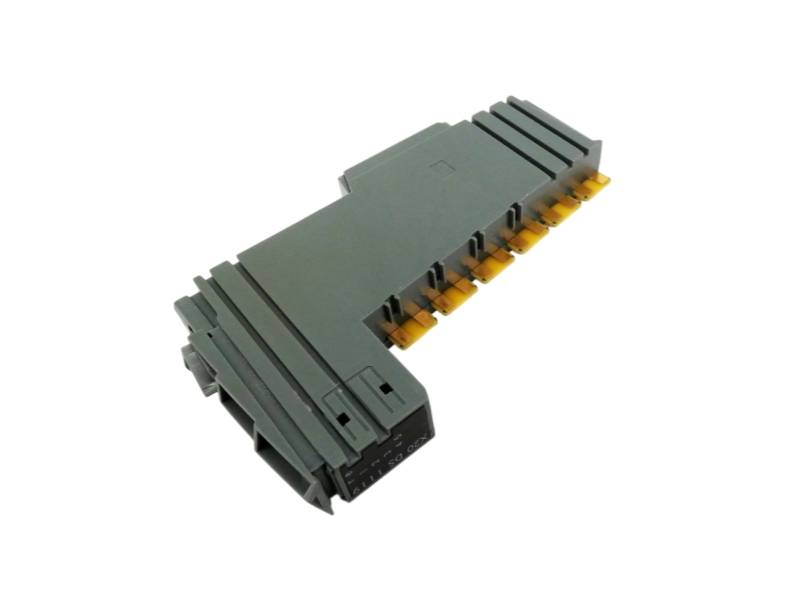

Configurable 5 V channelsUp to 3 inputs or outputs
24 V digital inputs2 channels
Universal counter pairs1
Counter operating modes2 event counters, up/down counter or AB counter
AB counter evaluation4x
Universal counter size16/32-bit
Maximum counter frequency600 kHz
Motion generator outputs5 V symmetrical; A/B or direction/frequency
SSI maximum transfer rate1 Mbit/s
SSI counter sizeUp to 32-bit, encoder-dependent
SSI encoder signal5 V symmetrical
5 V encoder supply5 VDC ±5%, internal, max. 300 mA
24 V encoder supplyInternal, max. 300 mA
5 V input hardware filter≤200 ns
5 V input standard5 VDC differential, EIA RS485
5 V common-mode range-7 V to +12 V
24 V input hardware filter≤2 µs
24 V input circuitSink
24 V input range24 VDC -15% / +20%
24 V input currentApprox. 3.4 mA
24 V input resistanceApprox. 7.19 kΩ
24 V input frequency100 kHz
5 V output currentMax. 65 mA
5 V output switching frequencyMax. 500 kHz
5 V output circuitSink and/or source; push/pull/push-pull
Output protectionShort-circuit protection
Channel-to-bus isolation500 Veff
Bus power consumption0.01 W
Internal I/O power consumption1.5 W
Degree of protectionIP20
Horizontal operating temperature-25 to 60°C
Vertical operating temperature-25 to 50°C
Storage and transport temperature-40 to 85°C
Relative humidity5 to 95%, non-condensing
Mounting orientationHorizontal or vertical
Module pitch12.5 +0.2 mm
Signal line requirementShielded lines for all signals
B&R ID code0xA067
Full product weight and complete enclosure dimensions are omitted because they were not stated for this material number in the reviewed official product page or supplied image names.
