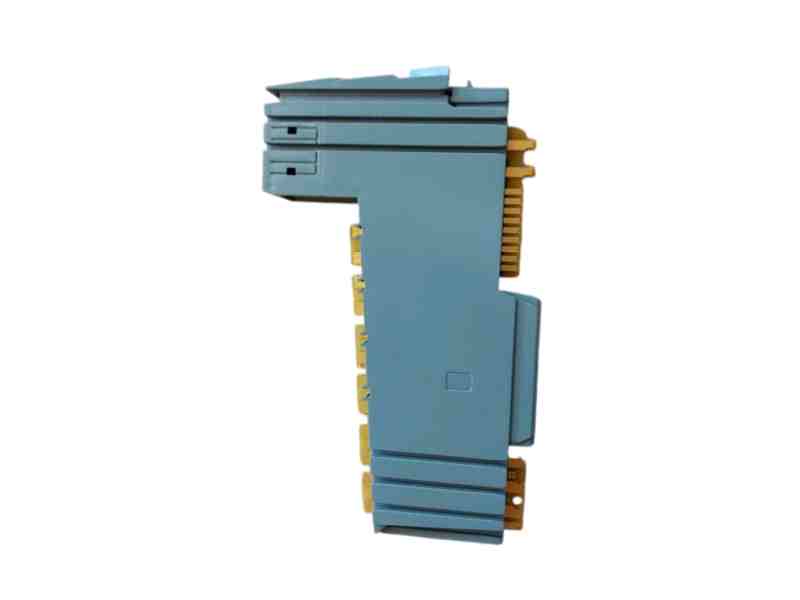

B&R X20DO8332 product image 1

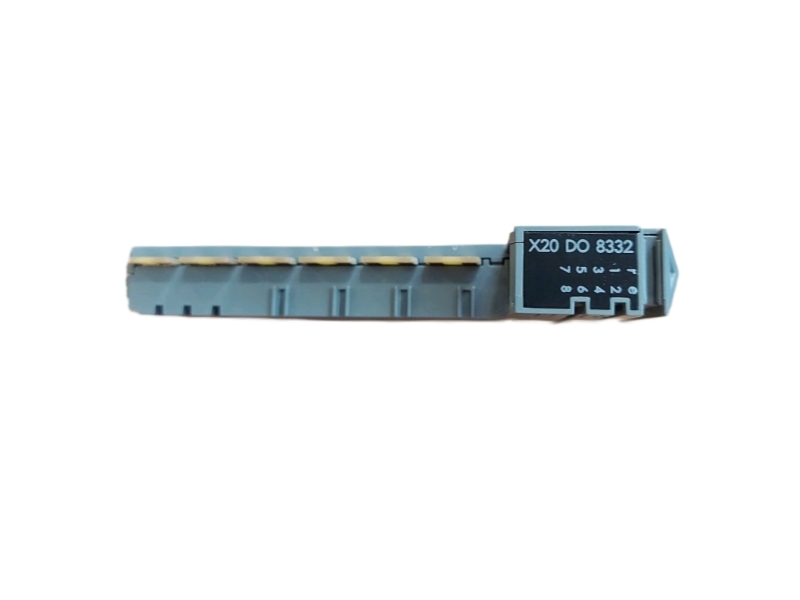

B&R X20DO8332 product image 2

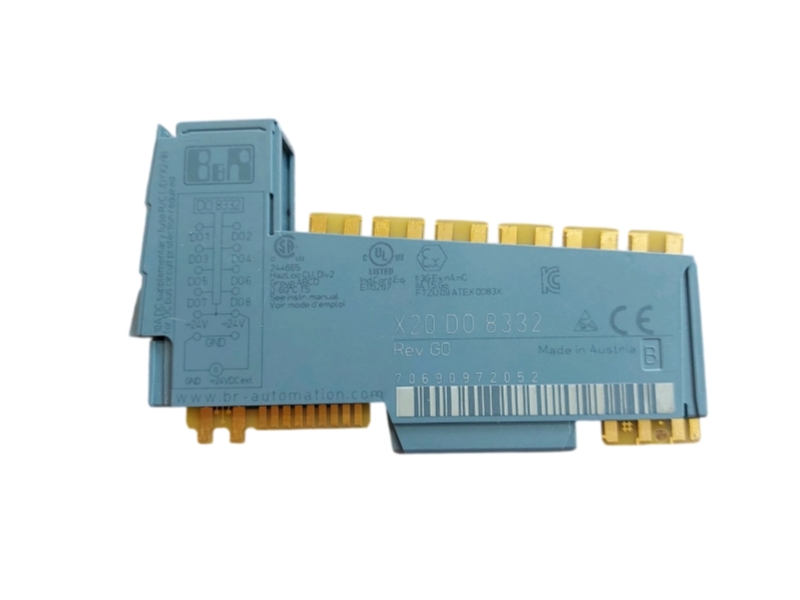

B&R X20DO8332 product image 3

B&R X20DO8332 X20 8-Channel 2 A Digital Output Module

X20
HIGH-CURRENT SOURCE OUTPUT CONTROL

X20DO8332

B&R X20DO8332 is an eight-channel 24 VDC digital output module with 2 A protected outputs and compact one-wire connections for reliable industrial load control.

8 OUTPUTS2 A EACH1-WIRE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20DO8332
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Output and installation data

High-current X20 switching with direct field-supply feed.

01
Order numberX20DO8332
B&R ID code0x1B9D
Digital outputs8
Nominal output voltage24 VDC
Nominal output current2 A per channel
Maximum current per group4 A
Maximum current per module8 A
Output circuitCurrent-sourcing
Connection type1-wire
Output supplyExternal actuator supply
Required external fuseMaximum 10 A, slow-blow
Switch-on and switch-off delay<300 µs
Resistive-load switching frequencyMaximum 500 Hz
Status indicationPer-channel output state, operating state and module status
Output monitoring delay10 ms
Leakage current when off5 µA
Typical RDS(on)140 mΩ
Peak short-circuit current<12 A
Output protectionThermal shutdown and freewheeling diode
Bus power consumption0.22 W
External I/O consumption0.92 W
Electrical isolationChannel isolated from bus
Mounting orientationHorizontal or vertical
Protection ratingIP20
Horizontal operation-25 to 60 °C
Vertical operation-25 to 50 °C
Storage and transport-40 to 85 °C
Relative humidity5 to 95%, non-condensing
Elevation without limitation0 to 2000 m
Module pitch12.5 +0.2 mm
02
SIGNAL JOURNEY

How high-current X20 outputs reach field loads

A protected switching path from the station command to eight 24 VDC loads.

SIGNAL WORKBENCHFeed.
Switch.
Protect.
Indicate.

Direct supply and protected source outputs simplify high-current field control.

01

Feed

The field output supply is connected directly to the module instead of the X20 I/O power bus.

02

Switch

Eight source stages independently apply positive supply to connected 1-wire loads.

03

Protect

Integrated protection helps manage output-stage electrical faults within the documented limits.

04

Indicate

Per-channel status and module diagnostics support commissioning and troubleshooting.

USE 01

SOLENOID BANKS

Switch groups of 24 VDC valves that remain within the individual and total load limits.

USE 02

CONTACTOR INTERFACES

Drive suitably rated contactor coils from a compact remote I/O station.

USE 03

HIGH-CURRENT AUXILIARIES

Control machine loads that need more channel current than standard output slices provide.

BUYER QUESTIONS

FAQ for B&R X20DO8332

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

Why does B&R X20DO8332 not use the X20 I/O power bus for its outputs?

The module receives its output supply directly, which supports the high-current channel design and removes the need for a separate supply module on the I/O power bus.

QUESTION 02

Which base and terminal components are mandatory for B&R X20DO8332?

B&R specifies an X20BM11 or X20BM15 bus module together with an X20TB12 terminal block; order them separately unless already present.

QUESTION 03

What loads are suitable for B&R X20DO8332?

It is intended for compatible 24 VDC source-driven loads such as valves, contactor coils and auxiliaries within the channel, total-current and switching limits.

QUESTION 04

How should total cabinet current be planned around B&R X20DO8332?

Calculate simultaneous load current, conductor and terminal ratings, protective devices, supply capacity, heat dissipation and the required derating for the installation.

QUESTION 05

Can a lower-current X20 output module directly replace B&R X20DO8332?

Not automatically. Compare channel current, connection type, supply routing, bus module, terminal assignment, logical mapping and protection behavior first.

QUESTION 06

Which details should accompany a B&R X20DO8332 order request?

Send quantity, destination, module revision, terminal and bus-module needs, load-current list, switching duty and photos of the existing X20 station.
