B&R X20DO2322 2-channel digital output module

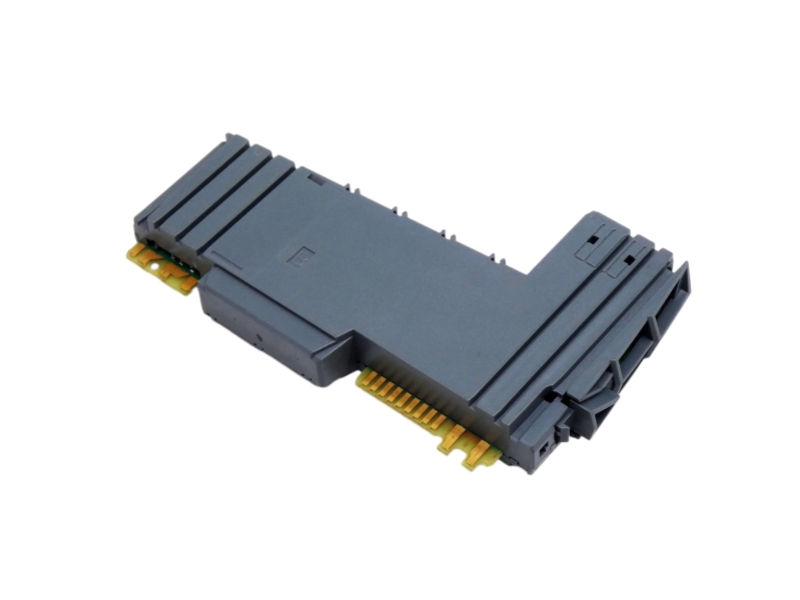

B&R X20DO2322 side view

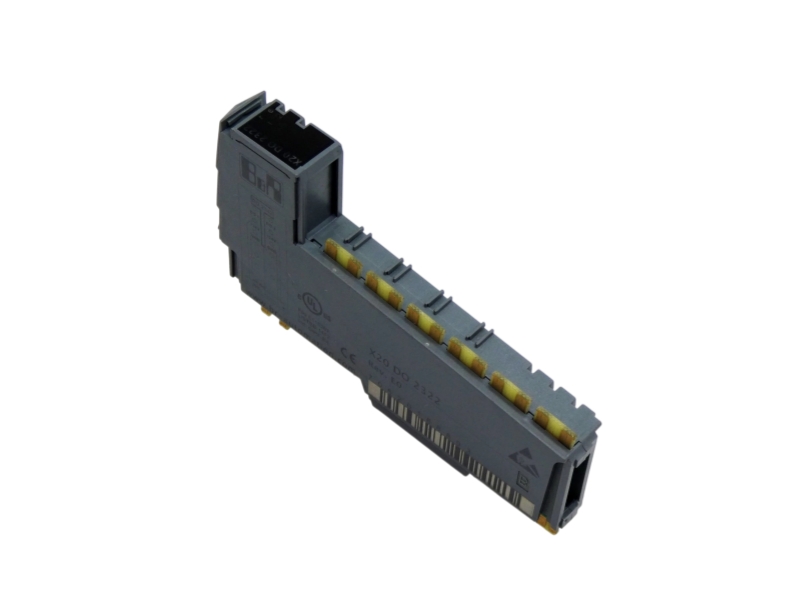

B&R X20DO2322 rear and terminal view

B&R X20DO2322 X20 2-Channel 24 VDC Digital Output Module

02
CURRENT-SOURCING FET OUTPUT

X20DO2322

B&R X20DO2322 delivers two 24 VDC sourcing outputs with monitored 3-wire connections and OSP fallback.

2 OUTPUTS24 VDC3-WIRE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20DO2322
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Electrical data, organized for selection

Engineered for dependable X20 control cabinet integration.

01
Order numberX20DO2322
B&R ID code0x1B96
Digital outputs2
Output variantCurrent-sourcing FET
Nominal voltage24 VDC
Switching voltage24 VDC -15% / +20%
Nominal output current0.5 A per output
Total nominal current1 A
Connection type3-wire connections
Output circuitSource
Switching delay 0 to 1<300 us
Switching delay 1 to 0<300 us
Resistive-load frequencyMaximum 500 Hz
Output monitoring delay10 ms
Off-state leakage current5 uA
RDS(on)210 mOhm
Peak short-circuit current<12 A
Bus power consumption0.13 W
Internal I/O consumption0.33 W
Channel-to-bus insulation500 Veff
Protection ratingIP20
Horizontal operation-25 to 60 deg C
Vertical operation-25 to 50 deg C
Storage temperature-40 to 85 deg C
Operating humidity5 to 95%, non-condensing
Module pitch12.5 +0.2 mm
02
SIGNAL JOURNEY

How the output path works

Reliable output control from the X20 station to field devices.

SIGNAL WORKBENCHCommand.
Drive.
Observe.
Fallback.

A clear operating story from controller request to protected field action.

01

Command

The X20 station transfers the requested states to two digital output data points or to one packed output byte.

02

Drive

Current-sourcing FET stages switch the positive supply path to connected 24 VDC field devices.

03

Observe

Target and actual output states are compared so channel faults can be reported to the controller.

04

Fallback

OSP behavior can retain the last valid state or apply a configured static pattern after communication is interrupted.

USE 01

CONTROL CABINETS

Add two compact sourcing outputs where an X20 station must command local 24 VDC actuators.

USE 02

MACHINE SEQUENCES

Switch field functions from controller logic while preserving per-channel status visibility.

USE 03

REMOTE I/O NODES

Use a narrow I/O slice when three conductors are required at each connected field device.

BUYER QUESTIONS

FAQ for B&R X20DO2322

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

Which terminal block and bus module are required for B&R X20DO2322?

Order one X20TB06 or X20TB12 terminal block and one X20BM11 bus module separately. B&R notes that the 12-pin terminal block can also be used for logistical reasons.

QUESTION 02

How does B&R X20DO2322 handle inductive loads?

The output stage includes an internal freewheeling diode. The installation must still follow the inductive-load limits and switching guidance in the official datasheet.

QUESTION 03

What actuator-supply arrangement is available on B&R X20DO2322?

The module provides 24 VDC and GND connections for actuator supply, including a total of 0.5 A for output-independent actuator power supply.

QUESTION 04

Can B&R X20DO2322 operate on a CAN I/O bus controller?

Yes. The official datasheet states that the module occupies one digital logical slot on CAN I/O; available registers depend on the fieldbus and controller configuration.

QUESTION 05

Is B&R X20DO2322 discontinued, and is there an official direct replacement?

B&R currently maintains an official product page and downloadable datasheet without a discontinuation notice. No direct drop-in replacement is declared there, so wiring, accessories and software configuration must be checked before substitution.

QUESTION 06

Which documentation and order details should accompany a B&R X20DO2322 quotation request?

Reference the official X20DO2322 datasheet and X20 System user's manual, then send the quantity, destination, required hardware revision, requested accessories, application context and a nameplate photo for replacement orders.
