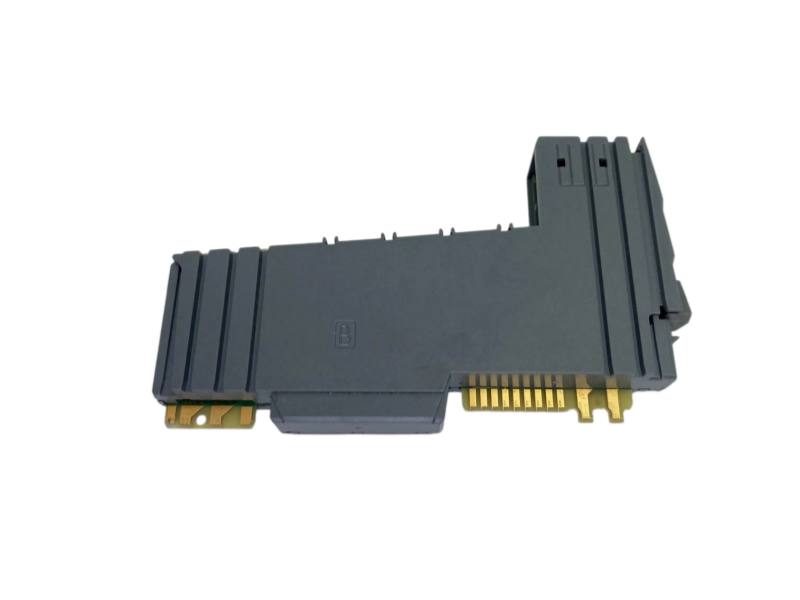

B&R X20DM9324 digital mixed I/O module front view

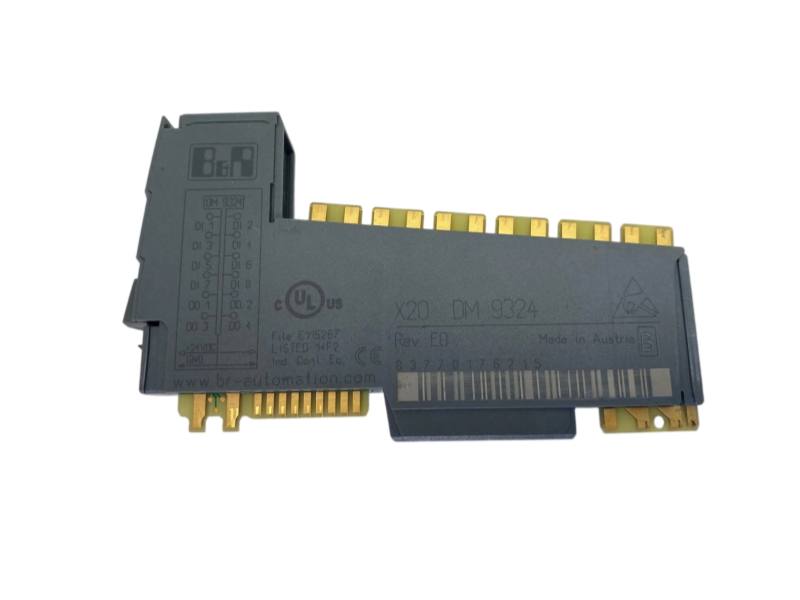

B&R X20DM9324 digital mixed I/O module side view

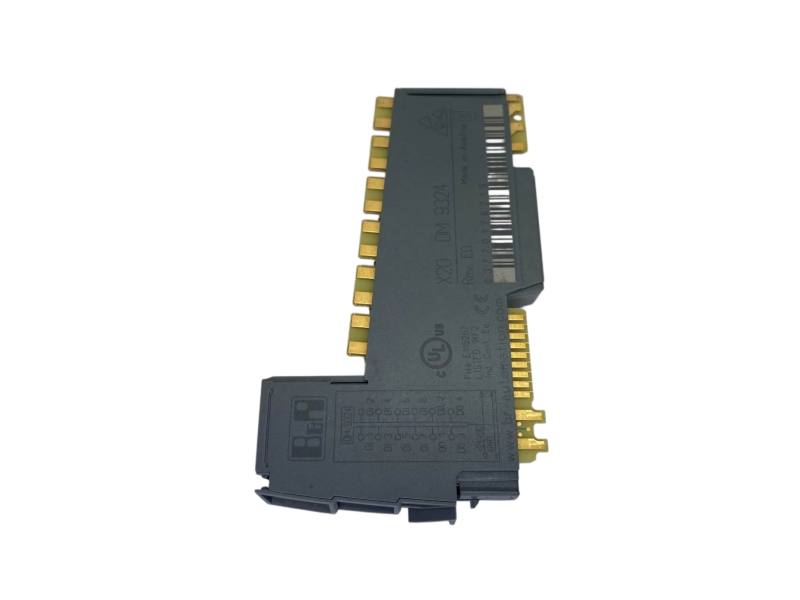

B&R X20DM9324 digital mixed I/O module connector view

B&R X20DM9324 X20 8-Input 4-Output Digital Mixed Module

X20
COMPACT INPUT AND OUTPUT INTEGRATION

X20DM9324

B&R X20DM9324 combines eight digital inputs and four protected outputs, providing space-saving sensor and actuator connectivity for compact X20 automation stations.

8 INPUTS4 OUTPUTS1-WIRE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20DM9324
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Mixed I/O and environmental data

Official input, output and installation limits for reliable X20 integration.

01
Order numberX20DM9324
Module functionDigital mixed I/O
Digital inputs8
Digital outputs4
Nominal voltage24 VDC
B&R ID code0x20B9
Bus power consumption0.21 W
Internal I/O consumption0.5 W
Input circuitSink
Input and output connections1-wire
Input voltage24 VDC -15% / +20%
Typical input current3.75 mA at 24 VDC
Typical input resistance6.4 kOhm
Input characteristicEN 61131-2 Type 1
Low switching threshold<5 VDC
High switching threshold>15 VDC
Hardware input filter<=100 us
Default software filter1 ms
Software filter range0 to 25 ms
Software filter increment0.2 ms
Output variantCurrent-sourcing FET
Nominal output current0.5 A per channel
Total nominal output current2 A
Channel-to-channel isolationNo
Switch-on and switch-off delay<300 us
Typical braking voltage50 V
Resistive-load frequencyMaximum 500 Hz
Output monitoring delay10 ms
Output leakage current5 uA when off
Typical RDS(on)210 mOhm
Peak short-circuit current<12 A
Output protectionThermal shutdown and freewheeling diode
Electrical isolationChannel isolated from bus
Protection ratingIP20
Horizontal operation-25 to 60 deg C
Vertical operation-25 to 50 deg C
Storage and transport-40 to 85 deg C
Relative humidity5 to 95%, non-condensing
Installation elevation0 to 2000 m without limitation
Module pitch12.5 +0.2 mm
02
SIGNAL JOURNEY

How mixed field signals move through X20DM9324

One compact module acquires eight states and drives four protected loads.

SIGNAL WORKBENCHAcquire.
Filter.
Switch.
Diagnose.

The signal path keeps field sensing and controlled actuation together in a single X20 station slot.

01

Acquire

Eight sink inputs receive 24 VDC field states through 1-wire connections.

02

Filter

Hardware conditioning and a configurable module-wide software filter stabilize state changes.

03

Switch

Four current-sourcing FET stages apply 24 VDC to compatible field loads.

04

Diagnose

Channel indicators and software status reveal I/O state, module operation and output faults.

USE 01

COMPACT MACHINE CELLS

Combine sensor feedback and actuator commands where cabinet width is limited.

USE 02

VALVE AND LIMIT CONTROL

Read discrete position signals while driving compatible 24 VDC solenoids from the same slice.

USE 03

REMOTE X20 STATIONS

Reduce module count in distributed nodes that need a balanced mix of inputs and outputs.

BUYER QUESTIONS

FAQ for B&R X20DM9324

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

Which field polarities are required on B&R X20DM9324 input and output channels?

The eight inputs use sink connections, while the four FET outputs are source connections; all channels use the documented 1-wire arrangement.

QUESTION 02

How can contact bounce be tuned on B&R X20DM9324?

Use the module-wide software filter from 0 to 25 ms in 0.2 ms increments; the default is 1 ms and a fast hardware filter is also present.

QUESTION 03

What happens when a B&R X20DM9324 output is overloaded or short-circuited?

Integrated thermal shutdown protects the output stage, software reports an output fault after the monitoring delay, and recovery timing depends on module temperature.

QUESTION 04

Which installation components must accompany B&R X20DM9324?

B&R specifies an X20TB12 terminal block and an X20BM11 bus module; X20BM15 is also listed as a compatible bus-module option.

QUESTION 05

Can B&R X20DM9324 consolidate separate input and output slices without engineering changes?

Not automatically. Recheck terminal assignments, sink/source polarity, filter timing, current limits, controller mapping and the required bus and terminal hardware.

QUESTION 06

Which application details establish an accurate B&R X20DM9324 quotation?

Provide quantity, destination, nameplate photos, existing bus and terminal modules, input-device polarity, output-load currents and the required delivery date.

04
SERVICE PROMISE

Why Choose Us

Professional sourcing support built around quality and trust.

OUR STANDARDPractical support, measured by the details.
01

Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.

02

The highest quality product.

03

Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense. Each item undergoes rigorous testing before delivery.

04

Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.

05

Quickly deliver all products within 1-3 days after placing an order. Most goods will be delivered to you in a timely manner through DHL's fastest service.

06

Good packaging ensures transportation safety and greatly saves transportation costs.
