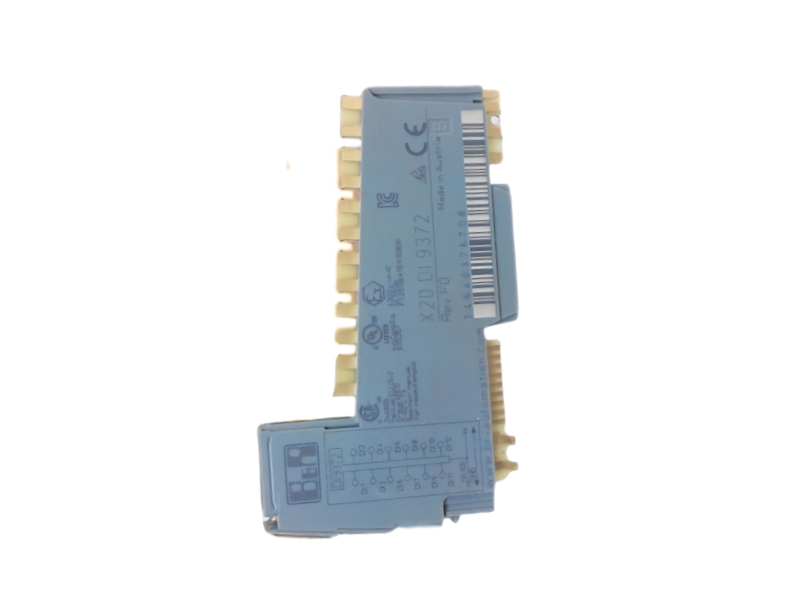

B&R X20DI9372 front view

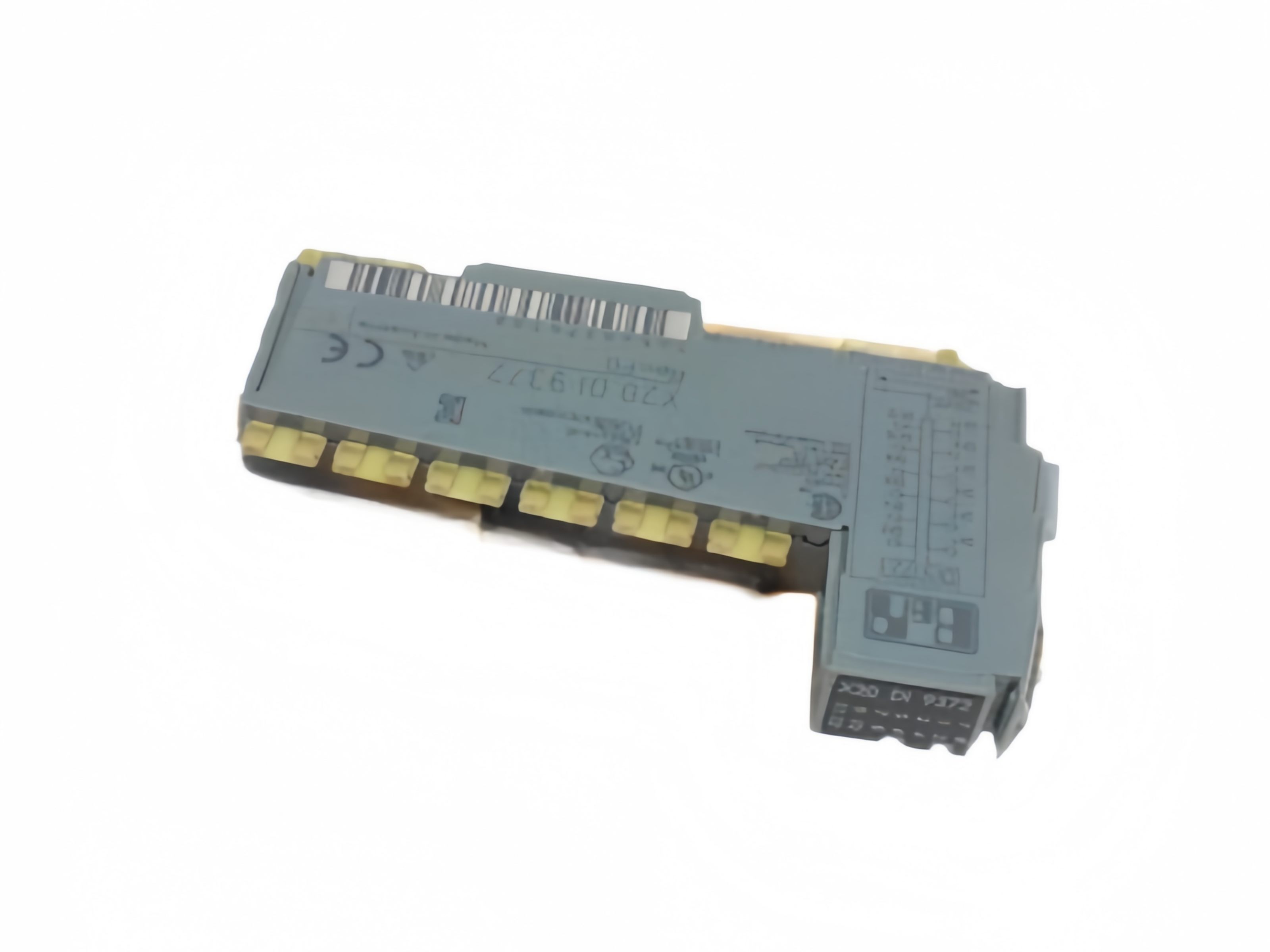

B&R X20DI9372 alternate view
B&R X20DI9372 product detail

B&R X20DI9372 X20 12-Channel 24 VDC Digital Input Module

COMPACT DIGITAL SIGNAL ACQUISITION
12 INPUTS1-WIRE

X20DI9372

B&R X20DI9372 provides twelve 24 VDC source inputs with Type 1 switching and configurable filtering for compact one-wire X20 stations.

PRODUCT ENQUIRY

Twelve field states in one narrow slice.

Inquire Nowab@mooreplc.com
Brand New Original
One Year Warranty
Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20DI9372
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL TECHNICAL DATA

Digital input and environmental specifications

Official channel, threshold, timing, insulation and mounting data for the exact X20 module.

Number of inputs12Channel-to-channel isolationNot isolated
Input type24 VDC sourceHorizontal operating range-25 to 60°C
Connection technology1-wireVertical operating range-25 to 50°C
Input characteristicEN 61131-2 Type 1Storage / transport-40 to 85°C
Nominal input voltage24 VDC, -15% / +20%Degree of protectionIP20
Typical input current3.75 mAModule pitch12.5 + 0.2 mm
Input resistance6.4 kΩB&R ID code0x1D28
Low-level thresholdLess than 5 VMounting orientationsHorizontal and vertical
High-level thresholdGreater than 15 VElevation to 2000 mNo limitation
Hardware input filter100 µs or lessElevation deratingAbove 2000 m, reduce ambient temperature 0.5°C per 100 m
Software filter range0 to 25 ms in 0.2 ms stepsRelative humidity5 to 95%, non-condensing
Default software filter1 msDiagnosticsModule run/error via LED status indicator and software
Bus power consumption0.18 WStatus indicatorsI/O function per channel, operating state and module status
Internal I/O power consumption1.75 WHazardous-area approvalATEX Zone 2 and cCSAus Class I Division 2
Channel-to-bus insulation500 VeffMandatory accessoriesX20TB12 terminal block and X20BM11 or X20BM15 bus module
02FUNCTION PATH

How X20DI9372 brings field states into control logic

The high-density input slice receives source signals, applies selectable timing and transfers stable channel states over the X20 bus.

01

Connect

Twelve field contacts or sensors are wired through the required X20 terminal block in a compact one-wire arrangement.

02

Detect

Each channel evaluates the incoming level against the specified Type 1 switching thresholds.

03

Filter

Hardware conditioning and a configurable software delay suppress pulses that should not reach the controller.

04

Transfer

Validated channel states pass across the X20 bus for sequence logic, interlocking and diagnostics.

MACHINE STATUS COLLECTIONAcquire limit switches, auxiliary contacts and discrete sensor states in dense cabinets.
CONVEYOR INTERLOCKINGBring multiple presence and permissive signals into an X20 control station.
DISTRIBUTED EQUIPMENT MONITORINGReduce panel space where many standard 24 V field states are required.
03BUYER QUESTIONS

FAQ for B&R X20DI9372

Configuration and operating decisions
Replacement and compatibility checks
Documentation and quotation support

Direct answers for selection, integration, replacement and sourcing decisions.

Q01

What kind of field device signal is expected by B&R X20DI9372?

B&R specifies twelve 24 VDC source inputs with EN 61131-2 Type 1 characteristics, so sensor output type and common wiring must match that input concept.

Q02

How does the software filter of B&R X20DI9372 affect fast input events?

The selectable delay can reject short changes before they reach the process image; choose a setting from the documented range that preserves the fastest valid machine signal.

Q03

Are the twelve channels of B&R X20DI9372 electrically isolated from one another?

No. The channels are not isolated from each other, although B&R specifies isolation between the channel group and the X20 bus.

Q04

Which base and terminal components are required for B&R X20DI9372?

B&R requires an X20TB12 terminal block and an X20BM11 or X20BM15 bus module, ordered separately from the electronic module.

Q05

Can B&R X20DI9372 replace a lower-density digital input slice with no project revision?

Not automatically. Check channel mapping, one-wire field connections, base and terminal type, filter settings, electrical grouping and Automation Studio hardware configuration.

Q06

Which details should accompany a B&R X20DI9372 manual and price request?

Provide the full module and revision label, X20 base and terminal numbers, sensor output type, required filter behavior, quantity and shipping destination.
