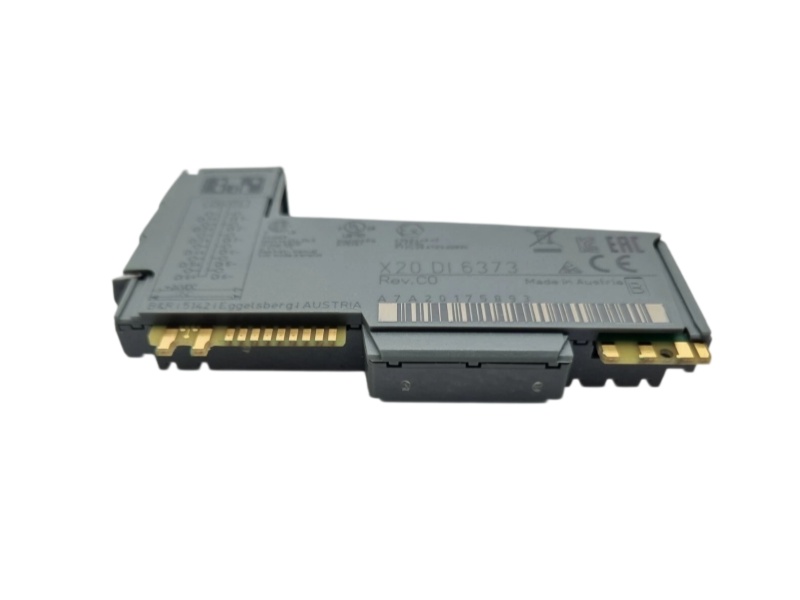

B&R X20DI6373 digital input module view 1

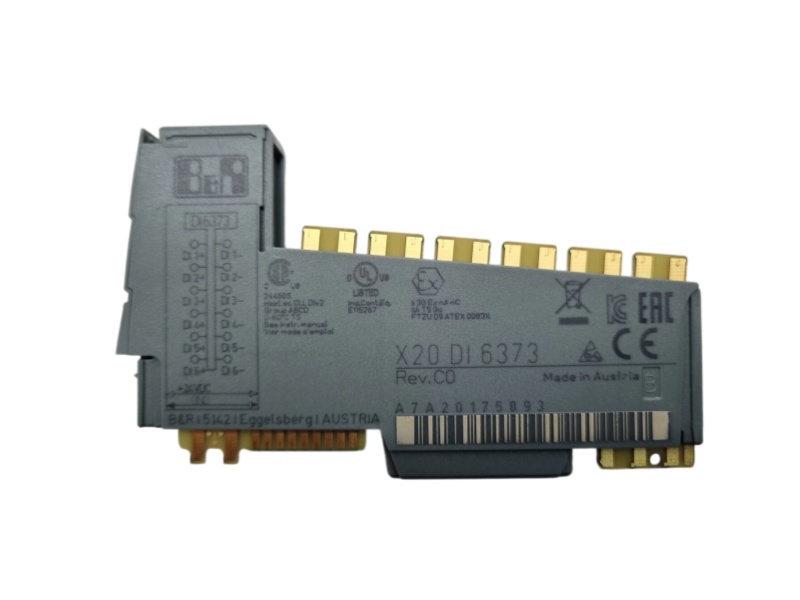

B&R X20DI6373 digital input module view 2

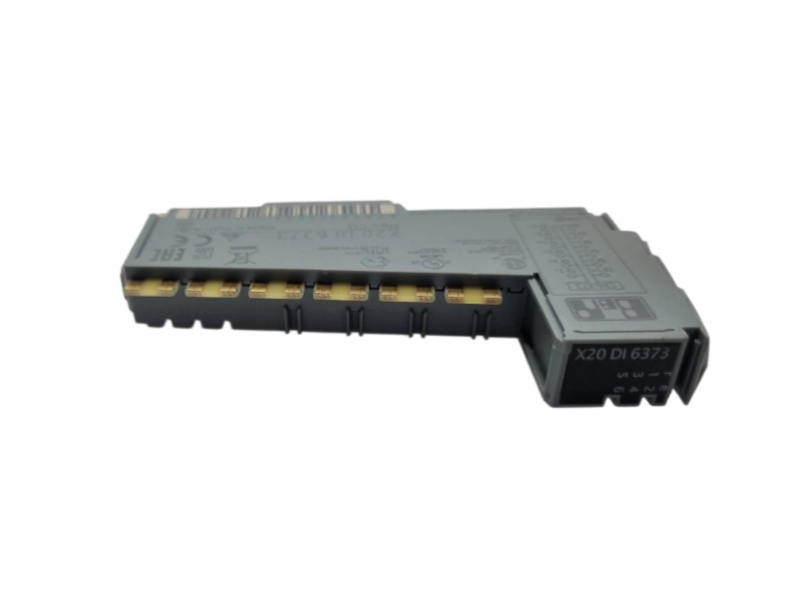

B&R X20DI6373 digital input module view 3

B&R X20DI6373 X20 6-Channel Floating Digital Input Module

X20
FLOATING 24 VDC SIGNAL ACQUISITION

X20DI6373

B&R X20DI6373 is a six-channel digital input module for floating 24 VDC sink or source signals, with configurable filtering for reliable acquisition in X20 stations.

6 INPUTS24 VDCTYPE 1
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20DI6373
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Input and environmental data

Floating channels and configurable timing for flexible field wiring.

01
Order numberX20DI6373
B&R ID code0xA7A2
Digital inputs6
Input typeFloating
Nominal input voltage24 VDC
Input voltage tolerance24 VDC -15% / +20%
EN 61131-2 input typeType 1
Connection characteristicSink or source
Typical input current3.75 mA
Typical input resistance6.4 kΩ
Low signal level<5 VDC
High signal level>15 VDC
Hardware input filter≤100 µs
Default software filter1 ms
Software filter range0 to 25 ms
Software filter increment0.2 ms
Bus power consumption0.15 W
External I/O consumption0.88 W
Channel-to-bus insulation500 Veff
Protection ratingIP20
Horizontal operation-25 to 60 °C
Vertical operation-25 to 50 °C
Storage and transport-40 to 85 °C
Relative humidity5 to 95%, non-condensing
Installation elevation0 to 2000 m without limitation
Module pitch12.5 +0.2 mm
02
SIGNAL JOURNEY

How floating field signals enter the controller

A clear acquisition path from sensor wiring to filtered process data.

SIGNAL WORKBENCHSense.
Isolate.
Filter.
Deliver.

Each stage preserves dependable state detection across configurable 24 VDC field inputs.

01

Sense

Six floating channels accept sink or source field signals within the documented thresholds.

02

Isolate

Galvanic separation keeps the field-side input group apart from the X20 bus electronics.

03

Filter

Hardware conditioning and a configurable software delay suppress unwanted transitions.

04

Deliver

The validated channel states and diagnostics become available to the controller application.

USE 01

MIXED-POLARITY SENSORS

Connect supported sinking or sourcing devices where wiring polarity varies by machine section.

USE 02

REMOTE I/O

Collect discrete field states close to equipment through a narrow X20 slice.

USE 03

MACHINE INTERLOCKS

Bring supervised limit, presence and auxiliary contacts into controller logic.

BUYER QUESTIONS

FAQ for B&R X20DI6373

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

Can B&R X20DI6373 accept both sinking and sourcing sensors?

Yes. B&R identifies the six inputs as floating and suitable for sink or source connections when wired within the documented electrical limits.

QUESTION 02

How is input delay configured on B&R X20DI6373?

The module combines a fast hardware filter with software filtering that can be selected in defined 0.2 ms increments through the controller configuration.

QUESTION 03

Which bus and terminal components are used with B&R X20DI6373?

Select the bus module and terminal block listed in the official X20 documentation, then verify the channel wiring diagram for the chosen sinking or sourcing connection.

QUESTION 04

Where does B&R X20DI6373 provide the greatest wiring benefit?

It is useful when a compact X20 node must acquire isolated discrete signals whose field polarity cannot be handled by a common-potential input group.

QUESTION 05

Is there an official drop-in substitute for B&R X20DI6373?

The official product page does not declare a universal drop-in replacement; confirm input polarity, filter behavior, isolation, terminal assignment and software mapping before changing modules.

QUESTION 06

What information is needed to quote B&R X20DI6373 for a retrofit?

Provide quantity, destination, module label, X20 bus-controller type, sensor output style, existing terminal block and the required delivery date.
