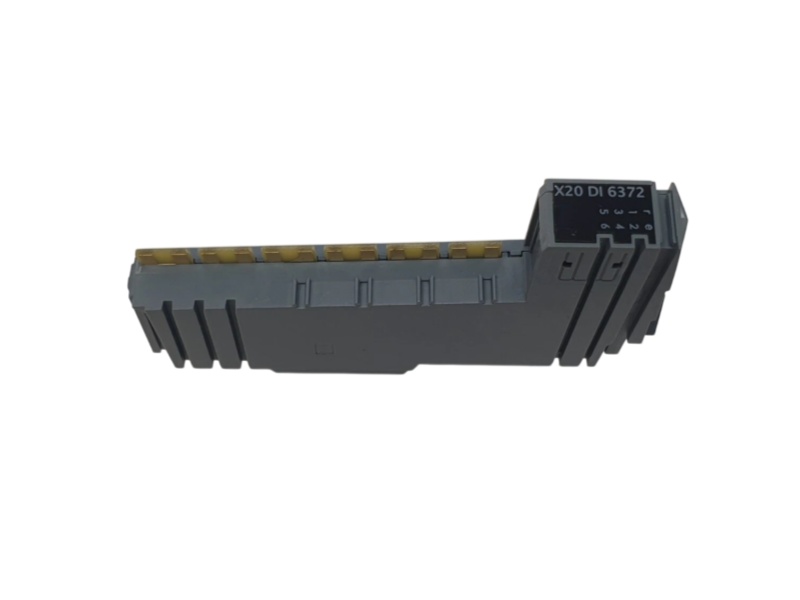

B&R X20DI6372 6-channel digital input module front view

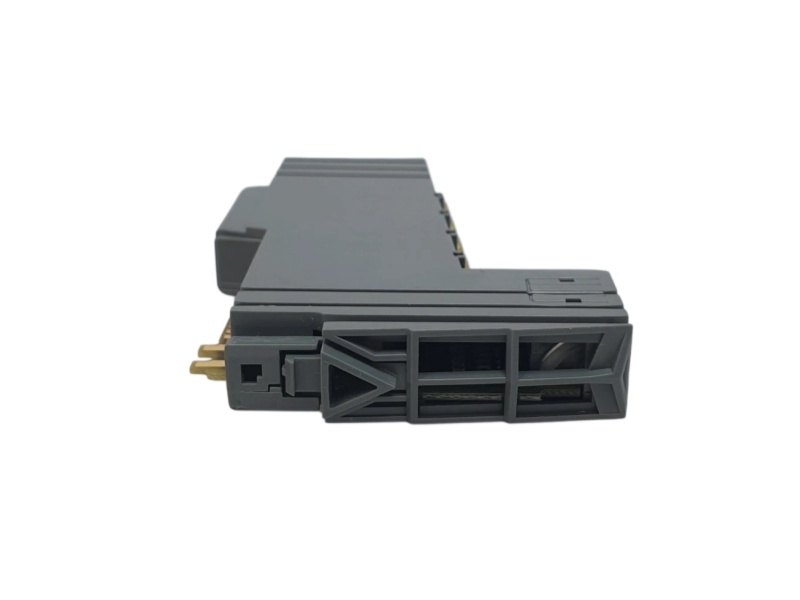

B&R X20DI6372 industrial digital input module side view
B&R X20DI6372 X20 module terminal interface view

B&R X20DI6372 X20 6-Channel 24 VDC Digital Input Module

B&R X20 DIGITAL INPUT

X20DI6372

B&R X20DI6372 combines six filtered 24 VDC source inputs with configurable software filtering, one- or two-wire sensor connections and dependable signal acquisition for distributed X20 machine I/O.

06Digital inputs
24 VDCNominal input
1 / 2Wire options
0-25 msSoftware filter
+Integrity Supply+One Year Warranty+Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20DI6372
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
VERIFIED TECHNICAL DATA

Six-channel source-input specifications

Verified B&R engineering data.

Digital input channels6
Signal topologySource input circuit
Nominal input voltage24 VDC
Permitted input voltage24 VDC -15% / +20%
Input characteristicType 1 per EN 61131-2
Field connection1- or 2-wire connections
Input current at 24 VDCTypically 3.75 mA
Input resistanceTypically 6.4 kOhm
Low switching thresholdBelow 5 VDC
High switching thresholdAbove 15 VDC
Hardware input filter100 microseconds maximum
Default software filter1 ms
Software-filter range0 to 25 ms
Filter setting increment0.2 ms in the technical-data table
Filter configuration scopeOne register sets all six inputs
Input sampling interval200 microseconds
Network-related filter jitterUp to 50 microseconds
Minimum cycle without filtering100 microseconds bus-cycle limit
Minimum cycle with filtering150 microseconds
Minimum I/O update without filter100 microseconds I/O-refresh limit
Minimum I/O update with filter200 microseconds I/O-refresh limit
Filter registerConfigOutput01
Standard-function mappingIndividual bits or one packed USINT
Packed input value0 to 63
Bus-controller input mappingUSINT with DigitalInput01 to DigitalInput06
CAN I/O occupancy1 digital logical slot
Channel-to-bus insulation500 Veff
Electrical isolationInput group isolated from bus
Channel-to-channel isolationNot isolated
Bus power consumption0.15 W
Internal I/O consumption0.88 W
Run/error diagnosticsLED indication and software
Status indicationPer-channel I/O, operating state and module status
B&R ID code0x1B94
Horizontal operating temperature-25 to 60 degrees C
Vertical operating temperature-25 to 50 degrees C
Storage and transport temperature-40 to 85 degrees C
Relative humidity5 to 95%, non-condensing
Degree of protectionIP20 per EN 60529
Installation altitudeNo limitation from 0 to 2000 m
Altitude deratingReduce ambient limit by 0.5 degrees C per 100 m above 2000 m
Module pitch12.5 +0.2 mm
Terminal-block optionsX20TB06 or X20TB12, ordered separately
Bus-module optionsX20BM11 or X20BM15, ordered separately
Six-pin terminal useUniversal 1-line wiring
Twelve-pin terminal use2-line wiring
Mounting orientationHorizontal or vertical
General approvalsCE, UKCA, UL, CCS, LR, KR, ABS, BV and KC
ATEX classificationZone 2, II 3G Ex nA nC IIA T5 Gc
Hazardous-location approvalClass I, Division 2, Groups ABCD, T5
02
SIGNAL PATH

From field connection to controller image

Guidance from wiring to startup.

01

Connect

Select X20TB06 for universal one-line wiring or X20TB12 for two-line field connections.

02

Filter

Reject short disturbance pulses with one software-filter value applied across the six input channels.

03

Sample

Capture the filtered or unfiltered state at a fixed offset to the X20 network cycle.

04

Map

Expose channel states individually or as a packed USINT in the controller process image.



Machine-state collection

Acquire six source-compatible 24 VDC sensor or switch states for compact machine sequences.



Distributed X20 stations

Add a narrow digital-input slice where flexible one-line or two-line termination is required.



Noise-managed interlocks

Apply a shared input delay when short electrical disturbances should not reach control logic.

03
BUYER DECISION GUIDE

X20DI6372 questions answered

Clear purchasing guidance.

Q

Which terminal arrangement gives B&R X20DI6372 one-line or two-line sensor wiring?

Use X20TB06 for universal one-line wiring or X20TB12 for two-line wiring. The terminal block and the selected X20 bus module are ordered separately.

Q

Why must field-device polarity be checked before installing B&R X20DI6372?

B&R specifies a source input circuit, so the sensor or switching device and the common-potential arrangement must match the official connection diagram before power is applied.

Q

How does one filter value shape every input on B&R X20DI6372?

The ConfigOutput01 register applies one software-filter value to all six channels. The documented range is 0 to 25 ms, with 1 ms used as the default.

Q

Which hardware and settings should follow a B&R X20DI6372 replacement?

Preserve the exact material number, terminal and bus modules, channel mapping, packed-input choice, filter value, common wiring, mounting orientation and Automation Studio hardware entry.

Q

Does current B&R documentation identify X20DI6372 as discontinued?

The official product page remains available with current documentation and hardware-upgrade files and shows no discontinuation notice. Confirm purchasable supply and the offered condition when requesting a quotation.

Q

What should accompany an RFQ for B&R X20DI6372 and its official manual?

Provide the nameplate photo, station layout, sensor wiring, terminal and bus-module requirements, Automation Studio version, quantity, condition, delivery country and requested documentation language.
