Name: B&R X20DI0471 X20 digital input module
Availability: InStock

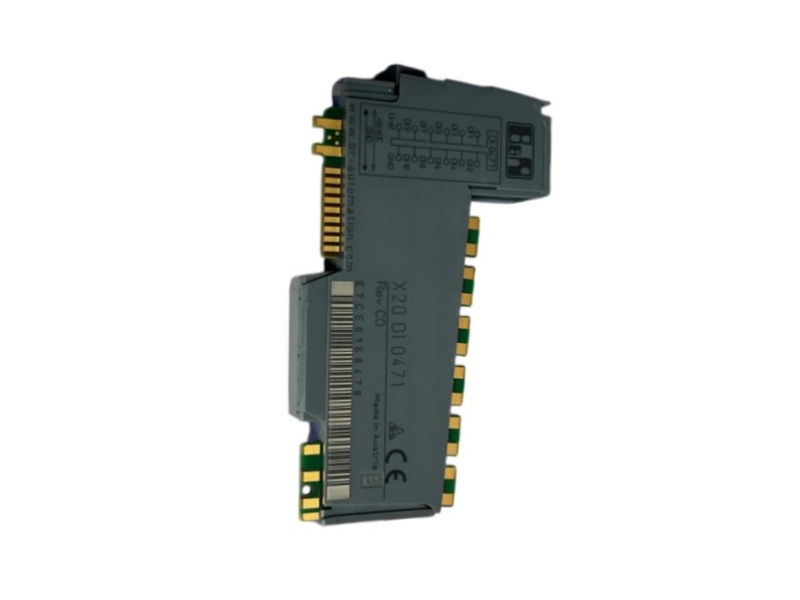

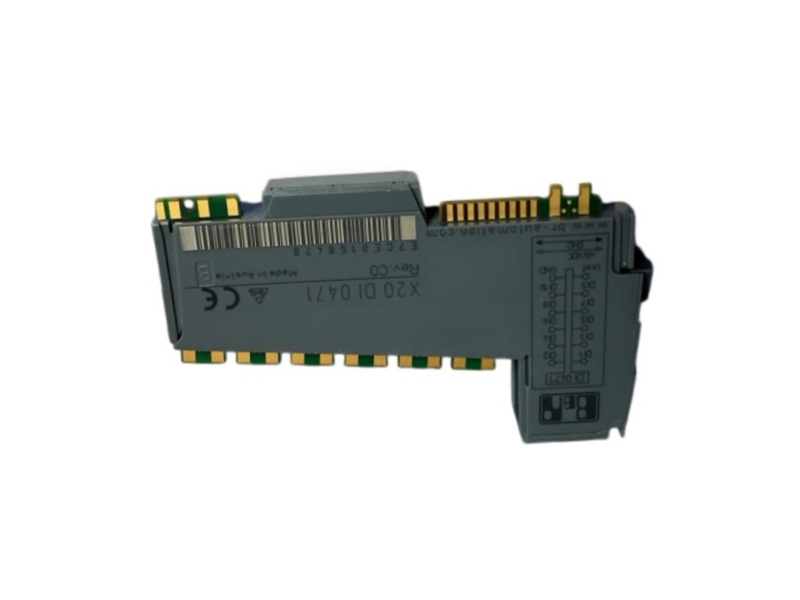

B&R X20DI0471 X20 digital input module

B&RX20

X20DI0471

DIGITAL INPUT MODULE

X20DI0471

B&R X20DI0471 is a 10-channel digital input module for 5–48 V DC sink signals, configurable filtering and modular X20 stations.

10 INPUTS5–48 V DCSINK TYPE

SYSTEM FITModular X20 sensing

CHANNELS10 DI

INPUT RANGE5–48 V

ORDER CHECKX20 input slice

Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Electrical specifications

Official values for selection and installation

ManufacturerB&R

Catalog numberX20DI0471

Product familyX20 digital input module

Input channelsDigital input channels

Input type5–48 V DC

Input range5–48 V DC

FilterHardware ≤100 μs; software 0–25 ms

Terminal blockX20TB12 mandatory

Bus moduleX20BM11 or X20BM15 mandatory

Pitch12.5 mm +0.2 mm

MountingX20 modular station

ApplicationDistributed digital sensing

DiagnosticsRun/error via LED and software

Bus power consumption0.3 W

Internal I/O consumption0.6 W

External I/O consumption0.94 W

B&R ID code0xE7CE

Hardware input filter≤100 μs

Software input filter0–25 ms in 0.2 ms increments

Switching thresholdsLow ≤0.2×Uref; high ≥0.6×Uref

Applications & integration

Three decision lenses for X20 station builders.

01 / FIELD INPUTS

Discrete sensor capture

Collect 5–48 V DC switching signals from sensors, switches and machine status contacts.

02 / MODULAR I/O

X20 station expansion

Place the slice beside the required bus module and terminal block in an X20 modular station.

03 / SIGNAL QUALITY

Filtered state detection

Use the configurable software filter when contact bounce or fast transients affect input stability.

Frequently asked questions

Answers for wiring, compatibility and quotation checks.

How many channels does X20DI0471 provide?

X20DI0471 provides 10 digital input channels in a compact X20 I/O slice.

What signal range is accepted by X20DI0471?

The input range is 5–48 V DC, suitable for a broad range of field sensors and switching signals.

Which wiring style is used on X20DI0471?

The module uses one-wire sink inputs; confirm the field common and sensor polarity before wiring.

Which X20 accessories are required with X20DI0471?

B&R identifies X20TB12 as the mandatory terminal block and X20BM11 as the mandatory bus module; X20BM15 is an alternative bus module.

What does the software filter change on X20DI0471?

The configurable software filter suppresses unwanted transitions so the controller receives cleaner digital states.

What information helps quote X20DI0471?

Send the exact model, required X20 terminal and bus modules, quantity, destination, and the field voltage so the configuration can be checked.
