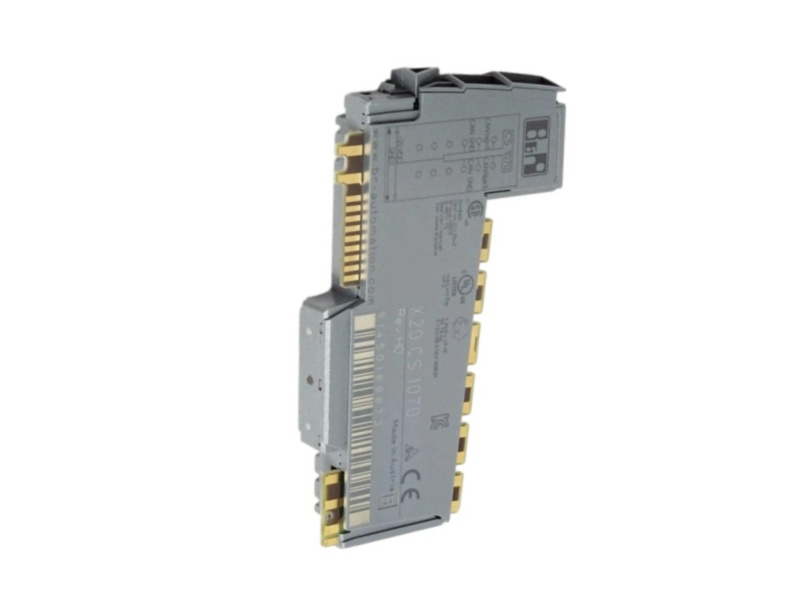

B&R X20CS1070 CAN Bus Communication Module product view

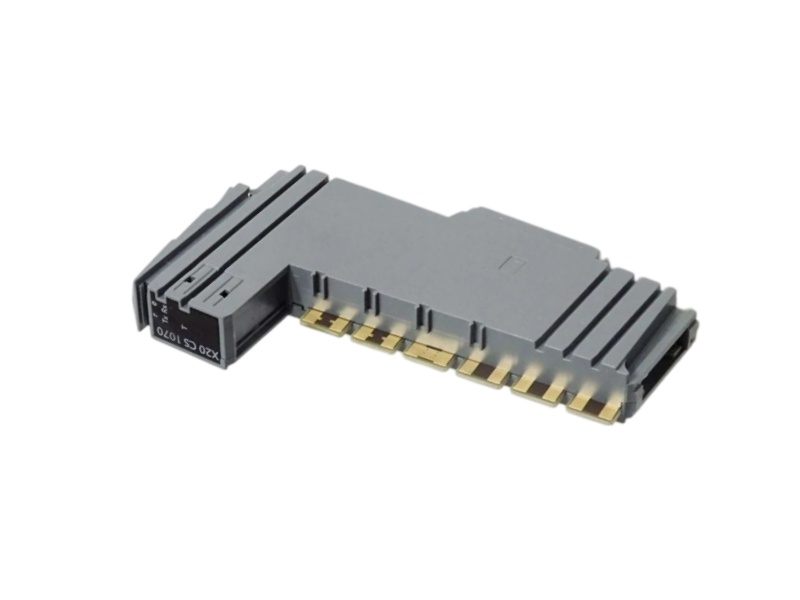

B&R X20CS1070 CAN Bus Communication Module alternate view
B&R X20CS1070 label and connection view

B&R X20CS1070 X20 CAN Bus Communication Module


PRODUCT ENQUIRY

Isolated CAN communication for X20

Inquire Nowab@mooreplc.com →
B&RCAN BUS MODULE

X20CS1070

B&R X20CS1070 is an isolated CAN interface module with integrated bus termination for reliable communication in X20 automation systems.

●  One Year Warranty●  Fast Delivery●  Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20CS1070
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL ENGINEERING DATA

CAN interface and operating specifications

The data table separates network limits, isolation and X20 installation requirements.

B&R ID code0x1FD1Communication channel1 CAN bus interface
CAN controllerSJA 1000Maximum transfer rate1 Mbit/s
Maximum bus distance1000 mTerminating resistorIntegrated in the module
Terminal connection12-pin X20TB12Electrical isolationCAN isolated from bus and I/O supply
Bus power consumption0.01 WInternal I/O consumption1.44 W
Status indicatorsTransfer, termination, operating state and module statusRun/error diagnosticsLED indicator plus software status
MountingHorizontal or verticalInstallation altitude0 to 2000 m without limitation
Altitude derating0.5°C per 100 m above 2000 mDegree of protectionIP20
Horizontal operation-25 to 60°CVertical operation-25 to 50°C
Storage / transport-40 to 85°CRelative humidity5 to 95%, non-condensing
Required bus moduleX20BM11; X20BM15 also listed as compatibleModule pitch12.5 +0.2 mm
02
FROM INPUT TO CONTROL

How X20CS1070 extends CAN communication

The module converts X20 station data into an isolated CAN connection for remote devices.

01

Configure

Automation Studio defines the CAN timing and process-data behavior required by the application.

02

Isolate

The interface separates the CAN channel electrically from the X20 bus and I/O supply.

03

Terminate

The integrated resistor closes the bus when the module occupies the physical end of the segment.

04

Monitor

Dedicated indicators show data transfer, termination, operating state and module condition.

ENGINEERING FIT
FIT 01

Remote CAN devices

Connect complex CAN devices serially to an X20 station.

FIT 02

Long bus segments

Balance transfer rate, cabling and topology for distances up to the documented maximum.

FIT 03

Serviceable network ends

Use the built-in termination status where the module closes a CAN segment.

03
BUYER QUESTIONS

FAQ for B&R X20CS1070

Model-specific answers support engineering and purchasing decisions.

01

When should the integrated resistor in B&R X20CS1070 be enabled?

Enable termination only when X20CS1070 is installed at a physical end of the CAN segment; avoid duplicate termination in the middle of the bus.

02

Can B&R X20CS1070 run at 1 Mbit/s over the full 1000 m distance?

No single rate-distance combination should be assumed. B&R states separate maxima of 1 Mbit/s and 1000 m, so CAN cabling rules determine the usable pair.

03

Which base and terminal hardware are needed for B&R X20CS1070?

B&R instructs users to order an X20BM11 bus module and either X20TB06 or X20TB12 terminal block separately; the CAN interface uses X20TB12.

04

What isolation boundary does B&R X20CS1070 provide?

The CAN IF1 channel is galvanically isolated from the X20 bus and the I/O power supply.

05

Which network settings must be retained when exchanging B&R X20CS1070?

Preserve the baud rate, node addressing, object mapping, termination state, Automation Studio hardware revision and connected-device timing.

06

What should a B&R X20CS1070 quotation request include for documentation review?

Provide the X20 CPU, Automation Studio version, CAN bitrate, topology, terminal block, bus module, quantity and destination.

04
GLOBAL AUTOMATION SOURCING

About Company

Experience, transparency and service build long-term cooperation.

COMPANY 01

Years of Global Experience

With 20+ years of industry experience, we serve customers worldwide and have built long-term relationships across the UK, Russia, UAE, India, Venezuela, and more.

COMPANY 06

Your Trusted Automation Partner

From a single replacement part to complete automation projects, we are ready to support your needs and build a long-term partnership.

02

Professional Support Team

Our experienced team provides reliable pre-sales and after-sales support, helping customers select suitable products and resolve purchasing concerns.

03

Wide Range of Brands

We supply leading automation brands covering PLCs, DCS, I/O modules, drives, motors, power supplies, communication modules, and more.

04

Large In-Stock Inventory

A wide range of products is available from stock, including discontinued, obsolete, and hard-to-find parts, helping reduce sourcing time.

05

Honesty & Trust

We value long-term cooperation and treat every customer with honesty, respect, responsibility, and care.

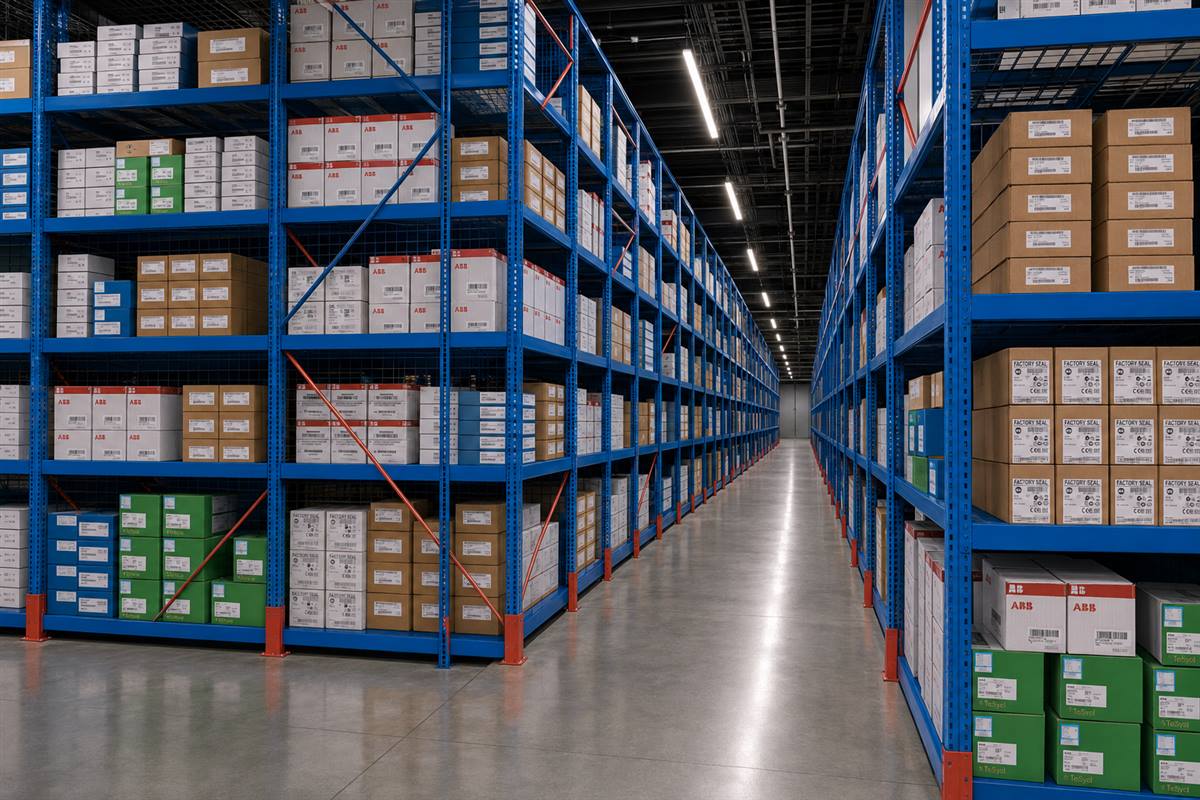

Industrial automation warehouse
05
SUPPORT AFTER DELIVERY

After-Sales Support

Responsive support helps protect uptime after delivery.

01

Warranty Support

Most products are covered by a warranty of up to 12 months, subject to the applicable terms and conditions. If any product-related issue occurs during the warranty period, our team will assist you and provide an appropriate solution.

02

Technical Documentation

Relevant datasheets and technical literature can be provided with the goods, offering useful information for product identification, installation, operation, and maintenance.

03

Fast Response

We understand the importance of minimizing equipment downtime. Our team responds promptly to inquiries and provides professional assistance with product information, quotations, order status, shipping, and after-sales questions.

04

Global Customer Service

We serve customers worldwide and provide reliable assistance from inquiry to delivery and after-sales service, ensuring clear and timely communication throughout the process.

05

Long-term Spare Parts Supply

We continue to source discontinued, obsolete, and hard-to-find automation parts from various brands, helping customers maintain existing equipment and reduce downtime caused by spare parts shortages.

06
MULTI-BRAND SOURCING

More automation models

Send mixed requirements for coordinated sourcing support.

01AEM-24AT
02ABE7H16C21
03MFD44J1
04ULX1-R4
05IC200CHS002D
06JL669A
07HDR-40
08KX-T96170
09MTL5546Y
10M2150-2DBC
11ES5D001VST00
12UDS1100002-01
13H4W4PRV2
14LNL-1100
15SER8350A0B00
16NC-540-1-1-5
17Fg5965-11
18IODEXP-A03L
19FM562
208L501-101
21390EVO
22QBM3020-5
23620TVL
24BSS-310A
25g34296470800
26SDV144-S33
27TS5810N
286FL43013CA11
29Luna-TFT43
30APJ6385
31H6Z0812
321AK23152AAAA
33EKA163B
34JACP-317120
35MCX06D
36ET1111-F-MT
37CLTG38EXPN01
38CAN-5901
39DO801
REQUEST A QUOTE

Discuss your X20CS1070 requirement

SALES MANAGERMay

Related Products

X20BR9300 front view
B&R X20BR9300 X2X Link Bus Receiver

B&R / X2X LINK BUS RECEIVEROFFICIAL DATA X20BR9300 B&R X20BR9300 is a bus receiver that powers remote X20 I/O stations while transmitting X2X Link data, field power, and diagnostic information. ✓In Stock ✓Top Quality 24VDC input 7W X2X output 10A I/O contact load 01far-left slot PRODUCT ENQUIRYInquire Now↗

Details
B&R X20AT6402 thermocouple input module front view
B&R X20AT6402 X20 6-Channel Thermocouple Input Module

  PRODUCT ENQUIRY X20 temperature sourcing Inquire Nowab@mooreplc.com → B&R X20THERMOCOUPLE INPUT X20AT6402 B&R X20AT6402 provides six thermocouple inputs for compact, reliable temperature monitoring and control in X20 automation systems. ●  One Year Warranty●  Fast Delivery●  Worldwide Shipping

Details
B&R X20DI6372 6-channel digital input module front view
B&R X20DI6372 X20 6-Channel 24 VDC Digital Input Module

B&R X20 DIGITAL INPUT X20DI6372 B&R X20DI6372 combines six filtered 24 VDC source inputs with configurable software filtering, one- or two-wire sensor connections and dependable signal acquisition for distributed X20 machine I/O. 06Digital inputs 24 VDCNominal input 1 / 2Wire options 0-25 msSoftware filter +Integrity Supply+One Year Warranty+Fast Delivery PRODUCT ENQUIRY Matched X20 quotation Inquire Now Lead time2-3 DAYS

Details
B&R X20BB32 Fieldbus CPU Bus Module product view
B&R X20BB32 X20 Fieldbus CPU Bus Module

  PRODUCT ENQUIRY Fieldbus CPU backplane and RS232 base Inquire Nowab@mooreplc.com → B&RX20 BUS MODULE X20BB32 B&R X20BB32 is a powered bus base with an integrated RS232 interface for connecting and supporting X20 Fieldbus CPUs. ●  One Year Warranty●  Fast Delivery●  Worldwide Shipping

Details
B&R X20CS1070 CAN Bus Communication Module product view
B&R X20CS1070 X20 CAN Bus Communication Module

  PRODUCT ENQUIRY Isolated CAN communication for X20 Inquire Nowab@mooreplc.com → B&RCAN BUS MODULE X20CS1070 B&R X20CS1070 is an isolated CAN interface module with integrated bus termination for reliable communication in X20 automation systems. ●  One Year Warranty●  Fast Delivery●  Worldwide Shipping

Details

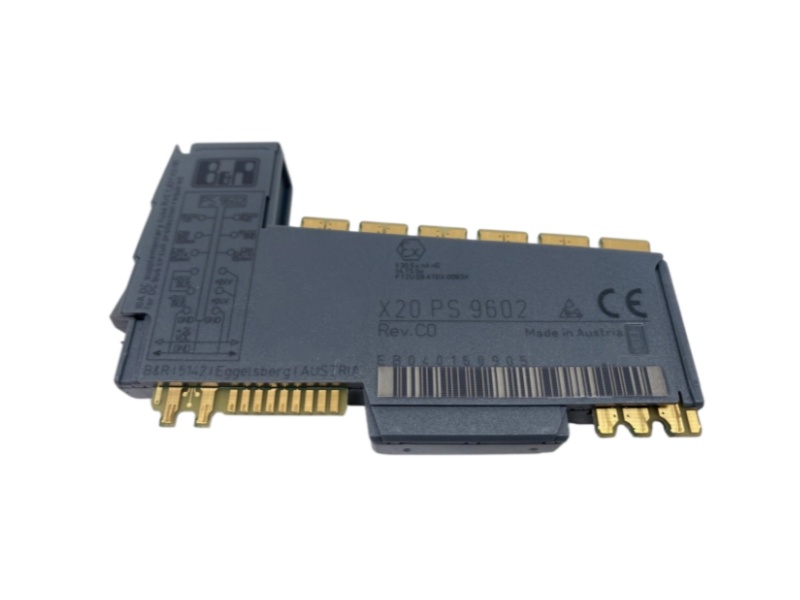

B&R X20PS9602 PLC Power Supply Module product view
B&R X20PS9602 Compact-S PLC Power Supply Module

  PRODUCT ENQUIRY Compact-S CPU and X2X power distribution Inquire Nowab@mooreplc.com → B&RCOMPACT-S POWER X20PS9602 B&R X20PS9602 is a 24 VDC Compact-S supply with serial and CAN interfaces. ●  One Year Warranty●  Fast Delivery●  Worldwide Shipping

Details

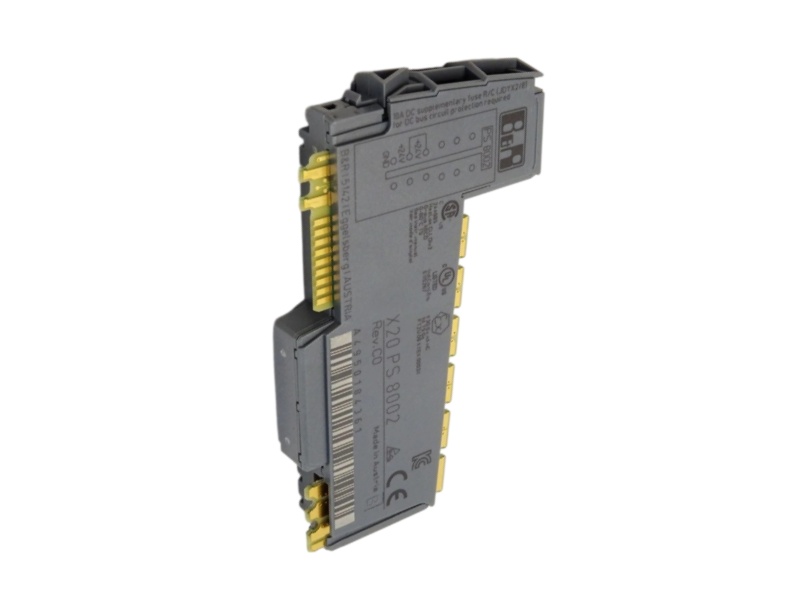

B&R X20PS8002 power supply module front view
B&R X20PS8002 X20 24 VDC Power Supply Module

B&R X20 SYSTEM POWER X20PS8002 B&R X20PS8002 supplies protected 24 VDC power to standalone X20 devices, including X20 hub and link-selector installations, with overload monitoring and module-level status diagnostics. 24 VDCNominal input 7 WPeak output IP20Protection 12.5 mmModule pitch +Integrity Supply+One Year Warranty+Fast Delivery PRODUCT ENQUIRY Matched X20 power quotation Inquire Now Lead time2-3 DAYS

Details

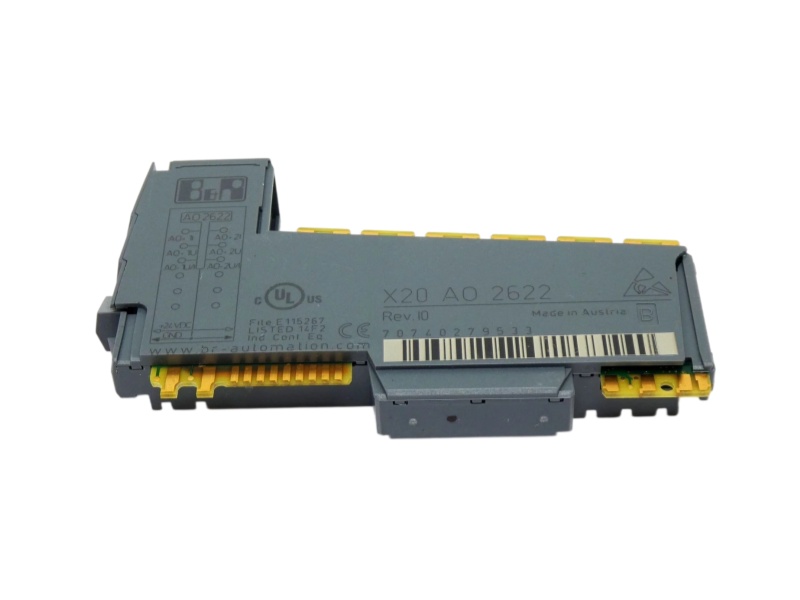

B&R X20AO2622 analog output module front view
