Name: B&R X20CS1030 RS485/RS422 Communication Module
Availability: InStock

B&R X20CS1030 RS485/RS422 Communication Module

B&R / X20 SYSTEMSERIAL COMMUNICATION

RS485 / RS422 CHANNEL

X20CS1030

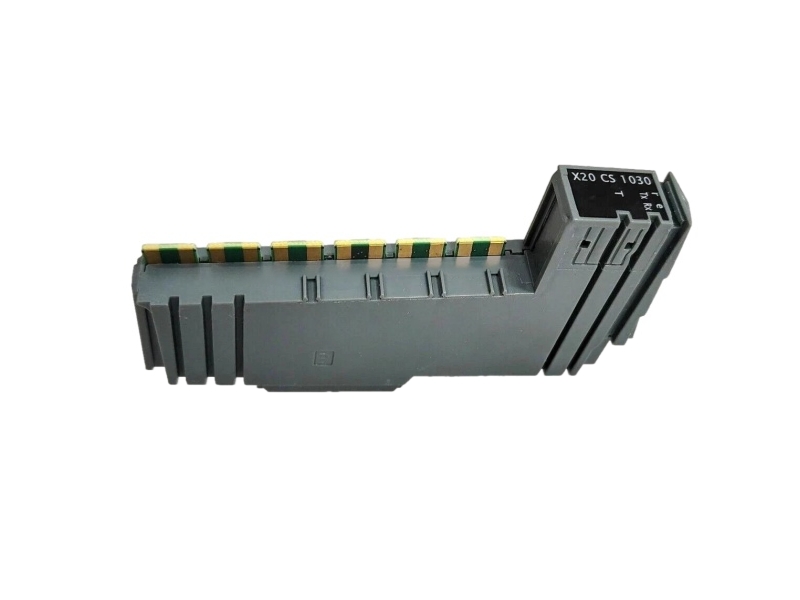

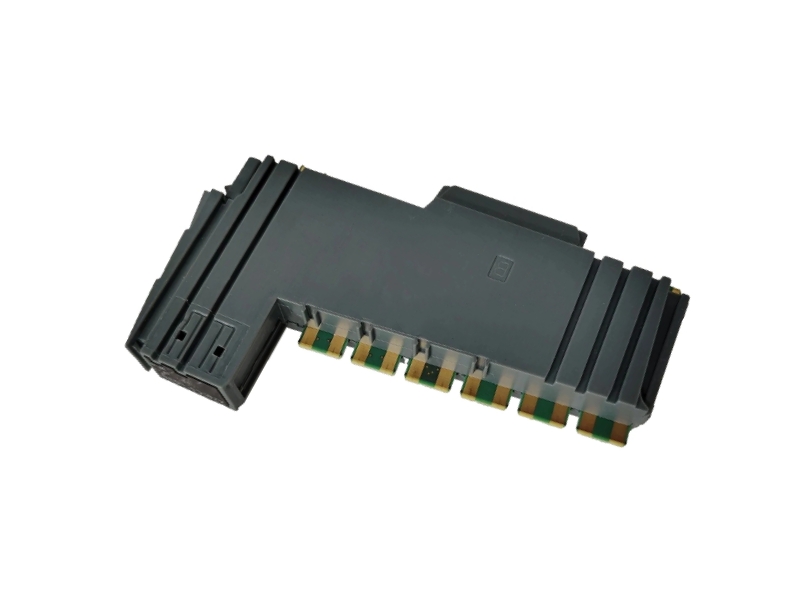

B&R X20CS1030 is an isolated X20 serial communication module with one RS485/RS422 interface, integrated termination and a 1 kB receive/transmit buffer.

ORDERING NOTEOrder the correct X20 bus module and X20TB06 or X20TB12 terminal block separately; verify the selected serial mode, baud rate, termination, wiring and Automation Studio configuration.

Brand New Original Fast Delivery Worldwide Shipping

INQUIRE NOW

OFFICIAL SERIAL DATA

X20CS1030 interface, isolation and operating profile

B&R communication and installation data aligned for protocol-mode, terminal and cabinet review.

SERIAL CHANNEL

POWER & INSTALLATION

Communication channel1x RS485/RS422

Interface isolationIF1 isolated from bus and I/O supply

Signal modeSelectable serial physical layer

Bus power consumption0.01 W

Terminal connection12-pin field terminal X20TB12

Internal I/O consumption1.44 W

RS485 station capacityMaximum 32 stations

B&R ID code0x1FD0

RS422 receiver capacityMaximum 10 stations

Status indicationData transfer, termination, operating state and module status

Maximum cable distance1200 m

Mounting orientationHorizontal or vertical

Maximum transfer rate115.2 kbit/s

Degree of protectionIP20

FIFO buffer1 kB

Horizontal operating range-25 to 60°C

Terminating resistorIntegrated in the module

Vertical operating range-25 to 50°C

UART controller16C550 compatible

Module pitch12.5 +0.2 mm

USE 01

Connect multidrop RS485

The channel supports an RS485 network with the station count defined in the official interface data.

USE 02

Serve RS422 receivers

RS422 mode supports point-to-multipoint receive connections within the documented receiver limit.

USE 03

Bridge long serial runs

The interface supports cable distances up to the official maximum when wiring and baud-rate rules are met.

USE 04

Buffer data exchange

A 1 kB FIFO decouples serial byte transfer from controller task timing.

USE 05

Manage line termination

The terminating resistor is integrated and its state is available through the module indication.

USE 06

Separate field potentials

Electrical isolation keeps the serial interface apart from the X20 bus and I/O supply domains.

SERIAL COMMUNICATION CHECKS

B&R X20CS1030 commissioning FAQ

Practical decision support for dependable X20 serial communication projects.

How many devices can B&R X20CS1030 serve in each serial mode?

The official limits are up to 32 RS485 stations or up to 10 RS422 receivers, subject to correct topology, cable and communication settings.

Which terminal and bus hardware are required for B&R X20CS1030?

B&R lists X20TB06 or X20TB12 terminal blocks and X20BM11 or X20BM15 bus modules as separately ordered mechanical and electrical partners.

What applications use B&R X20CS1030?

It connects serial instruments, drives, readers or other RS485/RS422 devices to an X20 controller project when the required protocol is implemented in software.

Can a current B&R X20CS1030 revision be sourced?

The official page includes a current data sheet and hardware upgrades; the quotation verifies hardware revision, condition, accessories and delivery timing.

What configuration must be preserved when replacing B&R X20CS1030?

Record RS485 or RS422 mode, baud rate, data framing, node arrangement, termination, terminal wiring, bus module and Automation Studio hardware definition.

Which files and inquiry details support a B&R X20CS1030 order?

Request the X20(c)CS1030 data sheet and X20 System User's Manual, and provide module label, terminal and bus-module numbers, protocol settings, quantity and destination.
