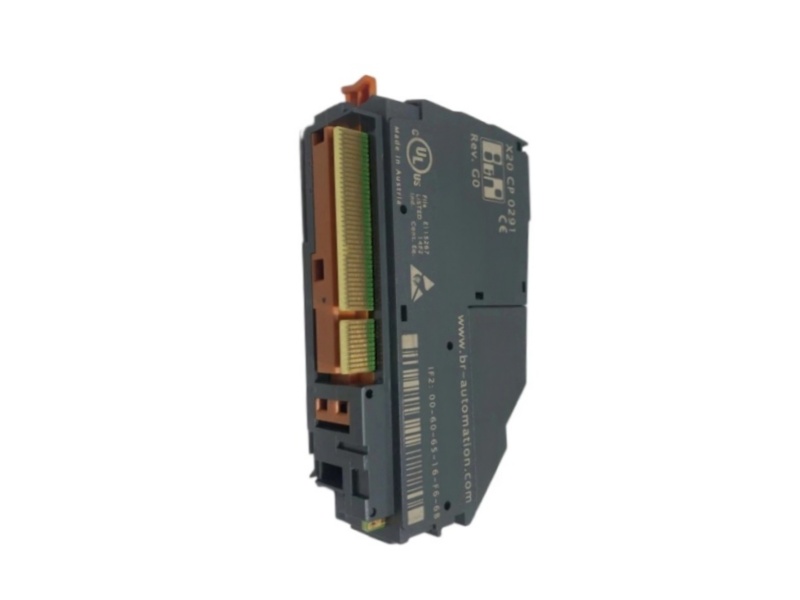

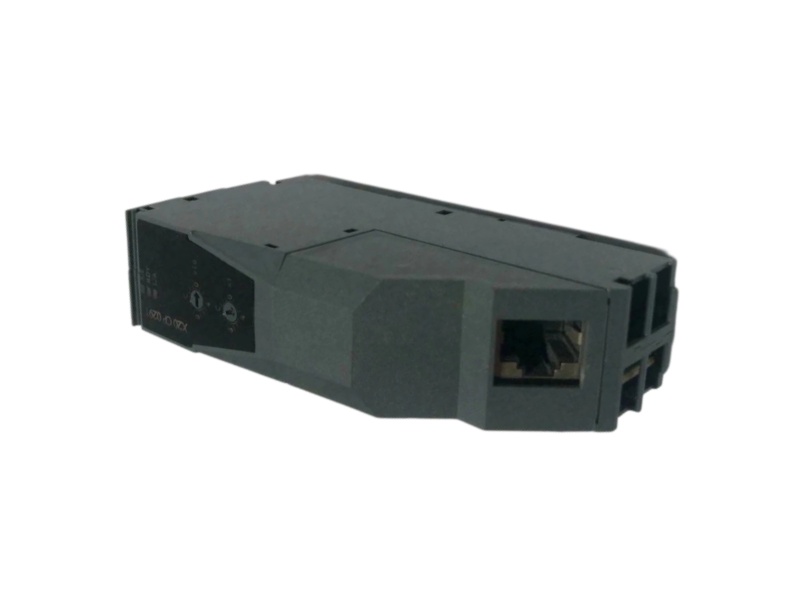

B&R X20CP0291 X20 Compact CPU With Onboard Ethernet

B&R / X20 COMPACT CONTROLETHERNET CPU
COMPACT MACHINE CONTROLLER

X20CP0291

B&R X20CP0291 is a battery-free X20 Compact CPU with an embedded µP16, background I/O processing and onboard Ethernet for compact machine control.

BEFORE INSTALLATIONMatch the Compact CPU base, power supply module, terminal block and Automation Studio hardware configuration before commissioning.
SELECTION CHECKMATCH BASE + SOFTWARE
Brand New OriginalFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20CP0291
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CONTROL DOSSIER

X20CP0291 Controller, Memory and Ethernet Parameters

Official B&R processor, memory, timing, interface, environmental and installation data for the exact Compact CPU.

IDENTIFICATION CHECKConfirm the CPU before assembly

Match B&R ID code 0x22A4, the required base interfaces and the installed Automation Studio project.

ASSEMBLY PAIRINGFour parts complete the node

X20CP0291 Compact CPU
X20BB22 or X20BB27 base
X20PS9500 or X20PS9502 supply
X20TB12 terminal block

CONTROL CORE & MEMORY
PROCESSOR TYPEEmbedded µP 16
PERMANENT-VARIABLE RETENTION>10 years
PERMANENT-VARIABLE MEMORY2.75 kB FRAM
USER PROM1 MB FlashPROM
USER RAM100 kB SRAM
REAL-TIME CLOCK1 s resolution; -18 to 28 ppm at 25°C
INTEGRATED I/O PROCESSORProcesses I/O data points in the background
BACKUP BATTERYNo
SHORTEST TASK CLASS CYCLE4 ms
TYPICAL INSTRUCTION CYCLE0.8 µs
ETHERNET SIGNALEthernet
ETHERNET PHYSICAL LAYER100BASE-TX
ETHERNET CONNECTOR1x shielded RJ45
ETHERNET SEGMENT LENGTH100 m maximum
ETHERNET TRANSFER RATE100 Mbit/s
HALF-DUPLEXSupported
FULL-DUPLEXNot supported
ETHERNET & INSTALLATION
AUTONEGOTIATIONNo
AUTO-MDI/MDIXYes
ETHERNET ISOLATIONPLC isolated from IF2
BASE MODULE X20BB22Integrated RS232 interface
BASE MODULE X20BB27Integrated RS232 and CAN interfaces
HORIZONTAL OPERATING TEMPERATURE-25 to 60°C
VERTICAL OPERATING TEMPERATURE-25 to 50°C
STORAGE TEMPERATURE-40 to 85°C
TRANSPORT TEMPERATURE-40 to 85°C
RELATIVE HUMIDITY5 to 95%, non-condensing
DEGREE OF PROTECTIONIP20
INSTALLATION ELEVATIONNo limitation from 0 to 2000 m
ABOVE 2000 MReduce ambient limit by 0.5°C per 100 m
MODULE PITCH37.5 +0.2 mm
REQUIRED TERMINAL BLOCKX20TB12
REQUIRED POWER SUPPLYX20PS9500 or X20PS9502
REQUIRED COMPACT CPU BASEX20BB22 or X20BB27
02
CONTROL DOSSIER

X20CP0291 Builds a Compact X20 Control Node

A practical view of application execution, background I/O handling, base selection and engineering access.

USE 01

Run compact machine sequences

Execute millisecond-class control tasks where a slim X20 controller and deterministic local I/O handling are appropriate.

USE 02

Process I/O in the background

The additional I/O processor handles I/O data points independently so application execution remains focused on machine logic.

USE 03

Connect an engineering Ethernet segment

The onboard RJ45 interface supports standard Ethernet access for configuration, diagnostics and application communication.

USE 04

Add a serial service path

Pair the CPU with X20BB22 when the installation needs the Compact CPU base with its integrated RS232 interface.

USE 05

Extend the node with CAN

Select X20BB27 when the machine architecture requires both the integrated RS232 connection and a CAN interface.

USE 06

Control startup from the node switches

Use the documented switch positions for boot loading, normal application run or diagnostic startup during service work.

03
CONTROL DOSSIER

Common buyer questions about X20CP0291

Practical purchasing guidance for clearer, more confident decisions.

BUYER CHECKLISTSend the installed configuration

Complete label and revision
Base and power module
Required interfaces
Automation Studio version

01BUYER QUESTION

Can the Ethernet interface on B&R X20CP0291 be used as a POWERLINK port?

No. B&R identifies IF2 as a 100BASE-T Ethernet interface and explicitly states that it is not suitable for POWERLINK. Plan POWERLINK through hardware that B&R specifies for that network.

02BUYER QUESTION

How do the node-number switches change the startup behavior of B&R X20CP0291?

The official data sheet assigns 0x00 to BOOT, 0x01 through 0xFE to RUN and 0xFF to DIAGNOSE. The operating system evaluates the selected mode when the controller starts.

03BUYER QUESTION

Which Compact CPU base should be selected for B&R X20CP0291?

Use X20BB22 when the base requires integrated RS232 only. Choose X20BB27 when the installation also needs CAN; both bases must be matched with the separately ordered CPU power module and terminal block.

04BUYER QUESTION

Is B&R X20CP0291 a direct replacement for X20CP0201 or X20CP0292?

B&R states that X20CP0291 uses the same processor and memory capacity as X20CP0201 but adds onboard Ethernet. X20CP0292 has a different processor and larger memory, so neither comparison should be treated as an automatic drop-in replacement without application, base and software review.

05BUYER QUESTION

Which accessories must be ordered to install B&R X20CP0291?

B&R requires one X20TB12 terminal block, one X20PS9500 or X20PS9502 power supply module and one X20BB22 or X20BB27 Compact CPU base. Select the base and power module for the installed interface and isolation requirements.

06BUYER QUESTION

What documentation and quotation details are needed for B&R X20CP0291?

Use the official X20CP02xx data sheet and X20 System user's manual. For a quotation, send the complete label and revision, installed base and power module, required interfaces, Automation Studio version, quantity, condition requirement and delivery destination; current supply is confirmed at quotation.
