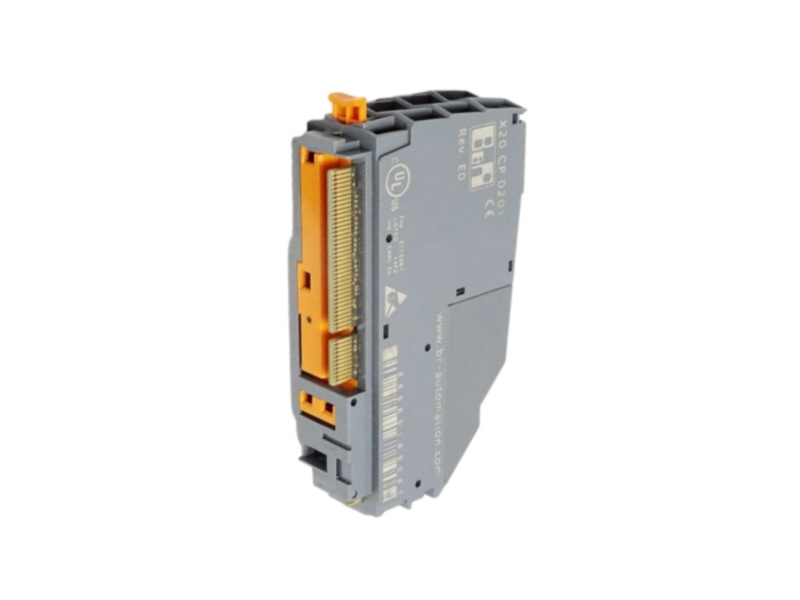

X20CP0201 front view

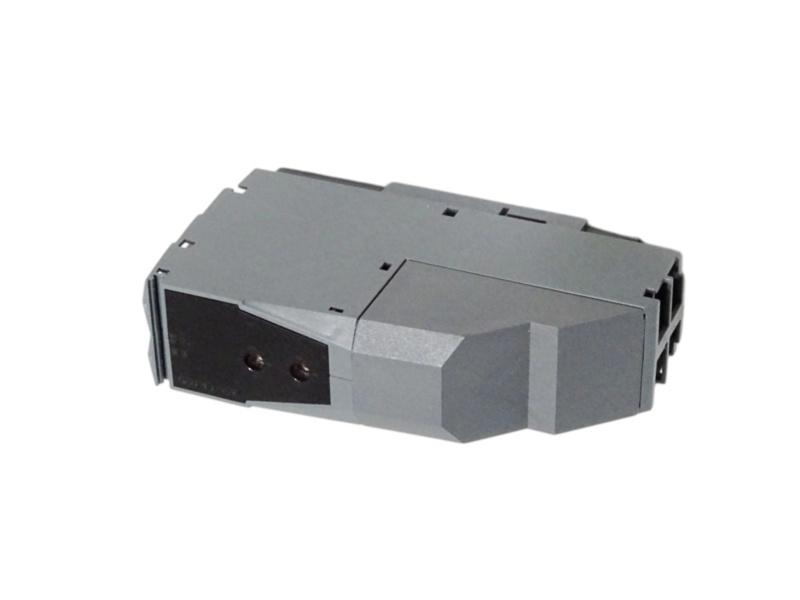

X20CP0201 side view
X20CP0201 product detail

B&R X20CP0201 X20 Compact CPU

B&R / COMPACT CPUOFFICIAL DATA

X20CP0201

B&R X20CP0201 is a battery-free compact CPU with FRAM, background I/O processing, and serial or CAN connectivity.

✓One Year Warranty
✓Best Price
PRODUCT ENQUIRYInquire Now↗
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20CP0201
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL COMPACT CPU DATA

Processor, memory & base-module profile

B&R controller values arranged for execution time, retained memory, interface base selection, power and installation.

ProcessorEmbedded µP 16
Integrated I/O processorBackground I/O processing
Permanent-variable memory2.75 kB FRAM
Retention time>10 years
User program memory1 MB FlashPROM
User RAM100 kB SRAM
Shortest task class4 ms
Typical instruction time0.8 µs
Real-time clock resolution1 s
RTC accuracy at 25°C-18 to +28 ppm
Backup batteryNot required
Power consumption2.2 W
Temperature sensorNo
CPU diagnosticsStatus LED
Base option X20BB22Integrated RS-232
Base option X20BB27Integrated RS-232 and CAN
Onboard EthernetNone
ACOPOS supportLimited via User PROM and CAN
Visual Components supportLimited via User PROM
B&R ID code0x22A2
Degree of protectionIP20
Operating temperature-25 to 60°C horizontal; -25 to 50°C vertical
Storage and transport temperature-40 to 85°C
Relative humidity5 to 95%, non-condensing
Installation elevation0 to 2000 m without limitation
Module pitch37.5 +0.2 mm
System width37.5 mm
Required terminal blockX20TB12
Required power moduleX20PS9500 or X20PS9502
Required CPU baseX20BB22 or X20BB27
02
FROM PROGRAM TO I/O

Compact control roles & machine fit

Deterministic execution, background I/O handling, retained variables and base-dependent serial communication.

A

Execute

Run the user program on the embedded controller.

B

Offload

Process X20 I/O data through the integrated I/O processor.

C

Retain

Keep selected variables in battery-free nonvolatile memory.

D

Interface

Obtain serial connectivity from the chosen Compact CPU base.

03
PURCHASING CLARITY

X20CP0201 FAQ

Planning guidance for CPU bases, retained memory and serial interfaces.

Q01

Which base-module decision determines the serial interfaces available to B&R X20CP0201?

Select the serial-only base or the serial-plus-CAN execution according to the installed project; the base is a required part of the Compact CPU assembly.

Q02

How does the absence of onboard Ethernet shape a B&R X20CP0201 retrofit?

Plan engineering and network integration around the installed serial or CAN architecture, or redesign the control platform if Ethernet is a mandatory requirement.

Q03

What machine profile is a good fit for B&R X20CP0201?

It suits cost-focused compact control where its task timing, memory and supported interfaces meet the application rather than high-performance motion or large visualization workloads.

Q04

How should a buyer interpret availability for B&R X20CP0201?

The current B&R product record confirms identity and documentation, but the offered quantity, hardware revision, condition and delivery date require quotation-time confirmation.

Q05

Which dependencies can prevent a drop-in B&R X20CP0201 replacement?

A different Compact CPU base, power module, user PROM content, Automation Runtime version, task timing or serial configuration can stop a simple exchange.

Q06

What information should be included in a B&R X20CP0201 manual and price enquiry?

Send the CPU, base and power-module labels, project and runtime versions, interface use, application backup, quantity, destination and required condition.

04
