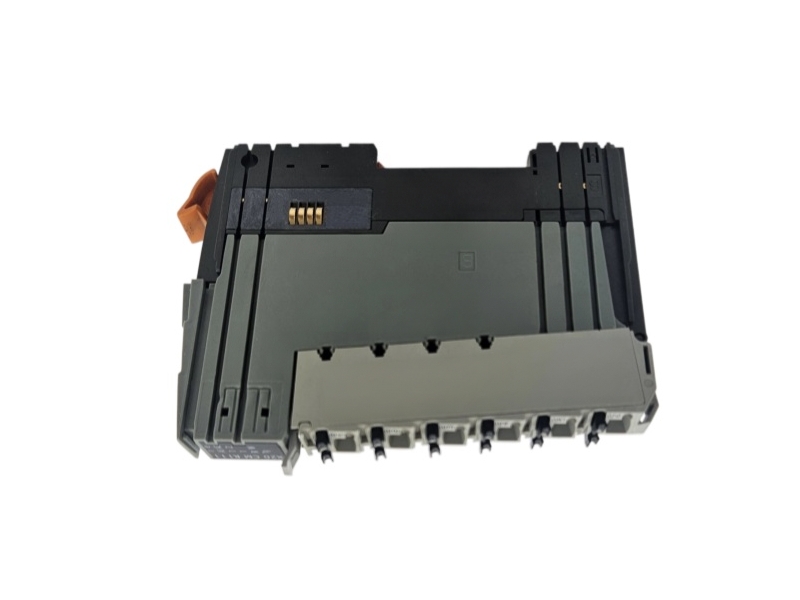

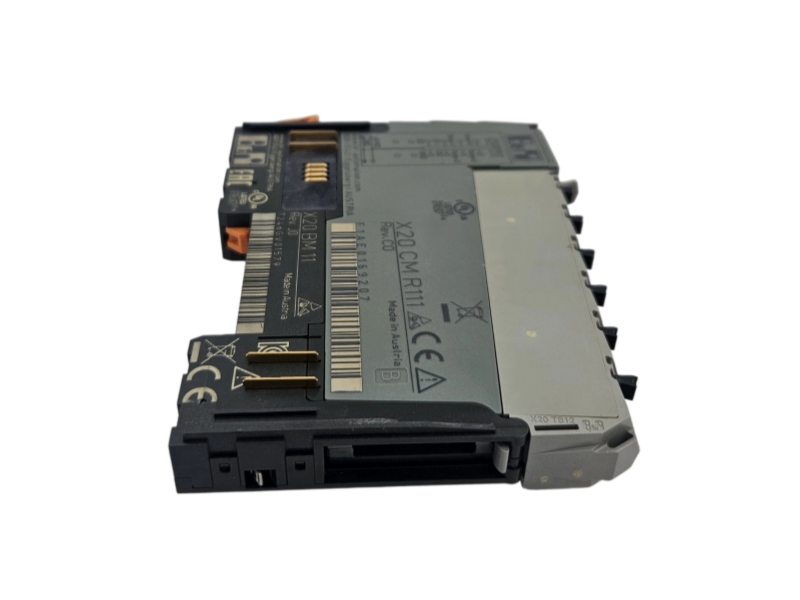

B&R X20CMR111 Condition Monitoring and Technology Guard Module

B&R / X20 CONDITION MONITORINGTECHNOLOGY GUARD MODULE
CABINET CONDITION RECORD

X20CMR111

B&R X20CMR111 monitors cabinet environment and motion, with Pt1000 inputs, discrete I/O, flash memory and Technology Guard.

BEFORE INSTALLATIONPlan sensor wiring, flash data handling, Technology Guard keys and the separate X20 terminal and bus modules before commissioning.
PRODUCT STATUSOfficial record available
SELECTION CONTROLDATA + LICENSE CHECK
In Stock ReviewWorldwide ShippingOne Year Warranty
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20CMR111
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FIELD JOURNAL

X20CMR111 Environmental and Memory Parameters

Official B&R sensing, Pt1000, motion, memory, power and Technology Guard data for this condition-monitoring slice.

AMBIENT, MOTION & EXTERNAL SENSORS
INTERNAL TEMPERATURE RESOLUTION0.1°C/LSB
RELATIVE HUMIDITY RANGE5 to 95%
HUMIDITY RESOLUTION1%/LSB
ENVIRONMENT SAMPLING RATE1 s
ACCELERATION RANGE±16 g
ACCELERATION RESOLUTION0.488 mg/LSB
ANGULAR VELOCITY RANGE±2000 dps
MOTION SAMPLING RATETypically 10 ms
EXTERNAL TEMPERATURE INPUTS2 × Pt1000, 2-wire
PT1000 MEASUREMENT RANGE-40 to 125°C
PT1000 CONVERTER12-bit, 1 ms for all inputs
DIGITAL INPUTS2 at 24 VDC
MEMORY, PROTECTION & SYSTEM ACCESSORIES
DIGITAL INPUT FILTER0 to 25 ms in 0.2 ms steps
DIGITAL OUTPUTS1
APPLICATION MEMORY512 kB flash
FLASH ORGANIZATION8 sectors × 64 kB
FLASH DATA RETENTION20 years at 55°C
FLASH ENDURANCE100,000 cycles per sector
TECHNOLOGY GUARD DATA241 bytes customized data
TECHNOLOGY GUARD RETENTION10 years at room temperature
BLACKOUT MODEModule functionality; not standalone
BUS POWER CONSUMPTION0.4 W
INTERNAL I/O POWER0.1 W
REQUIRED ACCESSORIESX20TB12 and X20BM11
02
FIELD JOURNAL

How X20CMR111 Builds a Cabinet Condition Record

A practical route for observing cabinet health, retaining event history and protecting application-specific information.

USE 01

Track cabinet climate

Observe internal temperature and relative humidity to identify conditions that can shorten component life.

USE 02

Log shock and orientation

Use the integrated motion sensors to record unusual handling, vibration events or changes in module position.

USE 03

Monitor external hot spots

Connect two Pt1000 elements to supervise selected cabinet, motor or process locations.

USE 04

Retain operating history

Store application-defined counters, events or condition summaries in the organized nonvolatile flash sectors.

USE 05

Protect machine know-how

Use Technology Guarding within the licensed application architecture to bind protected data to authorized hardware.

USE 06

Support blackout logging

Preserve the module's supported monitoring behavior during the defined blackout mode without treating it as a standalone controller.

03
FIELD JOURNAL

Common buyer questions about X20CMR111

Practical purchasing guidance for clearer, more confident decisions.

01BUYER QUESTION

How should B&R X20CMR111 be positioned when cabinet temperature and humidity are important?

Place the module where its internal sensor can represent the area being assessed, away from misleading local heat sources or airflow. Record the cabinet location so later trends remain comparable.

02BUYER QUESTION

What can the nonvolatile memory in B&R X20CMR111 retain?

The module provides eight 64 kB flash sectors for application-defined data. The application must manage sector use and write frequency because the memory has specified retention and erase/write limits.

03BUYER QUESTION

How are external Pt1000 sensors connected to B&R X20CMR111?

B&R specifies two resistance-measurement inputs for 2-wire Pt1000 connections. Use the official terminal assignment, configure filtering and handle open-circuit diagnostic values in the application.

04BUYER QUESTION

What does Technology Guarding add to B&R X20CMR111?

Technology Guard provides protected customized data and cryptographic functions for authorized machine applications. Migration requires the original application, keys and licensing workflow, not only a hardware exchange.

05BUYER QUESTION

Can B&R X20CMR111 run independently in blackout mode?

No. The official data states that blackout mode covers module functionality and that standalone mode is not supported; the module remains part of an engineered X20 system.

06BUYER QUESTION

Which official records and supply details belong in a B&R X20CMR111 replacement request?

Use the B&R product record and X20 system manual, then confirm current supply for the exact label. Send the Automation Studio project, base parts, sensor wiring, flash-data use, Technology Guard status, quantity and destination.
