B&R X20CM4810 X20 Condition Monitoring Module view 1

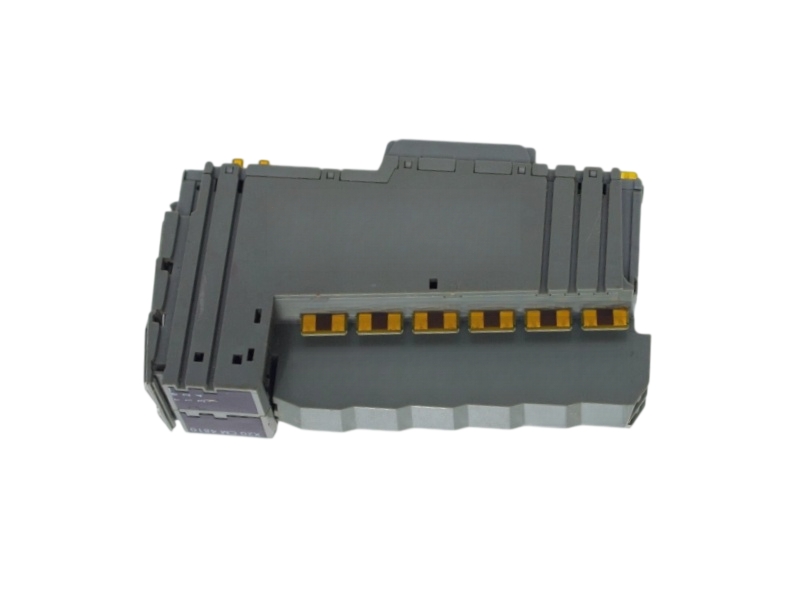

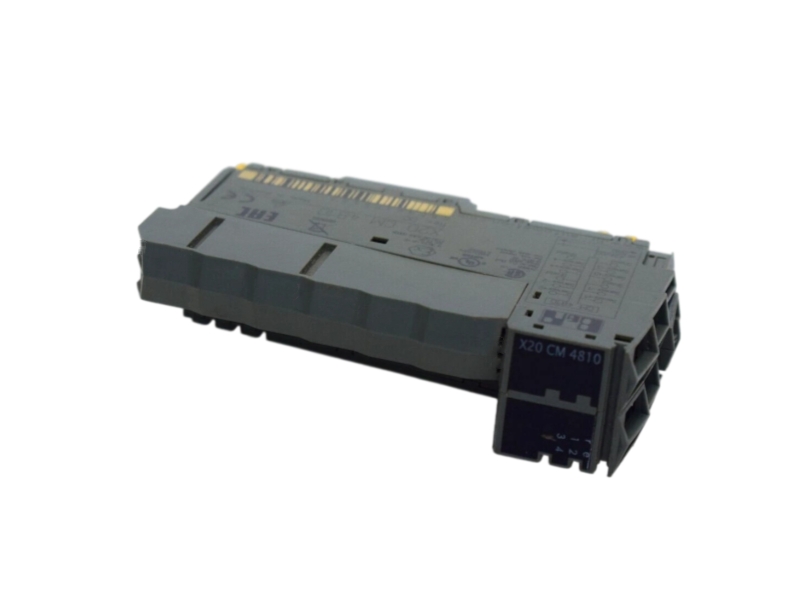

B&R X20CM4810 X20 Condition Monitoring Module

Name: B&R X20CM4810 X20 Condition Monitoring Module
Availability: InStock

B&R · X20 CONDITION MONITORING4 IEPE INPUTS · 24 BIT

VIBRATION MEASUREMENT AND ANALYSIS

X20CM4810

B&R X20CM4810 is a four-channel IEPE vibration-input module with 24-bit conversion and onboard signal analysis for machine condition monitoring in X20 systems.

INPUTS4 IEPE

RESOLUTION24 bit

SAMPLE RATE51.5625 kHz

ANALYSIS PATHVibration acquisition with local time and frequency processing

SENSORFFT

Acceleration signals become condition indicators

SELECTION NOTEConfirm IEPE sensors, frequency range, cable set and X20BM31

Brand New OriginalFast DeliveryWorldwide ShippingINQUIRE NOW

Inquire Now

Worldwide delivery
Delivery from stock
In stock really means in stock
No account required
Shipped from the China

Product Specifications

Manufacturer	B&R
Item number	X20CM4810
Country of Origin	Austria
Lead Time	2-3 DAYS
After-Sales Support	One Year Warranty
HS Code / Commodity code	Please confirm the destination before shipping.

FAQ

How long is my quote valid for?

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Is there any warranty?

Yes,we offer one year warranty for all new products.

Do you offer global delivery?

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

How many days will it take for my part to arrive?

Normally 3-5 working days,some remote areas 5-7 days more.

Product information

01 / DATA DESKCM

OFFICIAL TECHNICAL PROFILE

Vibration-analysis data for X20CM4810

Official sensor, converter, analysis and installation data separated for condition-monitoring design.

IEPE INPUTS, SAMPLING & FILTERS

Input channels4 vibration inputs

Sensor typeIEPE acceleration sensor

Converter resolution24 bit

Sampling frequency51.5625 kHz

Permissible input signal±10 VAC

IEPE supply current5 mA nominal per channel

IEPE current tolerance4.9 to 5.5 mA

IEPE supply switchingIndividually switchable by channel

High-pass cutoff34 mHz

Low-pass cutoff19.75 kHz

Downsampling200 Hz, 500 Hz, 1, 2, 5 or 10 kHz

Maximum evaluated frequency10 kHz

ANALYSIS, ISOLATION & INSTALLATION

Best frequency resolutionBelow 63 mHz

Open-circuit detectionPer channel

Nominal module supply24 VDC ±20%

B&R ID code0xC8F9

Bus power consumption0.01 W

Internal I/O power2.5 W

Channel-to-bus isolation500 Veff

Channel-to-channel isolationNone

Onboard processingFiltering, envelope and Fourier transform

Result transferTime and frequency data upload

Mandatory bus moduleX20BM31

Mandatory terminal blockX20TB12

SELECTION DOSSIERBuild the X20CM4810 measurement chain

IEPE sensor and cableSampling and frequency planX20BM31 plus X20TB12

02 / VIBRATION ANALYSIS PATH

How X20CM4810 turns IEPE signals into condition data

Sensor excitation, high-rate sampling, local analysis and controller transfer arranged as one diagnostic workflow.

STARTIEPE acceleration sensor

Match sensitivity, mounting and cable routing.

LOCAL SIGNAL ANALYSISX20CM4810Sample · filter · transform

TIMEFREQEvaluate condition indicators

USE 01Bearing monitoring

Track vibration behavior associated with rotating bearing condition.

USE 02Unbalance detection

Analyze frequency components that may indicate rotating-mass imbalance.

USE 03Gearbox observation

Acquire high-bandwidth vibration signals for gear-mesh condition analysis.

USE 04Predictive maintenance

Generate consistent condition data for trend-based service planning.

USE 05Machine protection input

Provide processed indicators to the control application for defined response logic.

USE 06Commissioning baseline

Capture a reference spectrum after installation for later comparison.

BUYER GUIDANCE

Questions buyers ask about X20CM4810

Which sensor type connects to B&R X20CM4810?

B&R specifies four inputs for IEPE acceleration sensors. Each channel provides a nominal 5 mA sensor supply that can be switched individually.

What analysis can B&R X20CM4810 perform inside the module?

The official manual describes integrated filtering, envelope processing and Fourier transformation, with time-domain and frequency-domain data available to the controller.

What is the highest vibration frequency evaluated by B&R X20CM4810?

B&R specifies a maximum evaluable frequency of 10 kHz. The sampling and downsampling plan must still be selected to suit the sensor and diagnostic objective.

Which X20 installation hardware is required for B&R X20CM4810?

B&R lists X20BM31 as the mandatory bus module and X20TB12 as the mandatory terminal block. Sensor cables and IEPE accessories must be selected separately.

Can B&R X20CM4810 replace a standard analog-input module without engineering changes?

No. It is a dedicated vibration-analysis module with IEPE excitation, high-rate sampling and specialized processing, so sensor wiring, data mapping and application configuration must be redesigned or verified.

What details should be supplied for a B&R X20CM4810 quotation?

Send the module label, planned IEPE sensor models, cable lengths, frequency range, required analysis outputs, bus and terminal modules, quantity and destination for configuration review.
