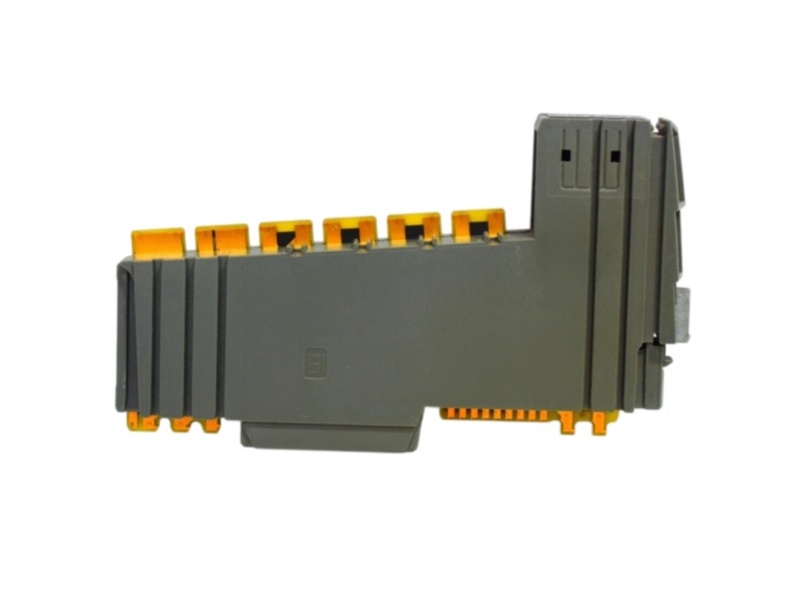

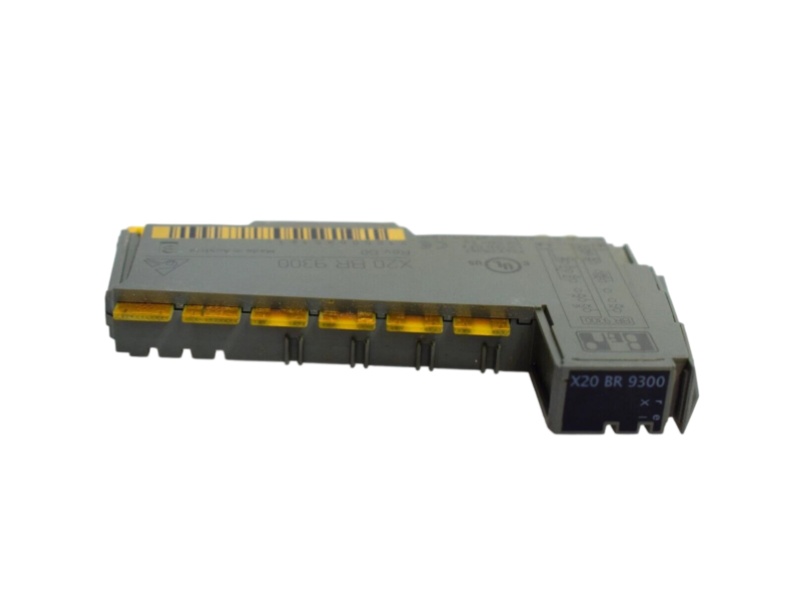

B&R X20BR9300 X2X Link Bus Receiver

B&R / X2X LINK BUS RECEIVEROFFICIAL DATA

X20BR9300

B&R X20BR9300 is a bus receiver that powers remote X20 I/O stations while transmitting X2X Link data, field power, and diagnostic information.

✓In Stock
✓Top Quality
PRODUCT ENQUIRYInquire Now↗
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20BR9300
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL BUS RECEIVER DATA

X2X power, I/O feed & protection profile

B&R values arranged for supply input, protected output, redundancy, isolation, diagnostics and installation position.

Module functionX2X Link bus receiver
B&R ID code0x1BC1
Status indicatorsX2X bus, overload, operating state and module status
Run/error diagnosticsRun/error shown by LED and software
Overload diagnosticsOverload shown by LED and software
X2X bus diagnosticsLED indication
X2X supply inputX2X feed: 24 VDC -15% / +20%
X2X input currentMaximum 0.7 A
X2X input protectionIntegrated non-replaceable fuse
X2X reverse-polarity protectionYes
X2X nominal output power7 W
X2X supply consumption1.62 W
Parallel supply operationSupported for parallel supply
Redundant supply operationSupported for redundant supply
X2X overload behaviorShort-circuit proof; temporary overload
I/O supply inputI/O feed: 24 VDC -15% / +20%
Required I/O line fuseMaximum 10 A slow-blow
I/O supply reverse-polarity protectionNo
I/O output voltage24 VDC nominal
Permissible I/O contact load10 A
Internal I/O consumption0.6 W
Electrical isolationX2X feed isolated; I/O feed not isolated
Mounting orientationHorizontal or vertical
Degree of protectionIP20
Operating temperature-25 to 60°C horizontal; -25 to 50°C vertical
Storage and transport temperature-40 to 85°C
Relative humidity5 to 95%, non-condensing
Installation elevation0 to 2000 m without limitation
Required terminal blockX20TB12
Module pitch12.5 +0.2 mm
02
FROM X2X TO I/O

Remote station power roles & system use

Receive the X2X Link, feed internal electronics, distribute I/O power and support redundant supply layouts.

A

Receive

Terminate the incoming X2X Link at the remote station.

B

Feed

Supply the X2X electronics and internal I/O path.

C

Distribute

Pass protected field I/O power through the station.

D

Diagnose

Report bus, overload and module operating states.

03
PURCHASING CLARITY

X20BR9300 FAQ

Engineering guidance for X2X power distribution and remote-station assembly.

Q01

Why must B&R X20BR9300 occupy the far-left position of an X20 station?

The receiver introduces the X2X connection and supply paths at the station boundary, so B&R specifies operation only in the far-left slot.

Q02

How can B&R X20BR9300 participate in a redundant power design?

The X2X supply output supports parallel operation, allowing multiple approved supply modules to provide redundancy when the complete system is engineered accordingly.

Q03

What station architecture is B&R X20BR9300 intended to create?

It starts a distributed X20 I/O group that receives X2X Link communication while supplying the internal electronics and field I/O power path.

Q04

What should be verified before promising immediate shipment of B&R X20BR9300?

Check the exact label, hardware revision, tested bus and overload indicators, included accessories, available quantity and realistic dispatch date.

Q05

Which protection details can block a safe B&R X20BR9300 replacement?

The selected power bus base, external I/O line fuse, polarity, supply separation and far-left placement must match the documented installation.

Q06

What belongs in a B&R X20BR9300 datasheet and quotation request?

Include the X2X topology, station current budget, base and terminal types, redundancy plan, supply drawing, project release, quantity and destination.
