Name: B&R X20BM32 X20 Double-Width 240 VAC Bus Module
Availability: InStock

B&R X20BM32 X20 Double-Width 240 VAC Bus Module

HIGH-VOLTAGE I/O FOUNDATION25 MM PITCH

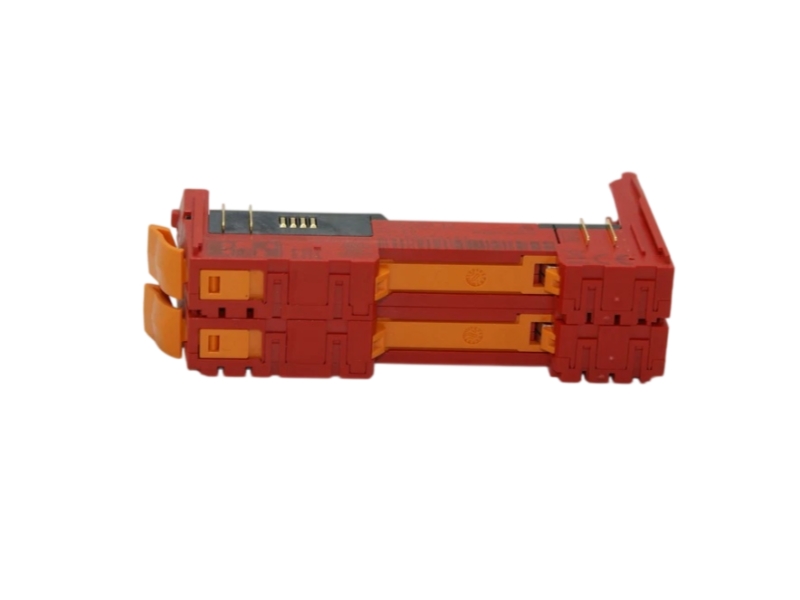

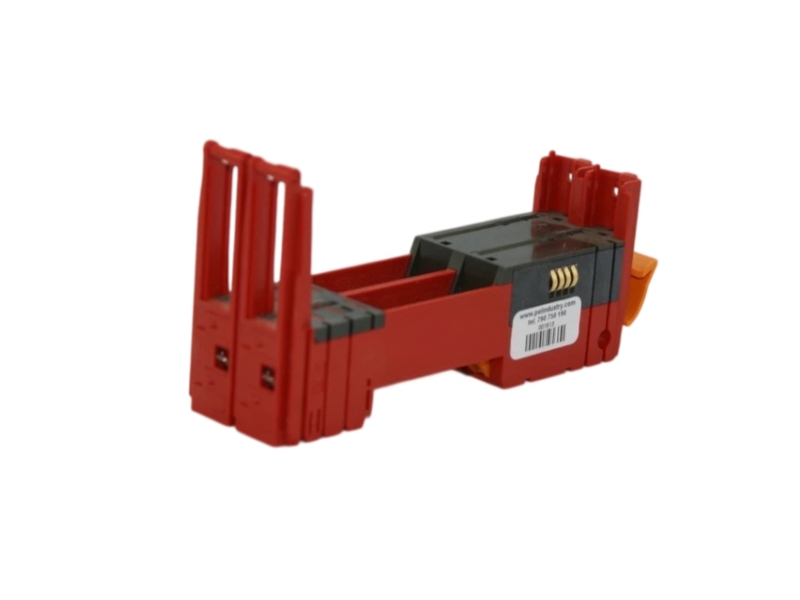

B&R X20BM32 is a double-width X20 bus module mechanically keyed for compatible 240 VAC I/O electronics. Its internal I/O supply contacts are interconnected for the installed module assembly.

MATCH BEFORE ORDERINGVerify the 240 VAC module code, double-width footprint, terminal block and cabinet isolation design before ordering.

NOMINAL I/O SUPPLY24 VDC internal bus

CONTACT LOAD10 A maximum

MOUNTINGHorizontal or vertical

Brand New Original One Year Warranty

INQUIRE NOW

OFFICIAL BASE-MODULE DATA

X20BM32 electrical and installation parameters

The two ledgers separate supply-path limits from cabinet environment and mechanical placement data.

ELECTRICAL FOUNDATION

ApplicationDouble-width 240 VAC X20 I/O modules

Mechanical codingKeyed for 240 VAC modules

Internal I/O supplyConnected through

Bus power consumption0.13 W

Nominal I/O supply24 VDC

Permissible contact load10 A

CRA statusIn preparation

HazLoc certificationcCSAus 244665

ATEX classificationZone 2, Category 3G

UL recognitioncULus E115267

MOUNTING & ENVIRONMENT

DNV temperature classB (0 to 55°C)

DNV vibration classB (4 g)

Elevation to 2000 mNo limitation

Elevation above 2000 mReduce ambient temperature 0.5°C per 100 m

Degree of protectionIP20

Horizontal operating range-25 to 60°C

Vertical operating range-25 to 50°C

Storage temperature-40 to 85°C

Relative humidity5 to 95%, non-condensing

Module pitch25 +0.2 mm

I/O ASSEMBLY LOGIC

How X20BM32 forms a safe 240 VAC I/O position

Rail mounting, mechanical keying, internal bus contacts and a matched terminal block establish the final I/O assembly.

01Mount bus base

02Engage keyed electronics

03Connect terminal block

04Verify isolated field wiring

FUNCTION 01

Define the rail footprint

The double-width base reserves the correct cabinet space for the corresponding high-voltage electronics module.

FUNCTION 02

Prevent wrong module seating

Mechanical keying distinguishes the position intended for the approved high-voltage X20 I/O family.

FUNCTION 03

Carry system-bus contacts

The base provides the backplane connection that links the installed electronics into the surrounding X20 station.

FUNCTION 04

Bridge the internal supply

Interconnected I/O supply contacts continue the intended internal potential path through the base assembly.

FUNCTION 05

Support either orientation

The base can be installed in horizontal or vertical X20 layouts when the orientation-specific temperature limit is observed.

FUNCTION 06

Complete a serviceable assembly

Separate electronics and terminal components allow organized replacement after every order code is confirmed.

CABINET CHECKKeep 240 VAC field wiring segregated and confirm the complete electronics-base-terminal combination before energizing.

BUYER GUIDANCE

B&R X20BM32 buyer FAQ

Purchasing questions concentrate on keyed module matching, rail width, orientation and safe field-wiring preparation.

Which I/O modules should be mounted on B&R X20BM32?

Use only compatible X20 electronics modules intended for the X20BM32 double-width, 240 VAC keyed base. Confirm the official module combination by complete order number.

Why can B&R X20BM32 not replace a standard-width X20 bus base?

The X20BM32 uses a double-width footprint and high-voltage mechanical coding, so width and keying differ from standard positions.

Does B&R X20BM32 include the terminal block and electronics module?

No. Treat the bus base, terminal block and electronics as separate order items unless the quotation explicitly lists a complete assembly.

Can B&R X20BM32 be installed vertically?

Yes, but the official vertical operating-temperature limit is lower than the horizontal limit. Check cabinet temperature and airflow.

What should be photographed before replacing B&R X20BM32?

Capture the electronics label, base coding, terminal block, adjacent potential group and field wiring so the whole position can be matched.

How should B&R X20BM32 documentation be requested with a quote?

Ask for the current official datasheet and state the companion electronics module, terminal block, quantity and destination.
