Name: B&R X20BM11 X20 24 VDC Bus Module
Availability: InStock

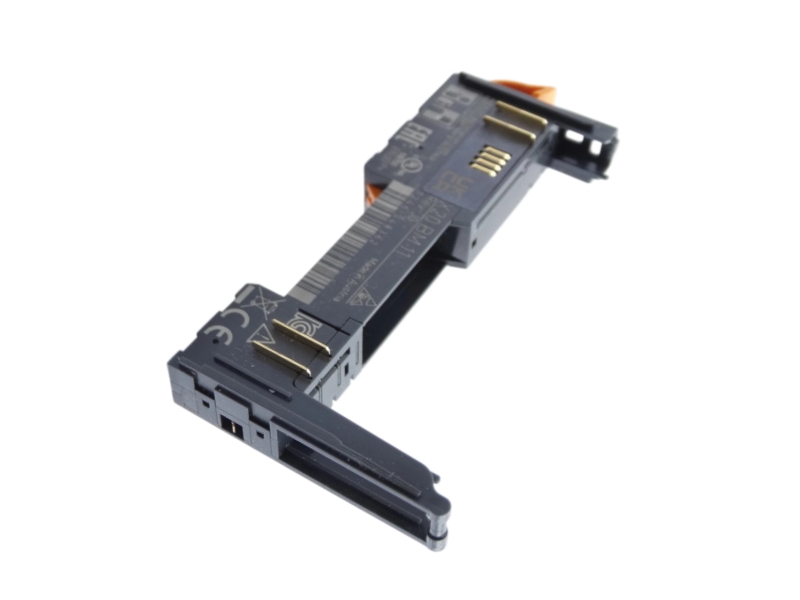

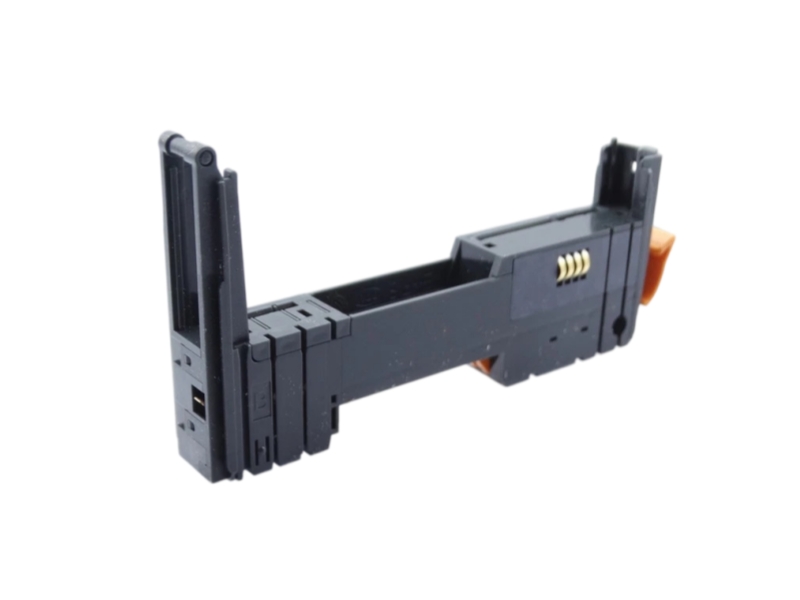

B&R X20BM11 X20 24 VDC Bus Module

STANDARD X20 I/O FOUNDATION12.5 MM PITCH

B&R X20BM11 is a standard-width X20 bus module for compatible 24 VDC I/O electronics. It mounts the electronics on the rail and continues the internal I/O supply through the station position.

MATCH BEFORE ORDERINGMatch the electronics module, terminal block, potential group and mounting orientation; do not select the base by width alone.

I/O SUPPLY24 VDC nominal

CONTACT CAPACITY10 A

PROTECTIONIP20

Brand New Original One Year Warranty

INQUIRE NOW

OFFICIAL BUS-BASE DATA

X20BM11 supply and cabinet parameters

Published electrical-contact limits are paired with orientation-specific environmental requirements for station design.

SUPPLY PATH & CONTACTS

Intended electronics24 VDC X20 I/O modules

Module widthSingle-width bus base

Internal I/O supplyConnected through

Nominal I/O voltage24 VDC

Permissible contact load10 A

Bus power consumption0.13 W

CRA statusIn preparation

HazLoc certificationcCSAus 244665

ATEX classificationZone 2, Category 3G

UL recognitioncULus E115267

INSTALLATION ENVELOPE

DNV temperature classB (0 to 55°C)

DNV vibration classB (4 g)

Elevation to 2000 mNo limitation

Elevation above 2000 mReduce ambient temperature 0.5°C per 100 m

Degree of protectionIP20

Horizontal operation-25 to 60°C

Vertical operation-25 to 50°C

Storage temperature-40 to 85°C

Relative humidity5 to 95%, non-condensing

Module pitch12.5 +0.2 mm

MODULAR STATION ASSEMBLY

How X20BM11 builds a powered I/O position

The rail base, bus contacts, supply bridge and matched terminal create a removable but electrically continuous X20 station position.

01Snap base to rail

02Join bus contacts

03Seat I/O electronics

04Attach field terminal

FUNCTION 01

Anchor the station position

The base establishes the standard module pitch and mechanical mounting point on the cabinet rail.

FUNCTION 02

Continue backplane signals

System-bus contacts link the installed electronics with neighboring X20 modules.

FUNCTION 03

Pass the field supply

The internal I/O supply connection continues the intended potential path through the module base.

FUNCTION 04

Accept replaceable electronics

The modular construction allows the electronics portion to be serviced without redesigning the whole rail arrangement.

FUNCTION 05

Separate field termination

A compatible terminal block organizes external wiring as a distinct part of the assembly.

FUNCTION 06

Support cabinet orientation

Horizontal and vertical mounting are possible when their different ambient limits are respected.

POTENTIAL GROUP REVIEWTrace the surrounding supply group and verify the paired electronics and terminal references before changing the base.

BUYER GUIDANCE

B&R X20BM11 buyer FAQ

These answers center on standard-width assembly, potential continuity, orientation and the purchasing details needed for a correct base.

Which electronics modules can use B&R X20BM11?

Use compatible 24 VDC X20 I/O electronics that specify the X20BM11 bus base. Confirm the official combination for the exact electronics code.

Does B&R X20BM11 create a new isolated I/O supply group?

No. Its internal I/O supply contacts are connected through; review the surrounding potential group before replacing or relocating the base.

Why must the rail footprint be checked for B&R X20BM11?

X20BM11 is a standard-width base. Verify the physical position and mechanical coding instead of assuming that every X20 bus base is interchangeable.

Can B&R X20BM11 remain in a vertical X20 station?

Yes, provided the cabinet stays within the official vertical operating-temperature range and condensation is prevented.

What label information is required to quote B&R X20BM11 correctly?

Send the complete electronics-module and terminal-block references, plus a photo of the base and neighboring potential group.

Which B&R X20BM11 documents should be requested before installation?

Request the current official product datasheet and the installation information for the paired electronics module and terminal block.
