B&R X20BC8083 X20 POWERLINK Expandable Bus Controller

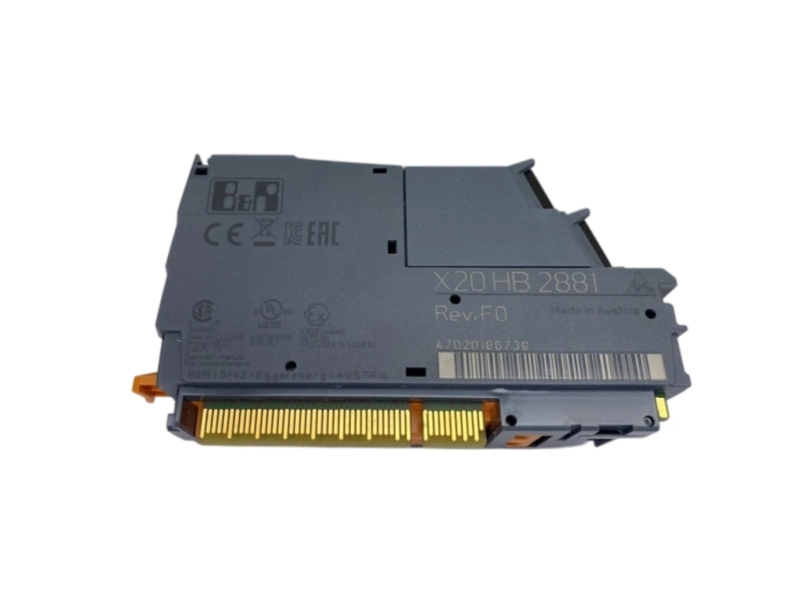

  B&R · X20 HUB SYSTEM 2-PORT · 100BASE-FX MULTIMODE FIBER EXPANSION X20HB2881 B&R X20HB2881 is a two-port 100BASE-FX hub expansion module for extending POWERLINK networks over multimode fiber in compatible X20 hub stations. INSTALLATION MATCH Install only in a supported hub-expansion slot; verify the host hardware revision, multimode fiber type and duplex LC connections before commissioning. APPLICATION SNAPSHOT Two optical hub ports for extended POWERLINK segments OPTICAL PORTS2 duplex LC POWERLINK REACHUp to 2 km PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch host revision + fiber Brand New OriginalFast DeliveryWorldwide Shipping INQUIRE NOW

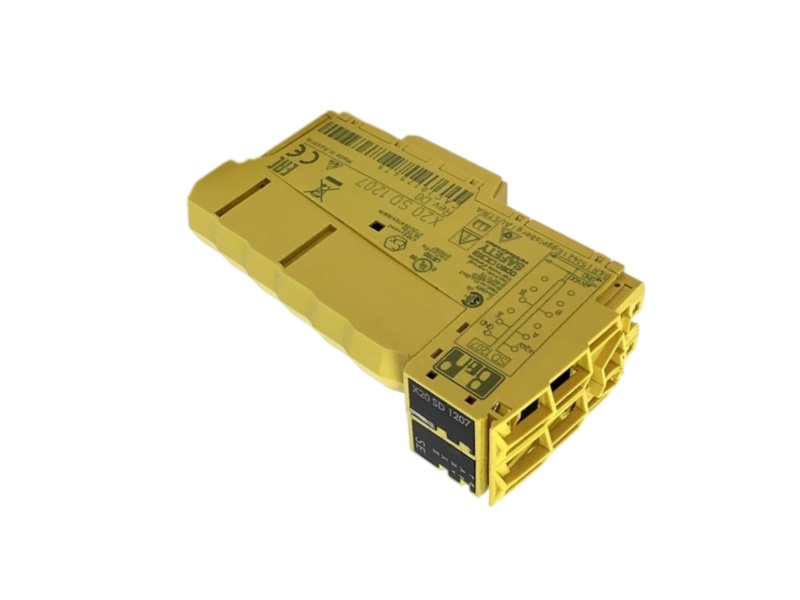

  B&R · X20 SAFETY TECHNOLOGY SAFE COUNTER · 7 KHZ SAFE SPEED ACQUISITION X20SD1207 B&R X20SD1207 is a one-channel safe digital counter module for 24 VDC Type A encoder signals and safety-related speed acquisition in X20 stations. INSTALLATION MATCH Use X20BM33 or X20BM36 with the safety-keyed X20TB52 terminal block; validate encoder wiring and the complete safety function before commissioning. APPLICATION SNAPSHOT One safe Type A counter channel for encoder evaluation SAFE CHANNEL1 Type A counter MAXIMUM RATE7 kHz PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch safety base + terminal Brand New OriginalOne Year WarrantyWorldwide Shipping INQUIRE NOW

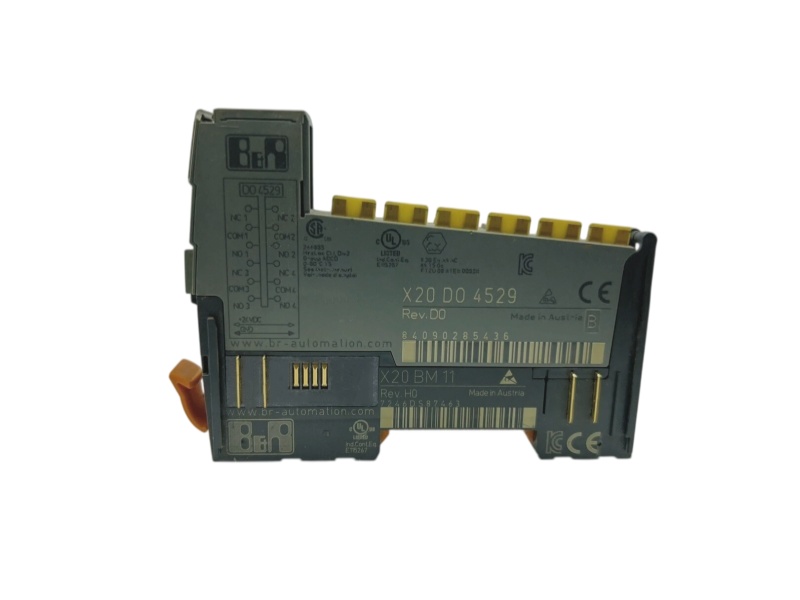

  B&R · X20 DIGITAL OUTPUT 4 RELAY CHANGEOVERS ISOLATED RELAY SWITCHING X20DO4529 B&R X20DO4529 is a four-channel X20 relay output module with isolated changeover contacts for switching DC and AC field loads in industrial control systems. INSTALLATION MATCH Select the X20TB12 terminal block and X20BM11 or X20BM15 bus module separately; size external suppression for the connected load. APPLICATION SNAPSHOT Four individually isolated relay outputs for mixed loads OUTPUTS4 relay channels CONTACT TYPEChangeover PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch load + suppression Top QualityFast DeliveryWorldwide Shipping INQUIRE NOW

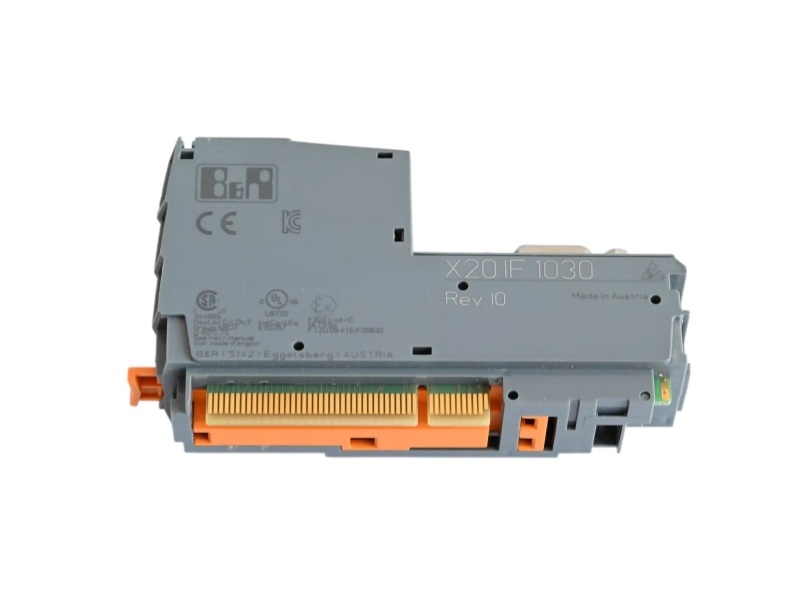

  B&R · X20 COMMUNICATION RS485 · RS422 SERIAL INTERFACE EXPANSION X20IF1030 B&R X20IF1030 is an X20 controller interface module providing one RS485 or RS422 serial port for application-specific device communication. INSTALLATION MATCH Install in a supported X20 PLC interface slot and verify DSUB pinout, baud rate, topology and external termination before connection. APPLICATION SNAPSHOT One isolated serial interface for an X20 controller INTERFACERS485 / RS422 CONNECTOR9-pin female DSUB PRODUCT STATUSOfficial B&R record SELECTION CONTROLCheck protocol + pinout Brand New OriginalFast Delivery24/7 Service INQUIRE NOW

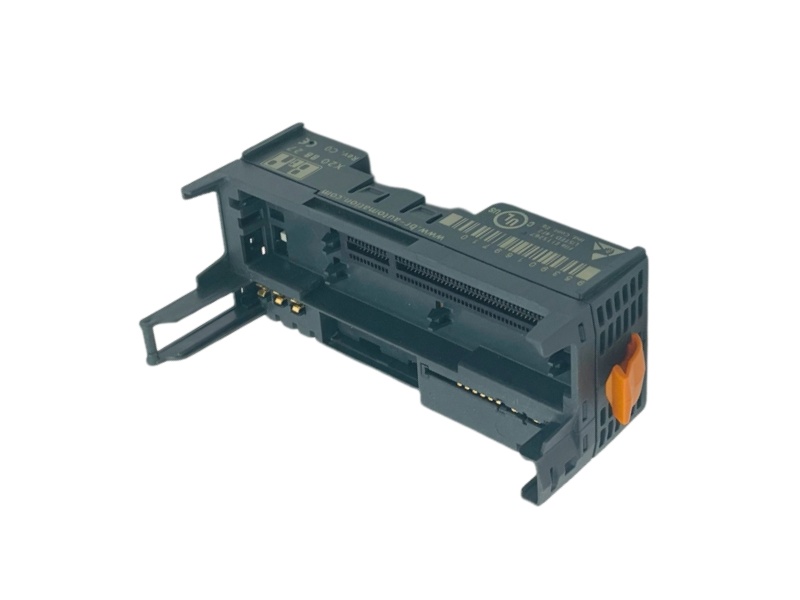

  B&R · X20 COMPACT CONTROL RS232 · CAN BASE COMPACT CPU BACKPLANE X20BB27 B&R X20BB27 is a bus module for X20 Compact CPUs, combining the mechanical backplane with integrated RS232 and CAN interfaces. INSTALLATION MATCH Order the matching Compact CPU and CPU power module separately; verify interface pinout, CAN termination and complete station compatibility. APPLICATION SNAPSHOT CPU base with integrated RS232 and CAN interfaces SERIAL PORT1 RS232 FIELD BUS1 CAN PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch CPU + power module Integrity SupplyOne Year WarrantyFast Delivery INQUIRE NOW

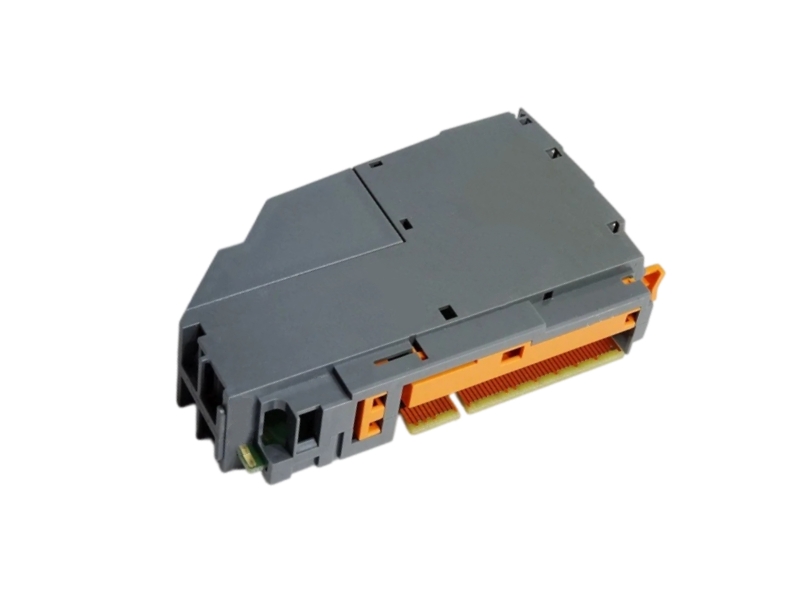

B&R / X20 SYSTEM240 VAC BUS BASE X20BM32   240 VAC double-width X20 bus base 240 VAC KEYINGDOUBLE-WIDTH MODULETERMINAL MATCH REQUIRED HIGH-VOLTAGE I/O FOUNDATION25 MM PITCH B&R X20BM32 is a double-width X20 bus module mechanically keyed for compatible 240 VAC I/O electronics. Its internal I/O supply contacts are interconnected for the installed module assembly. MATCH BEFORE ORDERINGVerify the 240 VAC module code, double-width footprint, terminal block and cabinet isolation design before ordering. NOMINAL I/O SUPPLY24 VDC internal bus CONTACT LOAD10 A maximum MOUNTINGHorizontal or vertical  Brand New Original One Year Warranty INQUIRE NOW

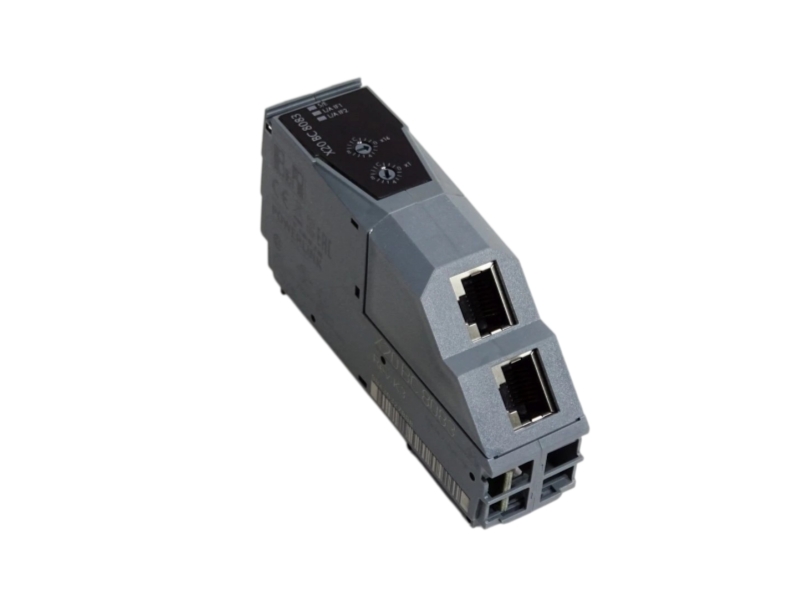

B&R / X20 SYSTEMPOWERLINK BUS CONTROLLER X20BC8083   Expandable POWERLINK node for an X20 station NETWORK ROLE CHECKBUS BASE REQUIREDHUB OPTION REVIEW DETERMINISTIC I/O CONNECTIVITY100BASE-TX B&R X20BC8083 is an expandable POWERLINK controlled node for integrating an X20 I/O station. Two integrated hub interfaces and optional hub expansions support deterministic machine-network topologies. MATCH BEFORE ORDERINGConfirm POWERLINK role, X20 station layout, suitable bus base, X20TB12 terminal and any required hub expansion before ordering. MINIMUM CYCLE200 µs HUB INTERFACES2 shielded RJ45 EXPANSIONUp to 2 hub slots  Brand New Original One Year Warranty INQUIRE NOW

B&R / X20 SYSTEM24 VDC BUS BASE X20BM11   24 VDC X20 bus base for I/O modules I/O MODULE MATCHPOTENTIAL GROUP CHECKTERMINAL MATCH REQUIRED STANDARD X20 I/O FOUNDATION12.5 MM PITCH B&R X20BM11 is a standard-width X20 bus module for compatible 24 VDC I/O electronics. It mounts the electronics on the rail and continues the internal I/O supply through the station position. MATCH BEFORE ORDERINGMatch the electronics module, terminal block, potential group and mounting orientation; do not select the base by width alone. I/O SUPPLY24 VDC nominal CONTACT CAPACITY10 A PROTECTIONIP20  Brand New Original One Year Warranty INQUIRE NOW
