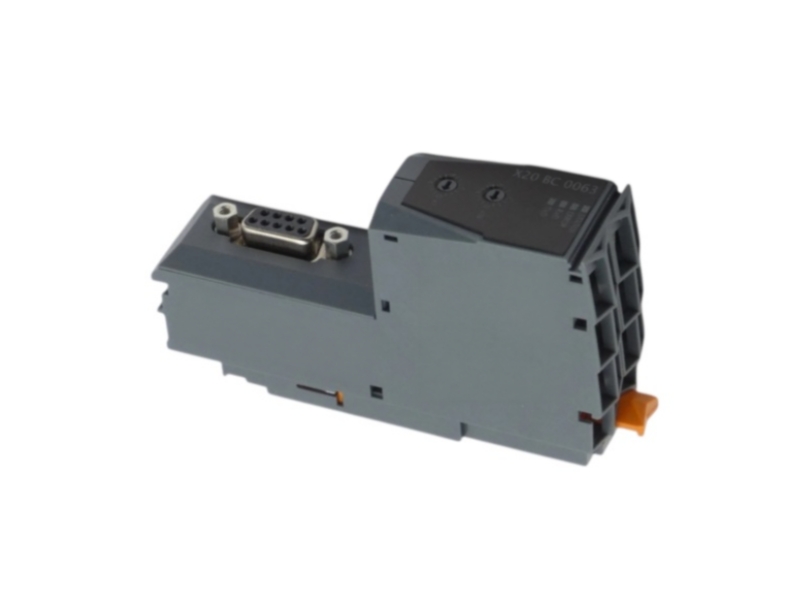

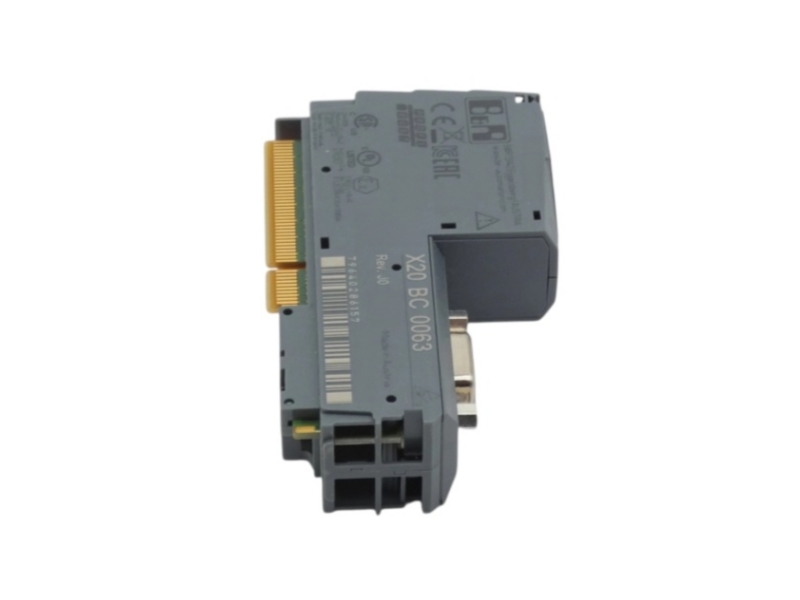

Name: B&R X20BC0063 PROFIBUS DP Bus Controller
Availability: InStock

VERIFIED PRODUCT DATA

Product specifications

Official B&R PROFIBUS, X2X Link, diagnostic, environmental and assembly data for X20BC0063.

PARAMETEROFFICIAL VALUEPARAMETEROFFICIAL VALUE

Fieldbus rolePROFIBUS DP V0 slaveB&R ID code0x1F1C

Fieldbus interfaceRS485Horizontal operationSupported orientation

Connector9-pin female DSUBVertical operationPermitted orientation

Maximum transfer rate12 Mbit/sOperating temperature, horizontal-25 to 60°C

Transfer-rate selectionAutomatic detectionOperating temperature, vertical-25 to 50°C

Maximum bus distance1200 mStorage / transport temperature-40 to 85°C

X2X Link minimum cycle400 µsRelative humidity5 to 95%, non-condensing

Fieldbus minimum cycleNo limitationInstallation altitudeNo derating to 2000 m

Bus-system synchronizationNot supportedAltitude derating0.5°C per 100 m above 2000 m

PROFIBUS-to-I/O isolationIsolatedDegree of protectionIP20

PROFIBUS-to-bus isolationNot isolatedModule pitch37.5 +0.2 mm

Bus power consumption2.3 WRequired bus baseX20BB80

Module diagnosticsLED and softwareRequired terminal blockX20TB12

Bus-function diagnosticsLED indicationApproved supply moduleX20PS9400 or X20PS9402

Data-transfer diagnosticsData status LEDCertificationsCE, UKCA, cULus, HazLoc and KC

B&R specifies X20BB80, X20PS9400 or X20PS9402, and X20TB12 as separate required components.

02FUNCTION
& APPLICATION

PROFIBUS station integration plan

Build the X20 station, import the correct GSD package and validate network diagnostics from the master.

01 / STATION BUILD

Assemble the controller head

Combine the controller with its approved base, supply and terminal hardware before adding the required X20 I/O modules.

02 / MASTER SETUP

Configure the PROFIBUS slave

Import the vendor GSD package, assign the station address and reproduce the physical module sequence in the master project.

03 / SERVICE

Use layered diagnostics

Check controller LEDs, bus state, data exchange and individual module diagnostics to isolate wiring, configuration or missing-node faults.

PROJECT PLANNING CHECKPOINTS

TOPOLOGY

Confirm segment length, baud rate, connector layout and termination at both bus ends.

GSD

Use the official X20BC0063 package that supports the installed I/O module set.

ADDRESS

Avoid duplicate node addresses and record the configured station number for service.

POWER

Separate fieldbus troubleshooting from X20 station and I/O power checks.

NETWORK NOTE

B&R publishes current product data and GSD resources; the working project must still match the station hardware sequence.

TECHNICAL & ORDER SUPPORT

Product FAQ & Buying Guide

Find practical answers for purchasing, compatibility, documentation and replacement planning.

What network role does B&R X20BC0063 take in a PROFIBUS system?

It behaves as a DP V0 slave and exposes the attached X20 station to the controlling PROFIBUS master.

Which separate hardware pieces are necessary to mount B&R X20BC0063?

The controller head is completed with the specified X20 bus base, one approved supply module and the keyed terminal block listed by B&R.

Can B&R X20BC0063 keep communicating if an X20 node is absent?

The controller is designed so communication with available X2X Link nodes can continue when some nodes are missing or not powered, subject to project diagnostics and application handling.

How can a buyer validate an offered B&R X20BC0063 before shipment?

Request the nameplate, connector and terminal-area photos, then confirm power-up and bus-status evidence against the quoted condition.

What project work is needed when exchanging B&R X20BC0063 for another bus-controller model?

Recreate the fieldbus definition with the correct GSD, address, I/O order and diagnostic mapping; a different protocol controller is not a drop-in substitute.

Which files should be reviewed when requesting B&R X20BC0063 pricing?

Use the product datasheet, PROFIBUS Bus Controller manual and official GSD package, and submit the existing station layout, master type, quantity and destination.
