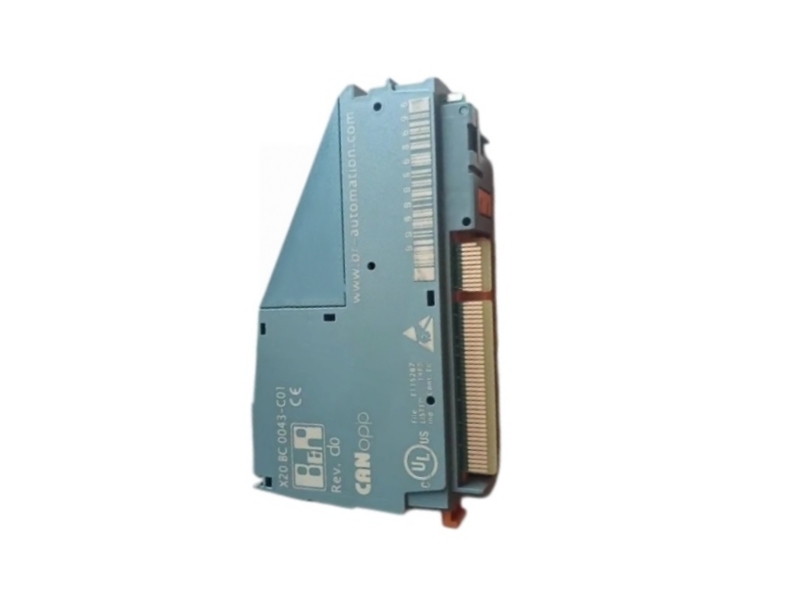

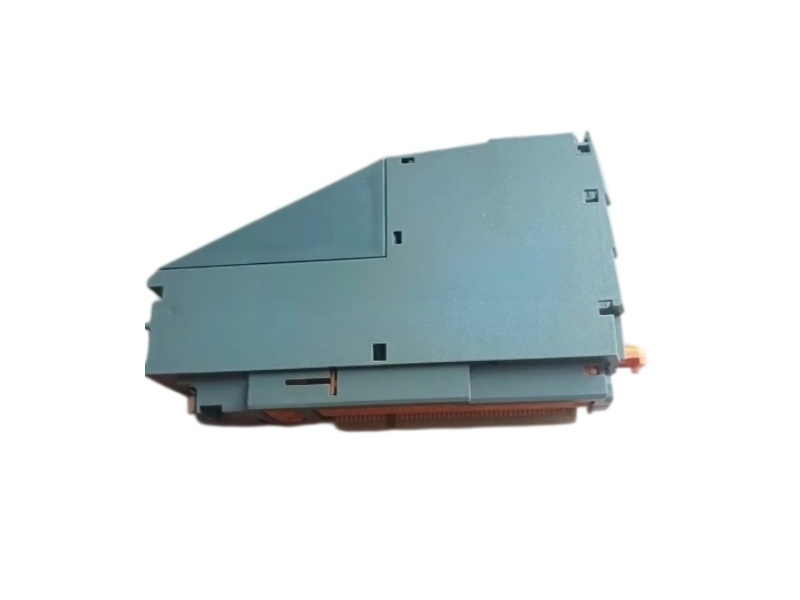

Name: B&R X20BC0043-C01 CANopen Bus Controller Module
Availability: InStock

B&R X20BC0043-C01 CANopen Bus Controller Module

B&R X20 FIELDBUS CONTROLOFFICIAL DATA

X20BC0043-C01

B&R X20BC0043-C01 is a nameplate-identified X20 CANopen bus controller variant for linking a CANopen master to modular X20 I/O through X2X Link.

Brand New OriginalOne Year WarrantyFast Delivery

CANOPEN / X2X LINK

CANopen gateway for modular X20 I/O

1 Mbit/sMAX RATE

1000 mMAX DISTANCE

32 + 32RX / TX PDO

500 µsX2X CYCLE

CURRENT OFFICIAL FAMILYX20BC0043-10 documentation

PRODUCT ENQUIRYInquire Nowab@mooreplc.com

OFFICIAL FAMILY DATA

CANopen control & network limits

Verified B&R X20BC0043 family fieldbus, diagnostic, electrical and environmental data; revision match requires confirmation.

Fieldbus roleCANopen slave

Fieldbus connector5-pin male multipoint

Maximum bus distance1000 m

Maximum transfer rate1 Mbit/s

Baud selectionAutomatic detection or fixed setting

X2X Link minimum cycle500 µs

Process data objectsMaximum 32 Rx and 32 Tx PDOs

Configurable I/O cycle0.5 to 4 ms

CANopen servicesHeartbeat, emergency, 2 SDO servers, NMT slave

TerminationIntegrated resistor with status indication

Bus power consumption1.5 W; revisions below H0: 2 W

Electrical isolationCANopen isolated from I/O

Degree of protectionIP20

Mounting orientationHorizontal or vertical

Horizontal operating temperature-25 to 60°C

Vertical operating temperature-25 to 50°C

Storage / transport temperature-40 to 85°C

Module pitch37.5 +0.2 mm

Official dimensions and weight are shown only where the reviewed manufacturer material explicitly states them. The exact -C01 suffix is not published as a current orderable material number on the reviewed B&R page.

NETWORK TOPOLOGY MAP

CANopen-to-X20 data path

A topology-centered view of CAN addressing, PDO exchange, X2X I/O and accessory planning.

BUS CONTROLLER ROUTE

STAGE 01

Join CANopen

Connect the controller as a slave on a correctly terminated CAN line.

STAGE 02

Set node behavior

Establish node identity, baud handling and CANopen state-management behavior.

STAGE 03

Map process data

Allocate receive and transmit PDOs for the required X20 I/O data.

STAGE 04

Serve X20 I/O

Exchange mapped values with the local X2X modules at the configured station cycle.

NETWORK ROLES

Remote I/O island

Extend a CANopen machine network with modular X20 digital, analog and specialty I/O.

Mixed-vendor master

Expose X20 I/O to a compliant CANopen master using the provided device description.

Deterministic station

Keep the local I/O cycle defined while process data is organized in CANopen PDOs.

TOPOLOGY CHECKPOINTS

IDENTITY

Confirm whether -C01 is a hardware revision and match the project definition.

TERMINATION

Use the integrated terminator only at the correct physical end of the line.

ACCESSORIES

Plan X20BB80, X20PS9400 or X20PS9402 and the required terminals.

EDS

Use the B&R device-description package that matches the recognized controller revision.

BUYER DECISION SUPPORT

Common Questions About X20BC0043-C01

Focused guidance for revision identity, CAN topology, process-data mapping, lifecycle, replacement and source verification.

Why must the -C01 suffix on B&R X20BC0043-C01 be verified before a replacement order?

The reviewed current B&R product page publishes X20BC0043-10, not -C01. The complete label and Automation Studio hardware entry are therefore needed to establish whether C01 is a revision identifier and which orderable material is equivalent.

How does B&R X20BC0043-C01 participate in CANopen network management?

Official X20BC0043 family documentation defines the controller as an NMT slave with heartbeat consumer and producer functions, emergency production and two SDO servers.

Which process-data planning limit matters when mapping an X20 station behind B&R X20BC0043-C01?

The documented family supports up to 32 receive and 32 transmit PDOs, so the required X20 data must fit the selected mapping and master configuration.

What hardware surrounds B&R X20BC0043-C01 in a complete X20 bus-controller assembly?

The current official family page calls for an X20BB80 bus base, X20PS9400 or X20PS9402 power module, X20TB12 and a separate five-pin fieldbus terminal.

Can B&R X20BC0043-C01 be replaced directly by B&R X20BC0043-10?

B&R's reviewed public page does not state a direct revision-level interchange rule. Compare hardware revision, firmware, EDS file, project configuration, accessories and field wiring before substitution.

What should be requested with a quote for B&R X20BC0043-C01 when official identity is uncertain?

Send clear photographs of every label, the Automation Studio hardware entry, firmware information, EDS reference, master type, accessory list, quantity and destination so the exact orderable variant can be confirmed.
