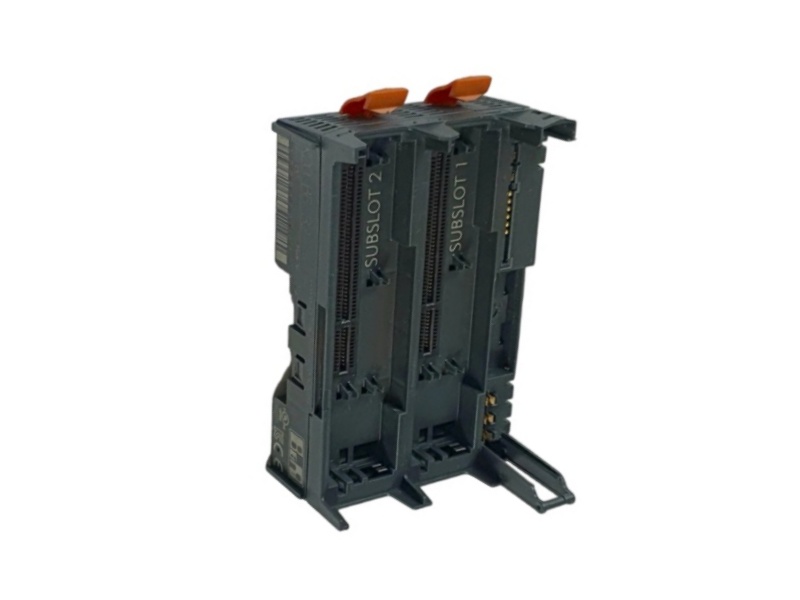

B&R X20BB32 Fieldbus CPU Bus Module product view

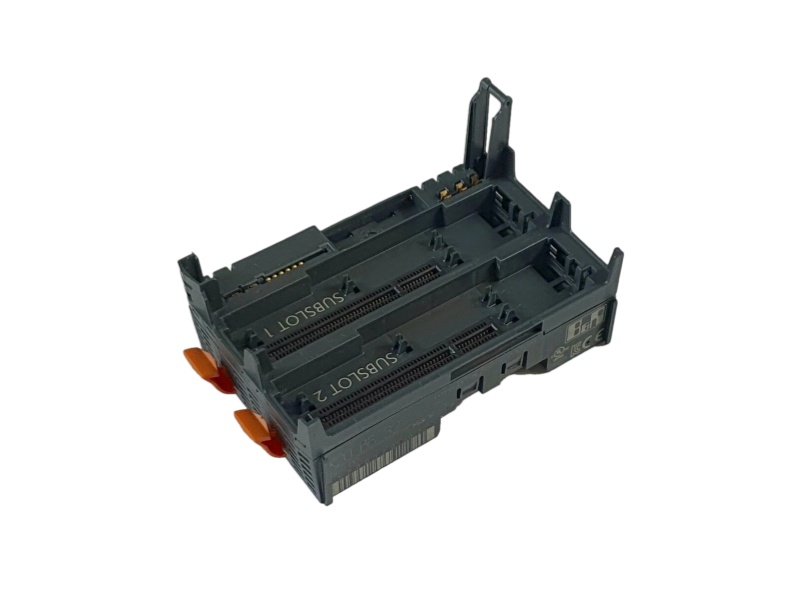

B&R X20BB32 Fieldbus CPU Bus Module alternate view
B&R X20BB32 label and connection view

B&R X20BB32 X20 Fieldbus CPU Bus Module


PRODUCT ENQUIRY

Fieldbus CPU backplane and RS232 base

Inquire Nowab@mooreplc.com →
B&RX20 BUS MODULE

X20BB32

B&R X20BB32 is a powered bus base with an integrated RS232 interface for connecting and supporting X20 Fieldbus CPUs.

●  One Year Warranty●  Fast Delivery●  Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20BB32
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL ENGINEERING DATA

Backplane, power and environmental specifications

The module defines the mechanical base, I/O feed and serial connection for a Fieldbus CPU station.

Bus-module roleBase for all X20 Fieldbus CPUsIntegrated interface1 RS232 connection
Bus power consumption0.35 WI/O supply voltage24 VDC
Permissible contact load10 AElectrical isolationBus not isolated from RS232
MountingHorizontal or verticalInstallation altitude0 to 2000 m without limitation
Altitude derating0.5°C per 100 m above 2000 mDegree of protectionIP20
Horizontal operation-25 to 60°CVertical operation-25 to 50°C
Storage / transport-40 to 85°CRelative humidity5 to 95%, non-condensing
Included partsLeft and right X20 end cover platesModule pitch62.5 +0.2 mm
ATEX ratingZone 2, II 3G Ex nA nC IIA T5 GcUL approvalcULus E115267 industrial control equipment
02
FROM INPUT TO CONTROL

How X20BB32 builds a Fieldbus CPU station

One base aligns the Fieldbus CPU, power module and interface hardware on the X20 backplane.

01

Mount

Clip the bus module to the rail in the permitted horizontal or vertical orientation.

02

Seat

Install the matching Fieldbus CPU, CPU power supply and interface module on the base.

03

Feed

Route the 24 VDC I/O supply through contacts rated for the documented load.

04

Service

Use the integrated RS232 path with the documented common-potential arrangement.

ENGINEERING FIT
FIT 01

Fieldbus CPU assembly

Use the base as the mechanical and electrical backplane for an X20 Fieldbus CPU.

FIT 02

Compact serial access

Use the built-in RS232 connection where the selected CPU configuration requires it.

FIT 03

Panel integration

Account for orientation, pitch and altitude derating when laying out the station.

03
BUYER QUESTIONS

FAQ for B&R X20BB32

Model-specific answers support engineering and purchasing decisions.

01

What equipment is mechanically supported by B&R X20BB32?

B&R defines X20BB32 as the backplane for an X20 Fieldbus CPU, its Fieldbus CPU power supply module and an interface module.

02

Is the RS232 connection on B&R X20BB32 galvanically isolated from the bus?

No. The official technical data states that the bus is not isolated from the RS232 connection.

03

Are X20 end cover plates included with B&R X20BB32?

Yes. B&R states that the left and right X20 end cover plates are included in the delivery.

04

How does installation above 2000 m affect B&R X20BB32?

B&R specifies no altitude limitation through 2000 m and requires the maximum ambient temperature to be reduced by 0.5°C per additional 100 m.

05

What should be checked before replacing another X20 Fieldbus CPU base with B&R X20BB32?

Verify the CPU family, power-supply module, interface module, RS232 wiring, I/O contact load and required 62.5 mm station pitch.

06

Which ordering details help confirm B&R X20BB32 documentation and supply?

Send the Fieldbus CPU and power-module numbers, installed interface module, station photo, quantity, destination and required delivery date.
