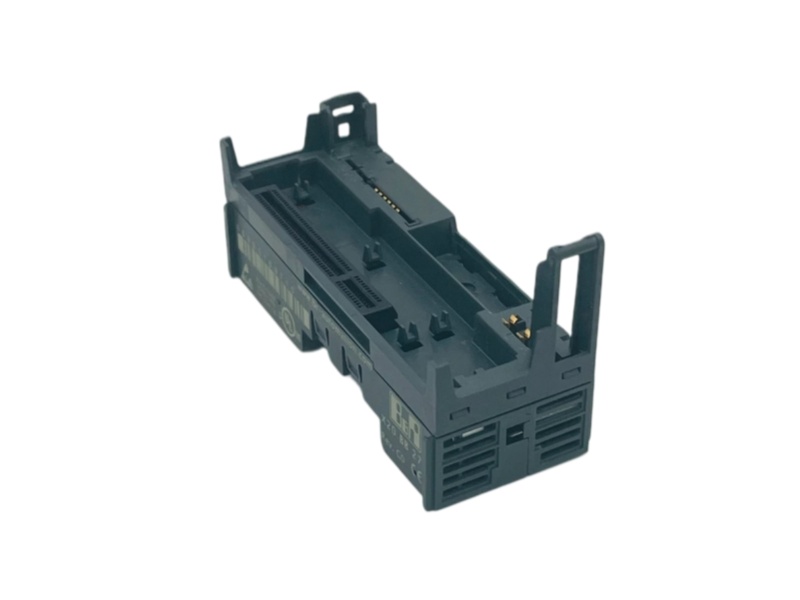

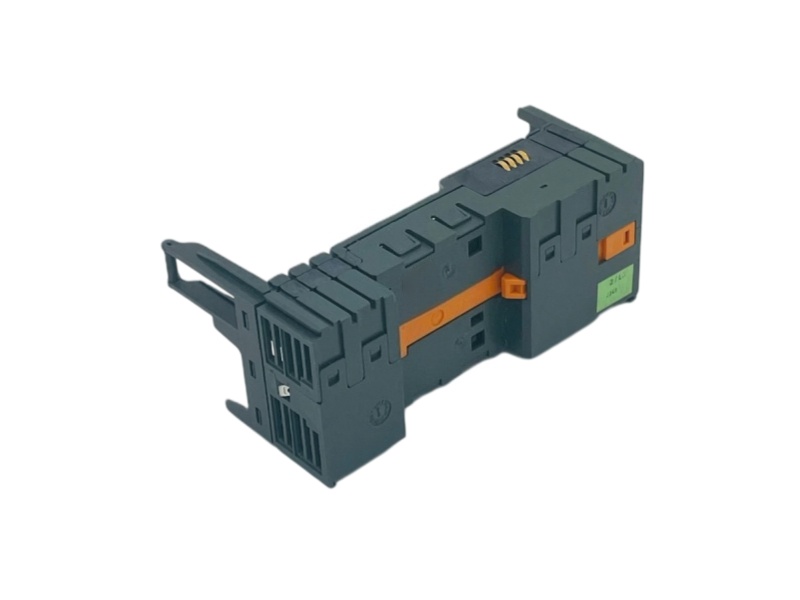

B&R X20BB27 X20 Compact CPU Bus Module

Name: B&R X20BB27 X20 Compact CPU Bus Module
Availability: InStock

B&R · X20 COMPACT CONTROL RS232 · CAN BASE

COMPACT CPU BACKPLANE

X20BB27

B&R X20BB27 is a bus module for X20 Compact CPUs, combining the mechanical backplane with integrated RS232 and CAN interfaces.

INSTALLATION MATCH Order the matching Compact CPU and CPU power module separately; verify interface pinout, CAN termination and complete station compatibility.

APPLICATION SNAPSHOT CPU base with integrated RS232 and CAN interfaces

SERIAL PORT1 RS232

FIELD BUS1 CAN

PRODUCT STATUSOfficial B&R record

SELECTION CONTROLMatch CPU + power module

Integrity SupplyOne Year WarrantyFast Delivery

INQUIRE NOW

Inquire Now

Worldwide delivery
Delivery from stock
In stock really means in stock
No account required
Shipped from the China

Product Specifications

Manufacturer	B&R
Item number	X20BB27
Country of Origin	Austria
Lead Time	2-3 DAYS
After-Sales Support	One Year Warranty
HS Code / Commodity code	Please confirm the destination before shipping.

FAQ

How long is my quote valid for?

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Is there any warranty?

Yes,we offer one year warranty for all new products.

Do you offer global delivery?

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

How many days will it take for my part to arrive?

Normally 3-5 working days,some remote areas 5-7 days more.

Product information

TECHNICAL PROFILE

X20BB27 base, interface and supply data

Official backplane, serial, CAN, supply and environmental information for the exact Compact CPU bus module.

CPU BASE & COMMUNICATION PORTS

Product roleBus module for X20 Compact CPU

Backplane supportCompact CPU and CPU power module

RS232 interfaces1

CAN interfaces1

CAN terminationIntegrated terminating resistor

Bus power consumption0.53 W

I/O supply voltage24 VDC nominal

Permissible contact load10 A

RS232-to-CAN isolationNo

Interface-to-bus isolationNo

SUPPLY, INSTALLATION & ENVIRONMENT

MountingHorizontal or vertical

Degree of protectionIP20

Operating temperature-25 to 60°C horizontal; -25 to 50°C vertical

Storage and transport-40 to 85°C

Relative humidity5 to 95%, non-condensing

ElevationNo limitation from 0 to 2000 m

Above 2000 mReduce ambient limit by 0.5°C per 100 m

Module pitch37.5 +0.2 mm

Included partsLeft and right end plates

ApprovalsCE, UKCA, UL, HazLoc, ATEX and marine approvals

BASE IDENTITYVerify the X20BB27 base configuration

Verify the Compact CPU, power module and interface needs.

COMPLETE THE CONTROL ASSEMBLY

X20BB27 bus module

Compatible Compact CPU

Matching CPU power module

SIGNAL WORKFLOW

How X20BB27 anchors a Compact CPU station

A system view of backplane support, controller power distribution and integrated serial or CAN connectivity.

STEP 01Match the controller stack

Confirm that the CPU and power module belong to the supported Compact CPU assembly.

STEP 02Plan shared references

Account for the documented non-isolated relationship between the interfaces and backplane.

STEP 03Terminate CAN correctly

Coordinate the integrated terminating resistor with the installed CAN segment design.

CONTROL BASE PATHpower module + Compact CPU → X20BB27 backplane → RS232/CAN + X20 busThe base is part of a matched controller assembly, not a standalone communication device

USE 01Build compact machine controls

Provide the physical and electrical base for a space-efficient X20 Compact CPU station.

USE 02Connect CAN devices

Expose the controller to compatible CAN networks while using the integrated termination feature.

USE 03Link serial service equipment

Use the RS232 connection for compatible engineering or device communication functions.

USE 04Distribute station power

Carry the documented I/O supply path through the Compact CPU base assembly.

USE 05Replace damaged backplanes

Restore the correct base when the CPU and power module remain part of the verified configuration.

USE 06Standardize controller builds

Use a known Compact CPU base arrangement across repeated machine designs after compatibility review.

PURCHASING FAQ

Questions buyers ask before ordering X20BB27

Practical purchasing guidance for clearer, more confident decisions.

What does B&R X20BB27 contribute to an X20 Compact CPU assembly?

It forms the bus-module backplane and adds the documented RS232 and CAN interfaces; the CPU and CPU power module are separate components.

Does B&R X20BB27 electrically isolate its communication ports?

No. B&R states that the bus, CAN and RS232 interfaces are not electrically isolated from one another, so grounding must follow the system design.

Which applications are a good fit for B&R X20BB27?

It suits compact machine controllers that need the supported CPU base plus local serial and CAN connectivity in one assembly.

How is B&R X20BB27 supply availability handled?

The official B&R page identifies the exact module without a discontinuation notice. Current inventory, condition and lead time are confirmed at quotation.

Can B&R X20BB27 replace X20BB22 without configuration checks?

No automatic substitution should be assumed. X20BB27 adds CAN alongside RS232, so CPU compatibility, wiring, termination and the configured hardware layout must be reviewed.

What should a buyer provide for a B&R X20BB27 quote?

Send the full base label, Compact CPU and power-module numbers, required interfaces, hardware revision, quantity, condition and delivery address.
