Name: B&R X20AT2311 X20 2-Channel PT100 Temperature Input Module
Availability: InStock

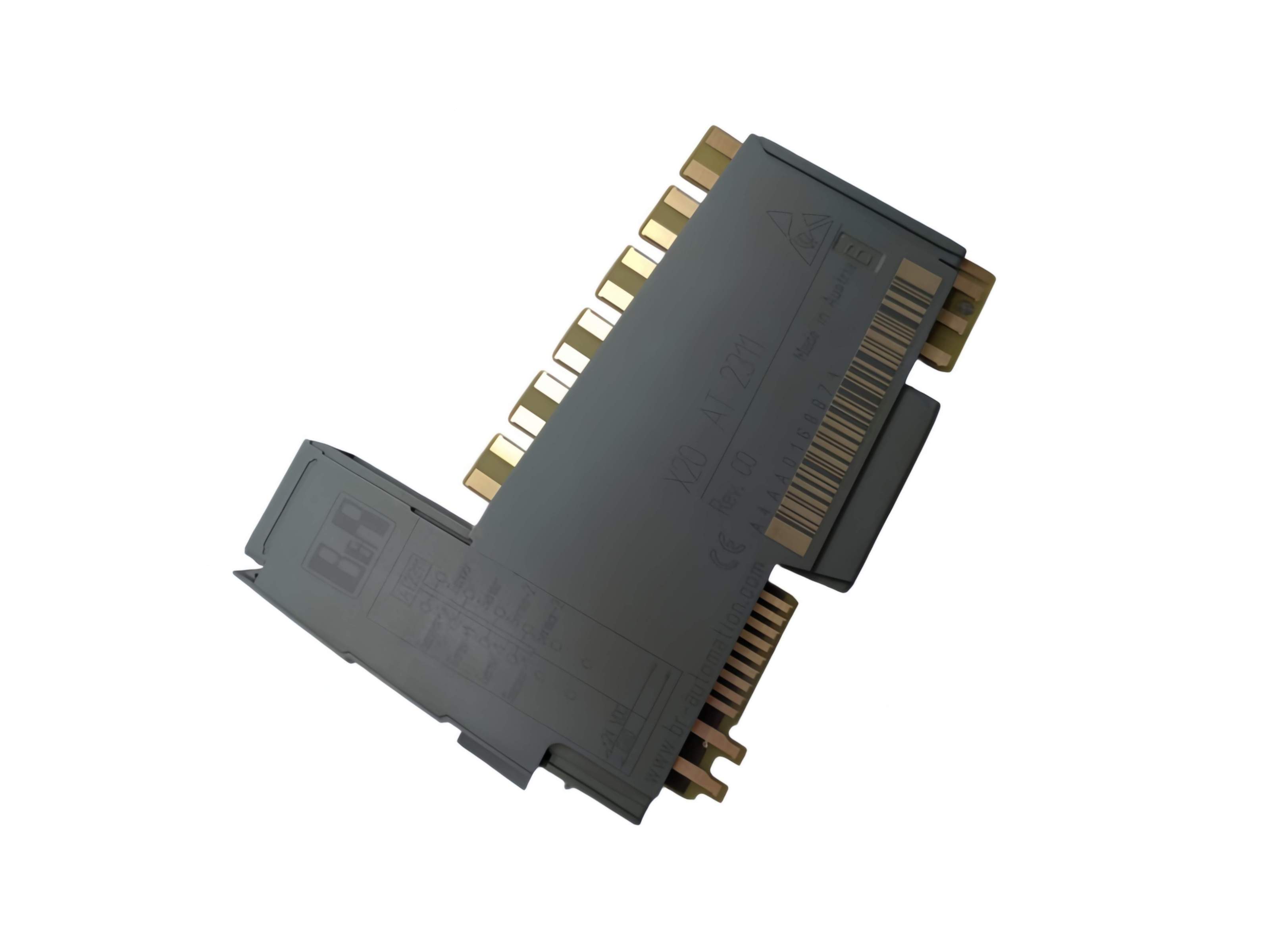

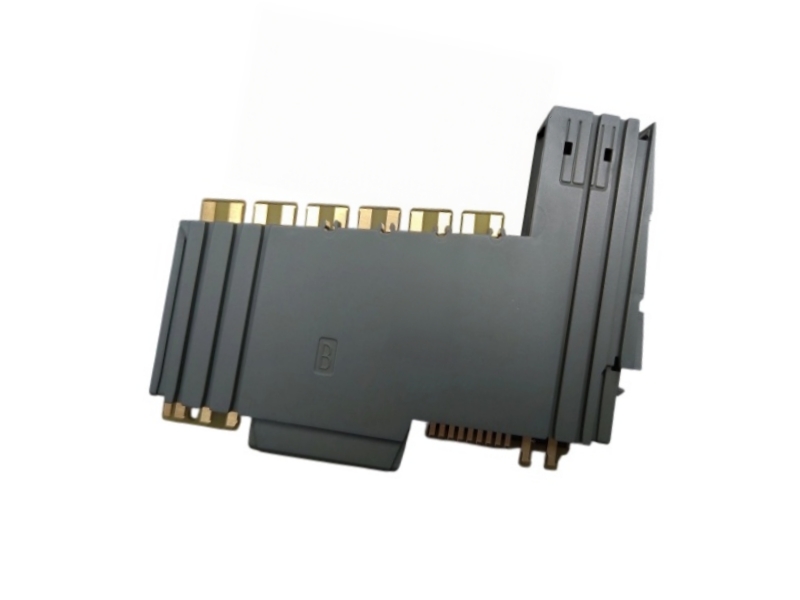

B&R X20AT2311 X20 2-Channel PT100 Temperature Input Module

B&R / X20 SYSTEM

PRECISION TEMPERATURE ACQUISITION

PT100 / 4-WIRE

TEMPERATURE INPUT / RESISTANCE MEASUREMENT

X20AT2311

B&R X20AT2311 is a two-channel X20 input for isolated four-wire PT100 temperature measurement with configurable filtering.

MATCH BEFORE ORDERING Order the X20TB12 terminal block and X20BM11 or X20BM15 bus module separately; confirm sensor standard, four-wire routing, filter time and Automation Studio revision.

INPUT GROUP 2 isolated PT100 channels

MEASUREMENT SPAN -200 to 850°C

CONVERTER 24-bit sigma-delta

Brand New Original One Year Warranty Rapid response

INQUIRE NOW

OFFICIAL TEMPERATURE DATA

X20AT2311 sensor, conversion and installation profile

B&R measurement accuracy, timing, isolation and environmental data for precise resistance-temperature integration.

MEASUREMENT COREA / 12

01B&R ID code0xA4AA

02Temperature inputs2 channels

03Sensor typePT100

04Connection method4-wire resistance measurement

05Temperature range-200 to 850°C

06Resistance range0.5 to 390 Ω

07Converter resolution24-bit

08Conversion procedureSigma-delta

09Configurable filter time1 to 400 ms

101000 Hz conversion time1 ms for all inputs

1150 Hz conversion time20 ms for all inputs

12Temperature resolution0.001°C per LSB

ACCURACY & INSTALLATIONB / 12

13Resistance resolution0.001 Ω

14Measuring current1 mA

15Input filterFirst-order low-pass, 1050 Hz cutoff

16Sensor standardEN 60751

17Permissible input signal28.8 V short-term maximum

18Gain error at 25°C±0.0059% maximum

19Offset error at 25°C±0.0015% maximum

20NonlinearityLess than 0.001%

21Electrical isolationEach channel isolated from the other channel and bus

22Bus power consumption0.35 W

23Internal I/O consumption0.85 W

24Module pitch12.5 +0.2 mm

FROM RTD TO PROCESS VALUE

How X20AT2311 converts PT100 resistance into controller temperature data

The signal path connects sensor excitation, lead-wire compensation, digital conversion and X20 process data.

01PT100 SENSOR

024-WIRE INPUT

03DIGITAL FILTER

04TEMPERATURE VALUE

FUNCTION 01

Excite the resistance sensor

A stable measuring current enables the module to derive temperature from the connected RTD.

FUNCTION 02

Remove lead-wire influence

The four-conductor arrangement separates the sensing path from cable resistance in precision installations.

FUNCTION 03

Choose the noise response

The configured filter balances update behavior against rejection of electrical interference.

FUNCTION 04

Linearize the measured resistance

Internal processing applies the documented sensor characteristic before the result enters the controller.

FUNCTION 05

Separate measurement domains

Galvanic isolation limits interaction between the sensor circuits and the system backplane.

FUNCTION 06

Report wiring and range faults

Module and channel diagnostics help maintenance teams distinguish an open sensor from an out-of-range process value.

BUYER REFERENCE

B&R X20AT2311 buyer FAQ

Practical guidance for confident selection, replacement and purchasing decisions.

Which wiring practice is required for accurate B&R X20AT2311 measurement?

Use the documented four-conductor PT100 connection, keep sensor conductors paired and routed away from interference, and follow the X20 terminal assignment in the data sheet.

Which X20 station hardware must be paired with B&R X20AT2311?

B&R lists an X20TB12 terminal block and an X20BM11 or X20BM15 bus module as separately ordered components for the electronic module.

Which process tasks suit B&R X20AT2311?

It is intended for precise resistance-temperature acquisition in machines, test equipment and process skids where two independent RTD points are integrated into an X20 station.

Is B&R X20AT2311 discontinued or still open for inquiry?

B&R maintains a current product page, data sheet and hardware upgrades without a discontinuation notice. Current availability and revision are checked when quoting.

What must be reviewed before replacing an earlier B&R X20AT2311 revision?

Compare the material label, hardware upgrade notes, Automation Studio hardware definition, filter configuration, terminal block, base module and existing scaling before commissioning.

Which files and project details should be sent for a B&R X20AT2311 quotation?

Provide the module nameplate, Automation Studio version, sensor certificate, wiring diagram, filter requirement, quantity and destination with the request for the official data sheet or price.
