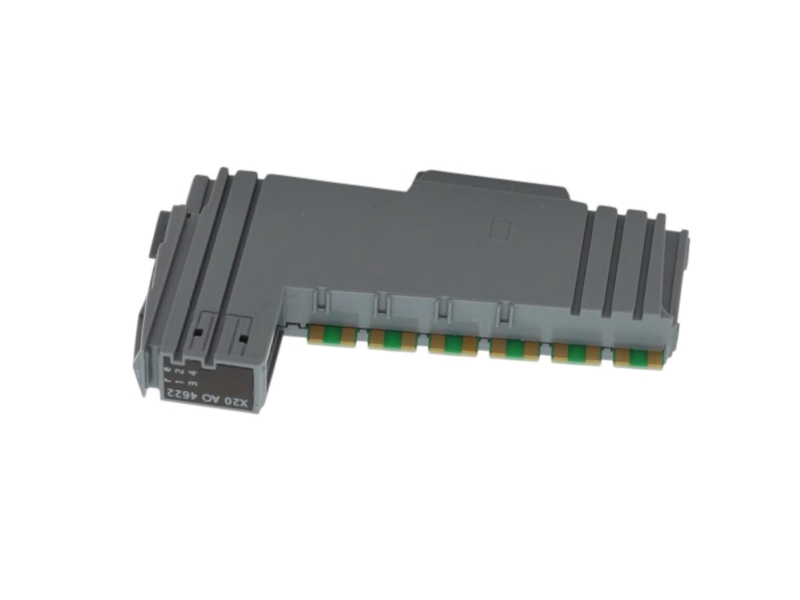

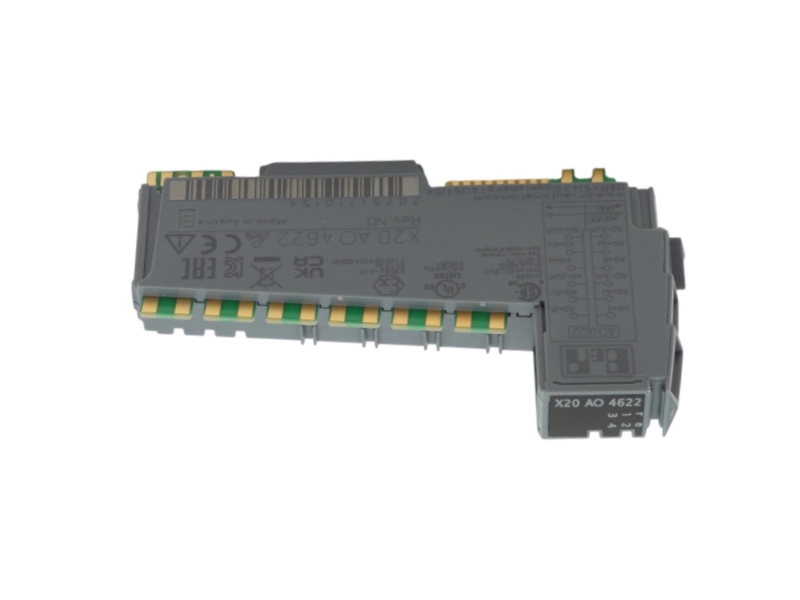

Name: B&R X20AO4622 X20 4-Channel Analog Output Module
Availability: InStock

OFFICIAL TECHNICAL DATA

X20AO4622 output and operating parameters

Two aligned parameter ledgers keep output performance and installation limits easy to compare.

OUTPUT CHANNEL PERFORMANCE

B&R ID code0x1BA3

Analog outputs4 channels

Voltage signal±10 V

Current signals0 to 20 mA / 4 to 20 mA

Voltage resolution±12-bit

Current resolution12-bit

Conversion time300 µs for all outputs

Settling time500 µs over the entire range

Voltage load≥1 kΩ

Current loadMax. 600 Ω (Rev. ≥ J0); 500 Ω (Rev. < J0)

Output protectionShort-circuit proof

Short-circuit current limit±40 mA

INTEGRATION & OPERATING LIMITS

Bus power consumption0.01 W

Internal I/O consumption1.8 W (Rev. ≥ J0); 2.2 W (Rev. < J0)

Channel-to-bus insulation500 Veff

Electrical isolationChannels isolated from bus; not channel-to-channel

Mounting orientationHorizontal or vertical

Degree of protectionIP20 per EN 60529

Horizontal operation-25 to 60°C (Rev. ≥ J0); 0 to 55°C (Rev. < J0)

Vertical operation-25 to 50°C (Rev. ≥ J0); 0 to 50°C (Rev. < J0)

Storage temperature-40 to 85°C

Transport temperature-40 to 85°C

Relative humidity5 to 95%, non-condensing

Module pitch12.5 +0.2 mm

CONTROL PATH

How X20AO4622 turns controller values into field setpoints

Signal conversion, terminal selection, startup behavior and diagnostics in one coordinated operating path.

01Controller value

02Digital conversion

03Selected terminal path

04Voltage / current load

FUNCTION 01

Select the field signal path

Use the dedicated voltage or current terminal path that matches the actuator and the configured channel mode.

FUNCTION 02

Convert controller values

The module converts process output words into stable analog setpoints for connected field equipment.

FUNCTION 03

Control startup behavior

An internal enable relay supports defined switch-on and switch-off behavior during station startup.

FUNCTION 04

Refresh the output group

All four channels are converted in one coordinated cycle for responsive multi-channel control.

FUNCTION 05

Check module and channel state

LED indication and software diagnostics help commissioning teams separate channel issues from module status.

FUNCTION 06

Protect the output stage

Short-circuit-resistant outputs reduce the risk of damage while wiring and load conditions are checked.

COMMISSIONING PRIORITYMatch the configured signal mode, physical terminal and connected load before enabling the output.

BUYER GUIDANCE

B&R X20AO4622 buyer FAQ

Configuration, replacement and quotation answers organized for quick sourcing decisions.

Can B&R X20AO4622 use voltage and current outputs in the same X20 station?

Yes. B&R provides separate voltage and current terminal paths. Match each connected channel's wiring, software configuration and field-device input before operation.

Which accessories must be ordered with B&R X20AO4622?

B&R lists the 12-pin X20TB12 terminal block and a compatible X20BM11 or X20BM15 bus module as separately ordered components for the complete X20 slice.

Are B&R X20AO4622 output channels electrically isolated from one another?

No. B&R specifies isolation between the output group and the bus, but not between individual channels. Review grounding and potential relationships for the connected loads.

What revision detail matters when replacing B&R X20AO4622?

The hardware revision affects permitted current-loop load and ambient limits. Send a clear nameplate photo and confirm the installed Automation Studio hardware definition before replacement.

Is B&R X20AO4622 discontinued or assigned an official replacement?

B&R maintains an active product page, a 2025 data sheet and current Automation Studio hardware upgrades without a discontinued notice. No direct official successor is published on the product page; supply is confirmed by quotation.

What should be provided for a B&R X20AO4622 manual and quotation request?

Send the complete module label and revision, installed bus module and terminal block, required signal type, load details, Automation Studio version, quantity, condition requirement and delivery destination.
