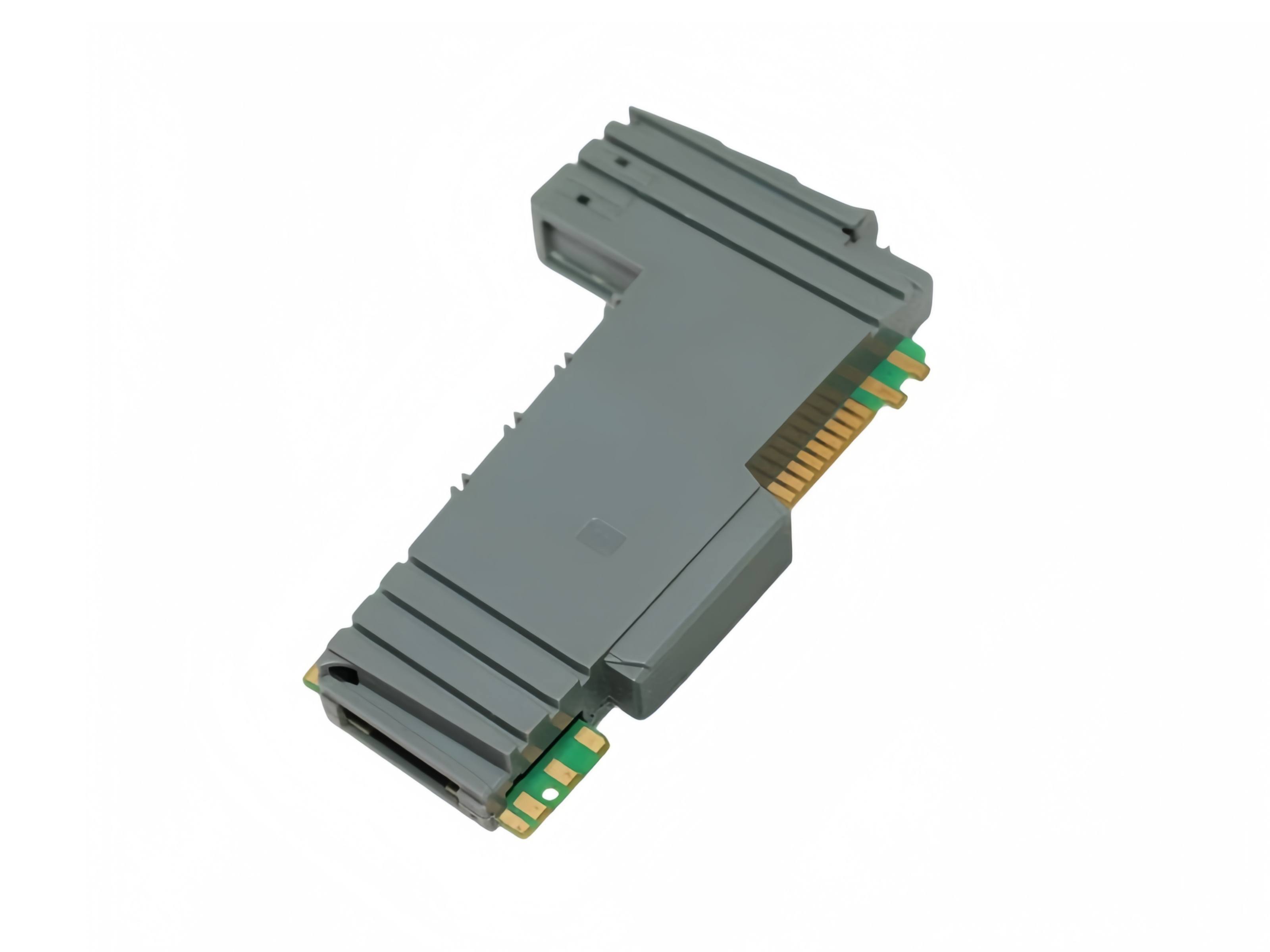

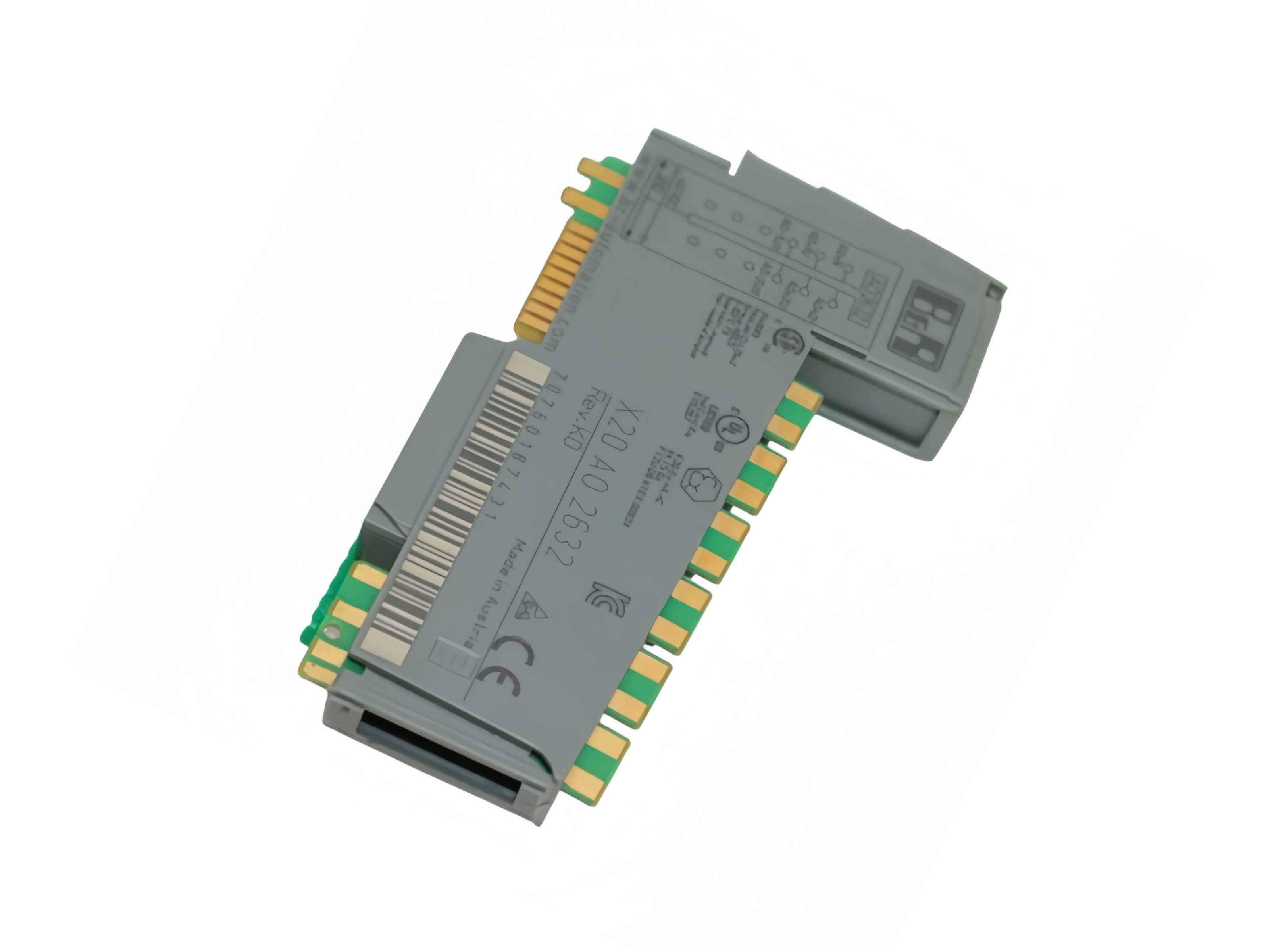

Name: B&R X20AO2632 2-Channel High-Speed Analog Output Module
Availability: InStock

PRODUCT INFORMATION

X20AO2632 Official Analog Output Parameters

Two balanced ledgers separate conversion and load behavior from isolation, environment and the separately ordered X20 installation components.

CHANNELS, SIGNALS & CONVERSION

B&R ID code0x1BA4

Analog outputs2

Voltage output range±10 V

Current output range0 to 20 mA

Mode selectionBy terminal selection

Voltage conversion resolution±15 bit including sign

Current conversion resolution15 bit

Conversion time50 µs for all outputs

Settling time500 µs from revision H0

Output protectionShort-circuit proof

Current limit±40 mA

Low-pass filter10 kHz

NonlinearityLess than 0.007%

Voltage data step305.176 µV/LSB

Current data step610.352 nA/LSB

POWER, ISOLATION, ENVIRONMENT & ACCESSORIES

Voltage-output load±10 mA max., 1 kΩ min.

Current-output load600 Ω max. from revision J0

Bus power consumption0.01 W

Internal I/O consumption1.1 W

Channel-to-bus isolation500 Veff

Channel-to-channel isolationNo

Horizontal operating temperature-25 to 60°C

Vertical operating temperature-25 to 50°C

Storage and transport temperature-40 to 85°C

Relative humidity5 to 95%, non-condensing

Protection ratingIP20

Module pitch12.5 mm + 0.2 mm

Terminal blocksX20TB06 or X20TB12, ordered separately

Bus modulesX20BM11 or X20BM15, ordered separately

Timestamp functionNetTime output switching

PRODUCT INFORMATION

How X20AO2632 Schedules Precision Analog Output Events

The controller value, module conversion, output driver and connected actuator form a fast and time-aware analog command path.

01Application value

02Output conversion

03Analog driver

04Field actuator

Receive channel setpoints

The X20 application writes the process value required by each connected field device.

Convert values quickly

A shared high-speed conversion process updates both output channels with short response time.

Select voltage or current wiring

Terminal selection lets each installation use the supported signal type without changing the module identity.

Drive industrial loads

Protected output stages deliver the requested signal while respecting the documented electrical load boundary.

Coordinate output timing

NetTime can align output events with time-aware tasks elsewhere in the B&R control system.

Support service diagnosis

Channel behavior, wiring mode, load and module revision can be checked systematically during commissioning.

PRODUCT INFORMATION

B&R X20AO2632 Buyer FAQ

Clear purchasing guidance for informed sourcing decisions.

How is voltage or current selected on B&R X20AO2632?

X20AO2632 uses the terminal connection to select the supported voltage or current mode. Confirm the field wiring and Automation Studio channel configuration together.

Why does the hardware revision matter for B&R X20AO2632 load matching?

B&R documents a different maximum current-output load before revision J0. Read the module revision before approving the connected load.

What does NetTime provide on B&R X20AO2632?

NetTime supports time-coordinated output switching so the application can align analog events with other deterministic X20 system actions.

Which installation parts are ordered separately for B&R X20AO2632?

The module requires the correct X20 terminal block and bus module. B&R lists X20TB06 or X20TB12 and X20BM11 or X20BM15 options.

Are the two outputs on B&R X20AO2632 isolated from each other?

No. The official data specifies isolation between the channels and bus, but not channel-to-channel isolation.

What should be supplied with a B&R X20AO2632 inquiry?

Send the full module label and revision, terminal and bus-module references, signal type per channel, load data, controller project, quantity and destination.
