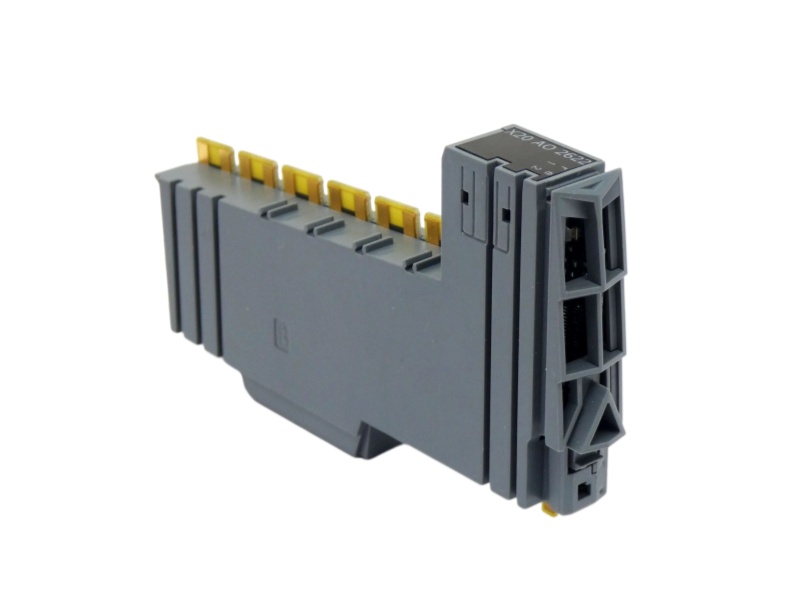

B&R X20AO2622 analog output module front view

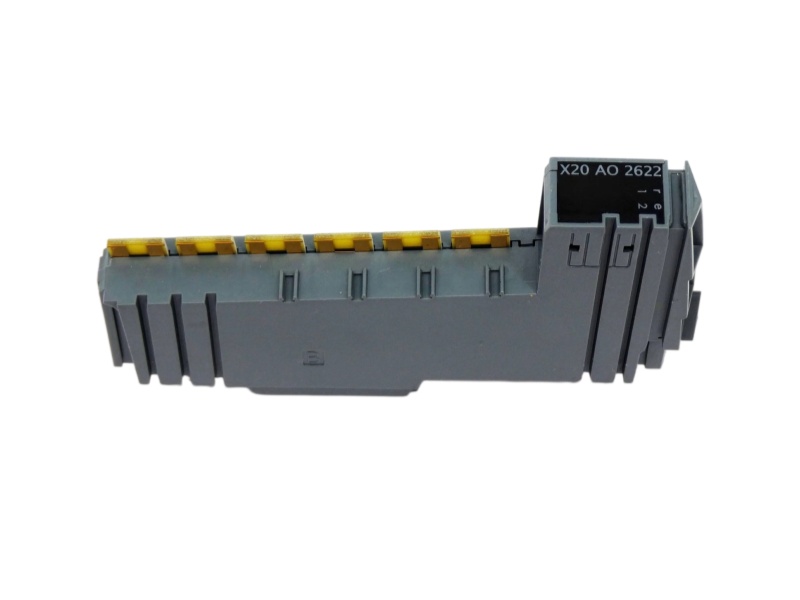

B&R X20AO2622 terminal detail
B&R X20AO2622 X20 module product image

B&R X20AO2622 X20 2-Channel Analog Output Module

B&R X20 ANALOG OUTPUT

X20AO2622

B&R X20AO2622 provides two software-selectable analog output channels for voltage or current signals, with per-channel diagnostics, protected outputs and isolated coupling to the X20 bus.

02Analog outputs
±10 VVoltage range
0/4-20 mACurrent range
200 µsConversion time
+Integrity Supply+One Year Warranty+Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20AO2622
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL ANALOG OUTPUT DATA

Analog output accuracy, timing and isolation data

Verified B&R signal specifications.

Analog output channels2
Channel configurationVoltage or current by terminal connection
Voltage output range-10 to +10 V
Current output ranges0 to 20 mA or 4 to 20 mA
Overall resolution13-bit including sign
Voltage resolution12-bit plus sign
Current resolution12-bit
Conversion time200 µs for all outputs
Settling time1 ms
Output filter10 kHz low-pass
Voltage loadMinimum 1 kΩ
Voltage output currentMaximum ±10 mA
Current load, revision J0 or laterMaximum 600 Ω
Current load, earlier revisionsMaximum 500 Ω
Short-circuit current limit±40 mA
NonlinearityLess than 0.007%
Output enableRelay controlled
Channel-to-bus isolation500 Veff
Channel-to-channel isolationNo
Bus power consumption0.01 W
Internal I/O consumption1.1 W
B&R ID code0x1BA2
Status indicationModule run/error and channel-type software status
Degree of protectionIP20
Horizontal operating range-25 to 60°C
Vertical operating range-25 to 50°C
Storage temperature-40 to 85°C
Relative humidity5 to 95%, non-condensing
Bus module optionsX20BM11 or X20BM15
Terminal block optionsX20TB06 or X20TB12
Module pitch12.5 +0.2 mm
Mounting orientationHorizontal or vertical
02
SIGNAL DELIVERY

Analog command path from controller to field device

Accurate actuator integration.

01

Configure

Assign the required signal type in the application and select the matching field terminal.

02

Scale

Map engineering values to the desired analog command range in the controller project.

03

Drive

Send the conditioned setpoint to the connected actuator, valve or measurement interface.

04

Diagnose

Use module and channel information to identify configuration or field-circuit problems.



Valve positioning

Analog command output for proportional valves and process actuators.



Drive setpoints

Speed or process references for equipment accepting standard analog signals.



Process instrumentation

Controller-generated outputs for compatible recorders, converters and instruments.

03
PRODUCT-SPECIFIC GUIDE

X20AO2622 questions answered

Reliable analog-signal guidance.

Q

How is voltage or current operation selected on B&R X20AO2622?

The signal type is determined by the configured channel function and the corresponding terminal connection; verify both before energizing the field circuit.

Q

Are the two outputs of B&R X20AO2622 isolated from each other?

No. The output group is isolated from the bus, but the channels are not mutually isolated, which must be considered in grounding and loop design.

Q

Why does hardware revision matter when loading B&R X20AO2622 current outputs?

B&R specifies a higher permitted current-loop load beginning with revision J0, so check the module revision before approving loop resistance.

Q

Which base and terminal parts can be paired with B&R X20AO2622?

The official page lists X20BM11 or X20BM15 bus modules and X20TB06 or X20TB12 terminal blocks; choose the wiring format required by the station.

Q

Where is B&R X20AO2622 commonly applied in a control system?

It converts controller values into standard analog commands for compatible valves, drives, converters and process instruments.

Q

How should B&R X20AO2622 be specified in a documentation and price request?

State the full model, hardware revision, required signal mode, field load, bus module, terminal block, quantity, condition and destination.
