Name: B&R X20AI4322 X20 4-Channel Analog Input Module
Availability: InStock

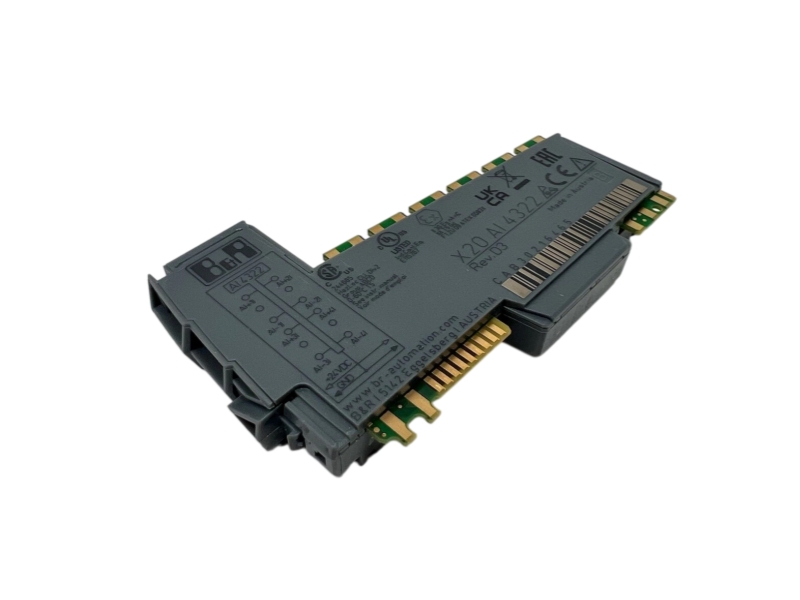

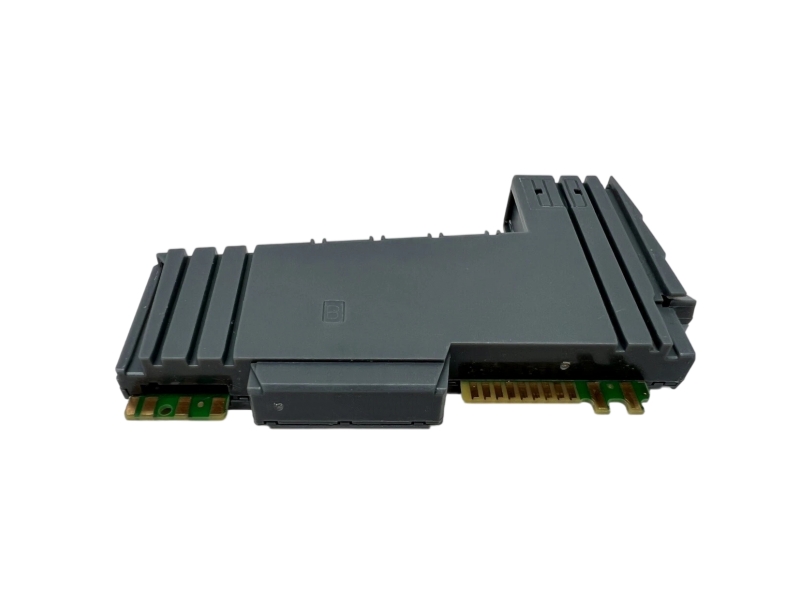

B&R X20AI4322 X20 4-Channel Analog Input Module

B&R / X20 SYSTEM

CURRENT SIGNAL STUDIO

4 DIFFERENTIAL INPUTS

ANALOG INPUT / CURRENT LOOP

X20AI4322

B&R X20AI4322 is a four-channel differential analog input module for 0 to 20 mA and 4 to 20 mA process signals. It brings current-loop measurements into compact X20 automation stations.

MATCH BEFORE ORDERING Order the X20TB12 terminal block and a compatible X20BM11 or X20BM15 bus module separately; confirm the input range, filter setting, common-mode conditions and Automation Studio hardware configuration.

INPUT GROUP 4 differential channels

SIGNAL RANGES 0–20 mA / 4–20 mA

CONVERTER 12-bit SAR

Brand New Original One Year Warranty Rapid response

INQUIRE NOW

OFFICIAL MEASUREMENT DATA

X20AI4322 input, conversion and installation profile

Electrical limits and integration data for confident X20 system selection.

MEASUREMENT STREAMA / 14

01B&R ID code0xCAB3

02Analog inputs4 channels

03Signal ranges0 to 20 mA / 4 to 20 mA

04Input configurationDifferential inputs

05Data typeINT

06Digital value mapping0x0000 to 0x7FFF

07Digit value1 LSB = 0x0008 = 4.883 µA

08Converter resolution12-bit

09Conversion methodSuccessive approximation register

10Conversion time400 µs for all inputs

11Input loadLess than 400 Ω

12Maximum input±50 mA

13Wiring protectionProtected against connection to supply voltage

14Low-pass filter3rd order; 1 kHz cutoff frequency

SYSTEM BOUNDARIESB / 14

15Bus power consumption0.01 W

16Internal I/O consumption1.1 W

17Common-mode rejection70 dB at DC and 50 Hz

18Common-mode range±12 V

19Channel crosstalk-70 dB

20NonlinearityLess than 0.05%

21Channel-to-bus insulation500 Veff

22Electrical isolationInput group isolated from bus; channels not isolated from each other

23Mounting orientationHorizontal or vertical

24Degree of protectionIP20

25Horizontal operation-25 to 60°C

26Vertical operation-25 to 50°C

27Storage and transport-40 to 85°C

28Module pitch12.5 +0.2 mm

FROM LOOP TO LOGIC

How X20AI4322 turns field current into controller data

A restrained process view connects the field signal path with the configuration decisions engineers make.

01CURRENT LOOP

02DIFFERENTIAL INPUT

03FILTER + 12-BIT SAR

04X20 PROCESS DATA

FUNCTION 01

Acquire process-current signals

Four differential channels receive standard current-loop measurements from compatible transmitters and sensors.

FUNCTION 02

Select the measurement range

Each channel can be configured for the documented 0 to 20 mA or 4 to 20 mA signal range.

FUNCTION 03

Convert all inputs together

A 12-bit successive-approximation converter updates the complete input group for deterministic controller processing.

FUNCTION 04

Control measurement noise

A configurable input filter supports stable values when the application can use the required cycle time.

FUNCTION 05

Supervise channel condition

Channel LEDs, module status and software diagnostics help locate wiring or measurement faults during service.

FUNCTION 06

Build a compact X20 slice

The electronic module combines with a separate bus module and 12-pin terminal block in distributed X20 stations.

BUYER REFERENCE

B&R X20AI4322 buyer FAQ

Practical guidance for confident selection, replacement and purchasing decisions.

Can B&R X20AI4322 accept both 0 to 20 mA and 4 to 20 mA transmitters?

Yes. B&R documents both current ranges. Configure the selected range in the hardware configuration and verify that the transmitter wiring and scaling use the same range.

Which base and terminal components are required for B&R X20AI4322?

B&R lists the X20TB12 terminal block and X20BM11 or X20BM15 bus module as separately ordered components. Confirm the installed station design before ordering the electronic module.

Where is B&R X20AI4322 normally used?

It is suited to X20 machine and process I/O stations that collect differential current-loop values from pressure, flow, level, temperature or other compatible transmitters.

Is B&R X20AI4322 discontinued, and is there an official direct successor?

B&R maintains a current product page, data sheet and recent hardware upgrades without a discontinuation notice. The cited product page does not publish a direct successor, so stock and revision are confirmed with the quotation.

What must be checked before replacing an installed B&R X20AI4322?

Match the complete label and hardware revision, bus module, terminal block, configured range, filter setting, wiring, channel scaling and Automation Studio hardware definition before commissioning.

What information should accompany a B&R X20AI4322 manual or quotation request?

Send the module nameplate and revision, installed base and terminal, transmitter range, channel count in use, Automation Studio version, quantity, condition requirement and delivery destination.
