B&R X20AI2222 X20 analog input module

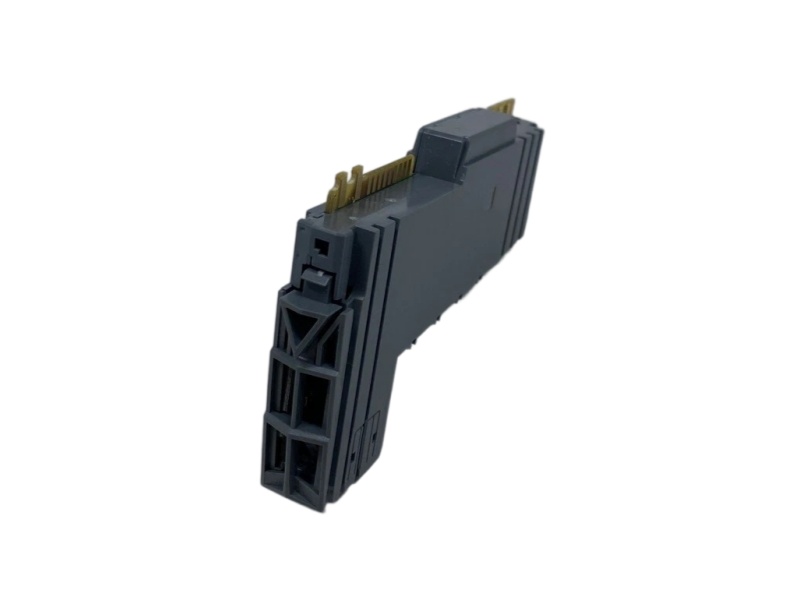

B&R X20AI2222 terminal-side view

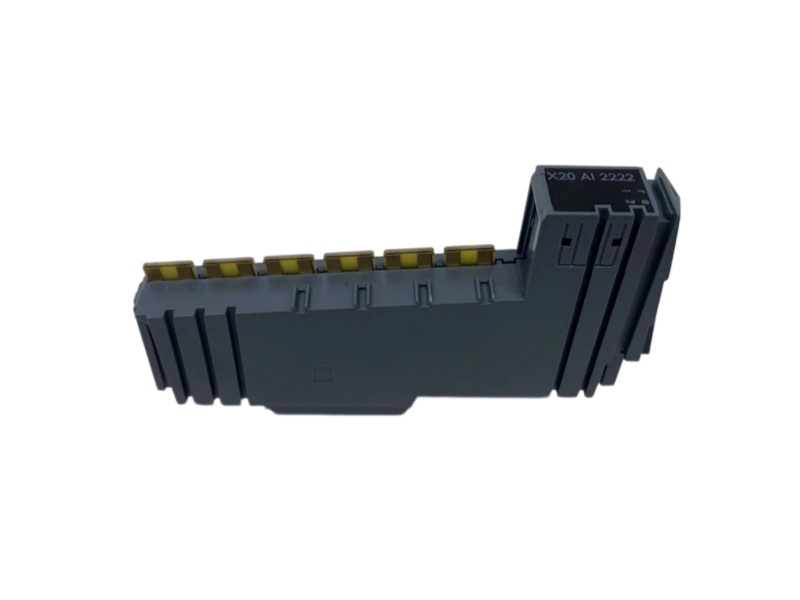

B&R X20AI2222 module view

B&R X20AI2222 X20 2-Channel ±10 V Analog Input Module

PRECISION ANALOG ACQUISITION
B&R X20±10 V INPUT

X20AI2222

B&R X20AI2222 is a 2-channel differential ±10 V analog input module with 13-bit resolution for precise X20 machine and process monitoring.

PRODUCT ENQUIRY

Two channels.
One clean signal path.

Inquire Nowab@mooreplc.com
Brand New Original
One Year Warranty
Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20AI2222
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL TECHNICAL DATA

Precision input specifications

Verified values for selection, engineering and X20 station integration.

B&R ID code0xCAB0
Analog inputs2
Input signal±10 V
Input typeDifferential input
Digital converter resolution13-bit including sign
Conversion procedureSAR
Conversion time300 μs for all inputs
Data typeINT
Input impedance20 MΩ in signal range
Permissible input signalMaximum ±30 V
Input protectionProtected against wiring with supply voltage
Input filterThird-order low-pass, 1 kHz cutoff
Common-mode range±12 V
Common-mode rejection70 dB at DC and 50 Hz
Maximum gain error0.08%
Maximum offset error0.015%
Maximum gain drift0.006%/°C
Maximum offset drift0.002%/°C
Channel crosstalk-70 dB
Nonlinearity<0.025%
Channel-to-bus insulation500 Veff
Bus power consumption0.01 W
Internal I/O consumption0.8 W
Module pitch12.5 +0.2 mm
02SIGNAL JOURNEY

How X20AI2222 turns voltage into control data

Each stage has a clear role, from accepting the field signal to delivering a supervised value to controller logic.

01

Receive

Two differential channels accept bipolar voltage signals within the specified X20 input range and feed them to the conversion stage.

02

Protect

The documented wiring protection and permissible-signal boundary help protect the input stage during field connection errors.

03

Condition

Analog conditioning and configurable digital processing stabilize the measured value before controller evaluation.

04

Deliver

INT data and channel status reach the controller for logic, trending, limit supervision and diagnostic handling.

MACHINE FEEDBACKAcquire bipolar sensor or transducer voltage for closed-loop machine monitoring.
PROCESS OBSERVATIONBring isolated field measurements into an X20 station for controller-side evaluation.
TEST & DIAGNOSTICSTrack analog behavior while channel status identifies abnormal input conditions.
03BUYER QUESTIONS

FAQ for B&R X20AI2222

Signal suitability and X20 hardware pairing
Replacement checks and diagnostic behavior
Documentation and quotation readiness

Direct answers for configuration, replacement, documentation and quotation decisions.

Q01

Can B&R X20AI2222 measure a 4 to 20 mA current loop directly?

No. B&R specifies two differential ±10 V inputs for X20AI2222. A suitable current-input module or an approved signal converter is required for a 4 to 20 mA loop.

Q02

Which bus module and terminal block are used with B&R X20AI2222?

B&R lists X20BM11 or X20BM15 bus modules and X20TB06 or X20TB12 terminal blocks. The bus module and terminal block are ordered separately from X20AI2222.

Q03

How does B&R X20AI2222 report an overrange or interrupted voltage signal?

The official data sheet documents upper-limit, lower-limit and open-circuit monitoring. The digital value supplied during overload is configurable, so the controller logic should evaluate the corresponding status information.

Q04

Is B&R X20AI2222 discontinued, and has B&R announced a direct successor?

The reviewed B&R product page provides current product data and does not state that X20AI2222 is discontinued. It also does not identify a direct successor, so availability and revision should be confirmed with the quotation.

Q05

What must be checked before replacing an installed B&R X20AI2222?

Confirm the two-channel ±10 V differential configuration, terminal wiring, X20 bus module, terminal block, hardware revision and Automation Studio hardware setup before replacement. Do not substitute a current-input variant by model similarity alone.

Q06

Which documents and order details help obtain an accurate B&R X20AI2222 quotation?

Request the official X20AI2222 data sheet and X20 System user's manual, then provide a clear nameplate photo, hardware revision, installed base and terminal block, quantity, destination and required delivery date.

04
PEOPLE BEHIND THE WORK

Professional Team

Model identification, compatibility review and sourcing support from enquiry through delivery.

TEAM 01

Nearly 10 Years of Industry Experience

Our team members have an average of more than 10 years of industry experience. We have worked with customers worldwide, including those from India, Germany, Sweden, Italy, Russia, Venezuela, Israel, and many other countries. Throughout our careers, we have collectively completed over 3,000 orders and established long-term business relationships with customers across nearly 30 countries.

TEAM 02

Professional Product Judgment

We can often identify a product’s manufacturer, series, configuration, and function from its model number or nameplate photo. We also understand how revisions, firmware, and specifications affect compatibility and whether an alternative model can be used safely.

TEAM 03

In Practice

An Indian customer urgently needed a discontinued control module after several suppliers reported no stock. We identified its exact revision and function from the nameplate, checked compatible alternatives, and contacted factory and warehouse channels to locate matching inventory. After installation, the customer confirmed that the module operated correctly and later asked us to source additional spare parts.

TEAM 04

Sincere and Patient Service
