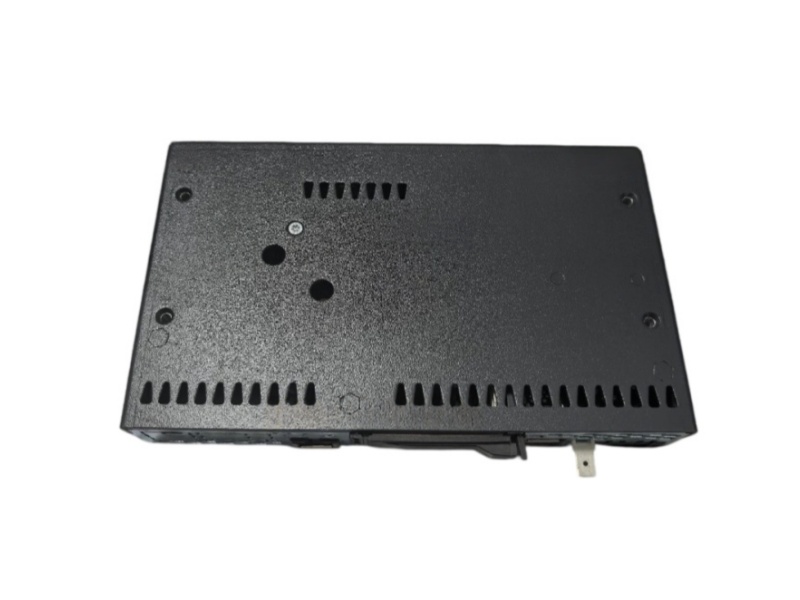

5PPC2100.BY44-000 front view

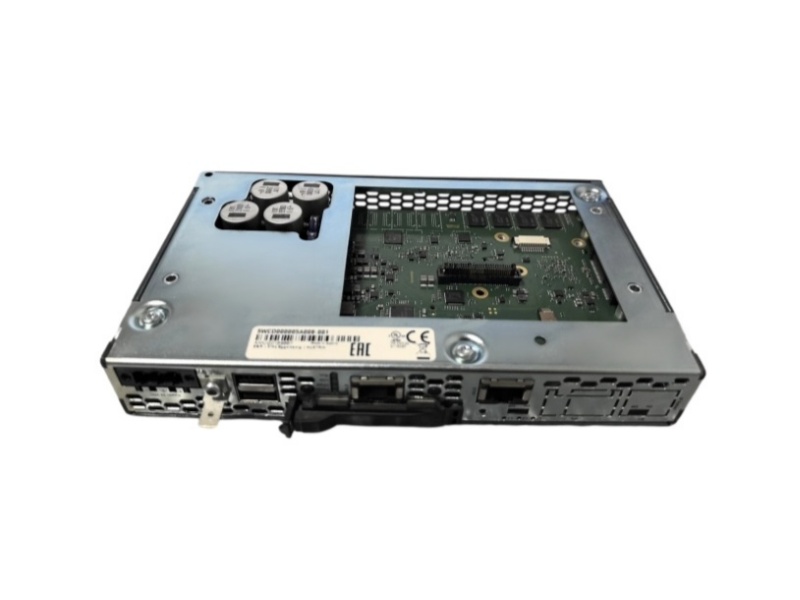

5PPC2100.BY44-000 side view
5PPC2100.BY44-000 product detail

B&R 5PPC2100.BY44-000 Panel PC 2100 System Unit

B&R / PANEL PC SYSTEM UNITOFFICIAL DATA

5PPC2100.BY44-000

B&R 5PPC2100.BY44-000 is a fanless Intel Atom Panel PC designed for compact HMI, machine visualization, and operator control.

✓In Stock
✓One Year Warranty
PRODUCT ENQUIRYInquire Now↗
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5PPC2100.BY44-000
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL PANEL PC DATA

Processor, memory & interface specifications

B&R values arranged for compute platform, storage, networking, electrical supply and physical integration.

ProcessorIntel Atom E3845
Clock frequency1910 MHz
Processor cores4
Processor architecture22 nm
Thermal design power10 W
L2 cache2 MB
System memory4 GB DDR3 SDRAM
Memory speedDDR3L-1333
Memory interfaceSingle channel
GraphicsIntel HD Graphics
Maximum graphics frequency792 MHz
Maximum color depth32-bit
DirectX support11
OpenGL support4.0
BootloaderUEFI BIOS
ChipsetIntel Bay Trail
Power managementACPI 4.0
CFast slots1 SATA II slot
Ethernet ports2 shielded RJ45
Ethernet speed10/100/1000 Mbit/s
USB ports1 USB 3.0 and 1 USB 2.0
USB current capacityMaximum 1 A per connection
Interface option slots1
Nominal voltage24 VDC ±25%
Nominal current3.5 A
Maximum inrush current10 A for <300 µs
Power-failure buffer10 ms
CoolingPassive via housing
Rear protectionIP20
Real-time clock accuracyTypically 12 ppm at 25°C
RTC retentionTypically 400 h; minimum 200 h
Automation Studio supportUp to V4.12
B&R ID code0xE54B
Maximum operating elevation3000 m, component-dependent
Product dimensions190 x 115 x 29.7 mm
Weight577 g
02
FROM PANEL TO CONTROL

Visualization compute roles & machine use

Fanless processing, display integration, removable storage and networked HMI operation.

A

Compute

Execute HMI and compatible automation workloads on the quad-core platform.

B

Render

Drive panel graphics through the integrated Intel display engine.

C

Store

Boot and retain application data on an industrial CFast medium.

D

Network

Separate machine and plant connectivity across two Ethernet ports.

03
PURCHASING CLARITY

5PPC2100.BY44-000 FAQ

Procurement guidance for system-unit compatibility and image preservation.

Q01

Which display families are mechanically intended for B&R 5PPC2100.BY44-000?

The official configuration identifies Automation Panel 923, 933 and 1000 families; verify the exact panel assembly and mounting hardware before purchase.

Q02

How should the operating image for B&R 5PPC2100.BY44-000 be preserved during service?

Clone or back up the approved CFast medium and record BIOS settings, licenses, drivers and application versions before exchanging the system unit.

Q03

What workloads suit B&R 5PPC2100.BY44-000 in an operator station?

It is designed for fanless HMI and compatible automation tasks that benefit from multi-core processing, local graphics and two network paths.

Q04

How can buyers verify that B&R 5PPC2100.BY44-000 is ready for dispatch?

Request current label photographs, power-on or BIOS evidence, memory confirmation, interface-option details, storage inclusion and tested condition.

Q05

Why is a BY44 replacement review necessary for B&R 5PPC2100.BY44-000?

Other PPC2100 executions can differ in memory, panel family or mechanical variant, so the complete suffix, cooling path and panel connection must match.

Q06

What documentation package should be requested with B&R 5PPC2100.BY44-000 pricing?

Ask for the Panel PC 2100 built-in device manual and provide the panel label, BIOS release, CFast image needs, option card, quantity and destination.
