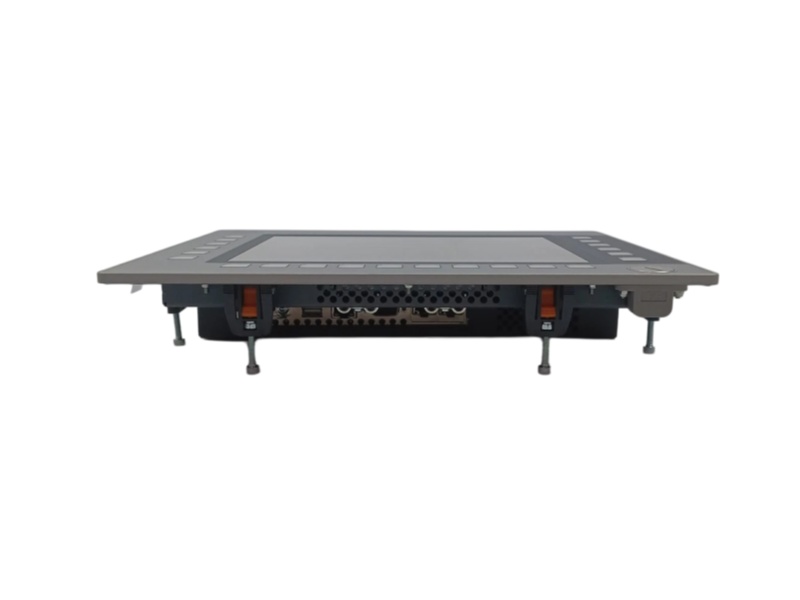

B&R 5PP580.1043-00 Power Panel 580 front view

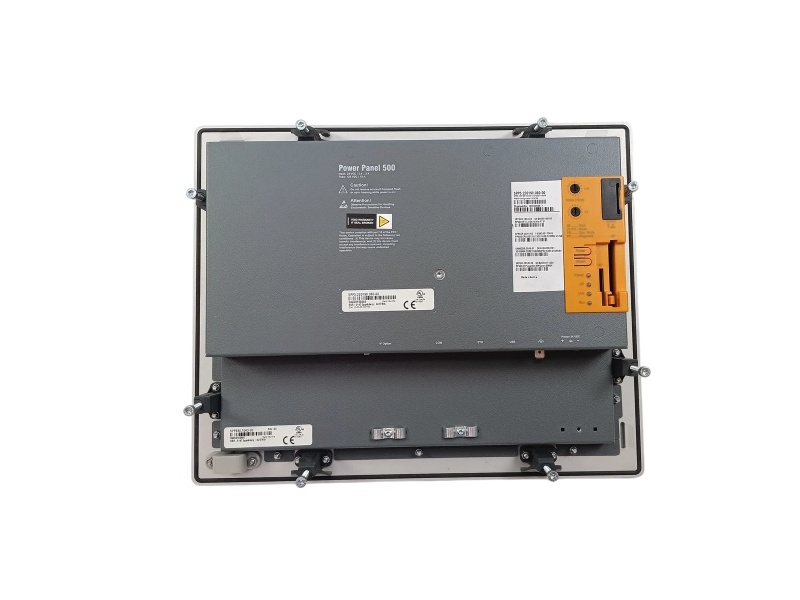

B&R 5PP580.1043-00 operator panel detail
B&R 5PP580.1043-00 HMI product image

B&R 5PP580.1043-00 Power Panel 580 10.4-inch Touch Operator Panel

B&R POWER PANEL 500

5PP580.1043-00

B&R 5PP580.1043-00 combines a 10.4-inch VGA touch display, illuminated function keys and industrial PC interfaces in a fanless operator panel for machine visualization and control.

10.4 inTFT display
640 x 480VGA resolution
22Function keys
IP65Front protection
+Integrity Supply+One Year Warranty+Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5PP580.1043-00
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL POWER PANEL DATA

Power Panel display, interface and enclosure data

Verified B&R engineering data.

Product familyPower Panel 500
Panel designationPower Panel 580
Display technologyTFT color display
Display diagonal10.4 inches
Display resolutionVGA, 640 x 480 pixels
Display colors16 million
Display brightness22.5 to 450 cd/m²
Contrast ratio700:1
Backlight service life50,000 h to half brightness
Touch screenAnalog resistive
Function keys22, each with LED
Status LEDsPower, CF, Link and Run
Input voltage24 VDC ±25%, SELV
Rated input current1.2 A
Power consumption28.5 W
Electrical isolationYes
Power-failure buffer10 ms
Working memoryDDR2, maximum 2 GB
Graphics controllerIntel Graphics Media Accelerator 500
Firmware interfaceBIOS
Ethernet controllerIntel 82574
Ethernet connectionShielded RJ45
Ethernet transfer rate10/100/1000 Mbit/s
Serial interfaceRS232, 9-pin DSUB male
RS232 transfer rateMaximum 115.2 kbit/s
USB interfaces3 x USB 2.0
USB currentMaximum 1 A per connection
Removable storageCompactFlash Type I and SD card
Battery technologyLithium-ion, removable
Battery capacity950 mAh
Battery service life4 years
Front protectionIP65
Rear protectionIP20 under specified conditions
Operating temperature0 to 55°C
Storage temperature-20 to 60°C
Transport temperature-20 to 60°C
Dimensions323 x 260 x 59.7 mm
Weight2,650 g
B&R ID code0xB606
Mounting orientationAs specified in the installation data
02
DISPLAY AND CONTROL

Operator interface path from panel to machine

Clear operator-station integration.

01

Visualize

Present process values, alarms and machine states on the integrated color touch display.

02

Operate

Use the illuminated function keys and touch surface for clear, local operator actions.

03

Connect

Exchange controller and service data through the built-in network, serial and USB interfaces.

04

Maintain

Use removable storage and front-panel indicators to support commissioning and service work.



Machine HMI

Operator control and visualization on compact production machinery.



Local diagnostics

Front-of-machine access to status, alarms and service information.



Recipe and data handling

Removable media support for approved application and service workflows.

03
PRODUCT-SPECIFIC GUIDE

5PP580.1043-00 questions answered

Practical lifecycle guidance.

Q

How should the assembled PC configuration be checked for B&R 5PP580.1043-00?

Confirm the installed system unit, memory, storage media and interface board against the machine image and the original bill of material before replacement.

Q

Which power connector must be ordered for B&R 5PP580.1043-00?

B&R lists 0TB103.9 or 0TB103.91 as separately ordered 24 V connection options; verify the terminal style required by the cabinet wiring.

Q

Where does B&R 5PP580.1043-00 fit best in a machine architecture?

It suits local visualization and operator control where a touch panel, illuminated keys and industrial PC connectivity are required at the machine.

Q

What should be preserved when migrating storage on B&R 5PP580.1043-00?

Back up the approved application image, licenses and configuration, then confirm the CompactFlash or SD media type supported by the installed software release.

Q

How is present supply for B&R 5PP580.1043-00 confirmed?

The public product page documents the configuration but does not guarantee current stock; request a dated quotation for condition, availability and lead time.

Q

Which records help obtain the correct B&R 5PP580.1043-00 manual and quotation?

Provide the complete model, product label, installed accessories, required condition and destination so the documentation and offer match the actual panel configuration.
